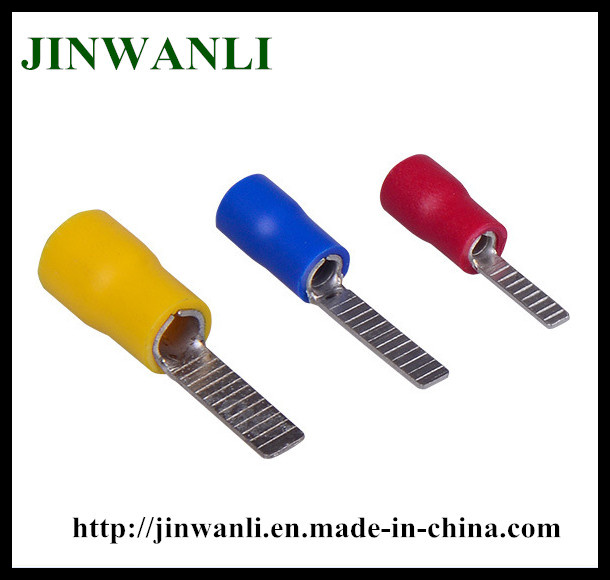

Dbv Chip Shaped Crimp Pre-Insulated Connectors and Terminals Lug

Name: Dbv Chip Shaped Crimp Pre-Insulated Connectors and Terminals Lug
Brand: all-electronics-online.com
SKU: 764583475
Availability: InStock
Rating: 4.9 (23 reviews)

Price:	US $ 0.011/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single Hole Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Brand:	Jwl

Product Description

Details:
1.Material:copper and PVC
2.Size of cable: 0.5~6mm2
3.Max. Current: 19A, 27A, 48A
4.Various wire range
5.Made by high purity copper

Insulated Terminal Size

Size of cable: 0.5~1.5mm2 (A.W.G 22~16) Max. Current=19A
Item No .	Dimension (mm)					Color
Item No .	L	FØ	E	DØ	dØ	Color
DBV 1.25-10	2.3	20	10	4.3	1.5	Red
DBV 1.25-11	3	21	11
DBV 1.25-14	3	24	14
DBV 1.25-18	2.3	28	18

Size of cable: 1.5~2.5mm2(A.W.G 16~14) Max. Current=27A
Item No .	Dimension (mm)					Color
Item No .	L	FØ	E	DØ	dØ	Color
DBV 2-10	2.8	20	10	4.9	2.4	Blue
DBV 2-18	2.3	28	18	4.9	2.4	Blue

Size of cable: 4~6mm2 (A.W.G 12~10) Max. Current=48A
Item No .	Dimension (mm)					Color
Item No .	L	FØ	E	DØ	dØ	Color
DBV5.5-10	2.8	22.5	10	6.7	4	Yellow

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
