DC 12V Gear Motor for Game Consoles Vending Machines

Name: DC 12V Gear Motor for Game Consoles Vending Machines
Brand: all-electronics-online.com
SKU: 726629922
Availability: InStock
Rating: 4.3 (128 reviews)

Price:	US $ 2.58-3.18/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SLCL12RP
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brush
Brand:	Mada

Product Description

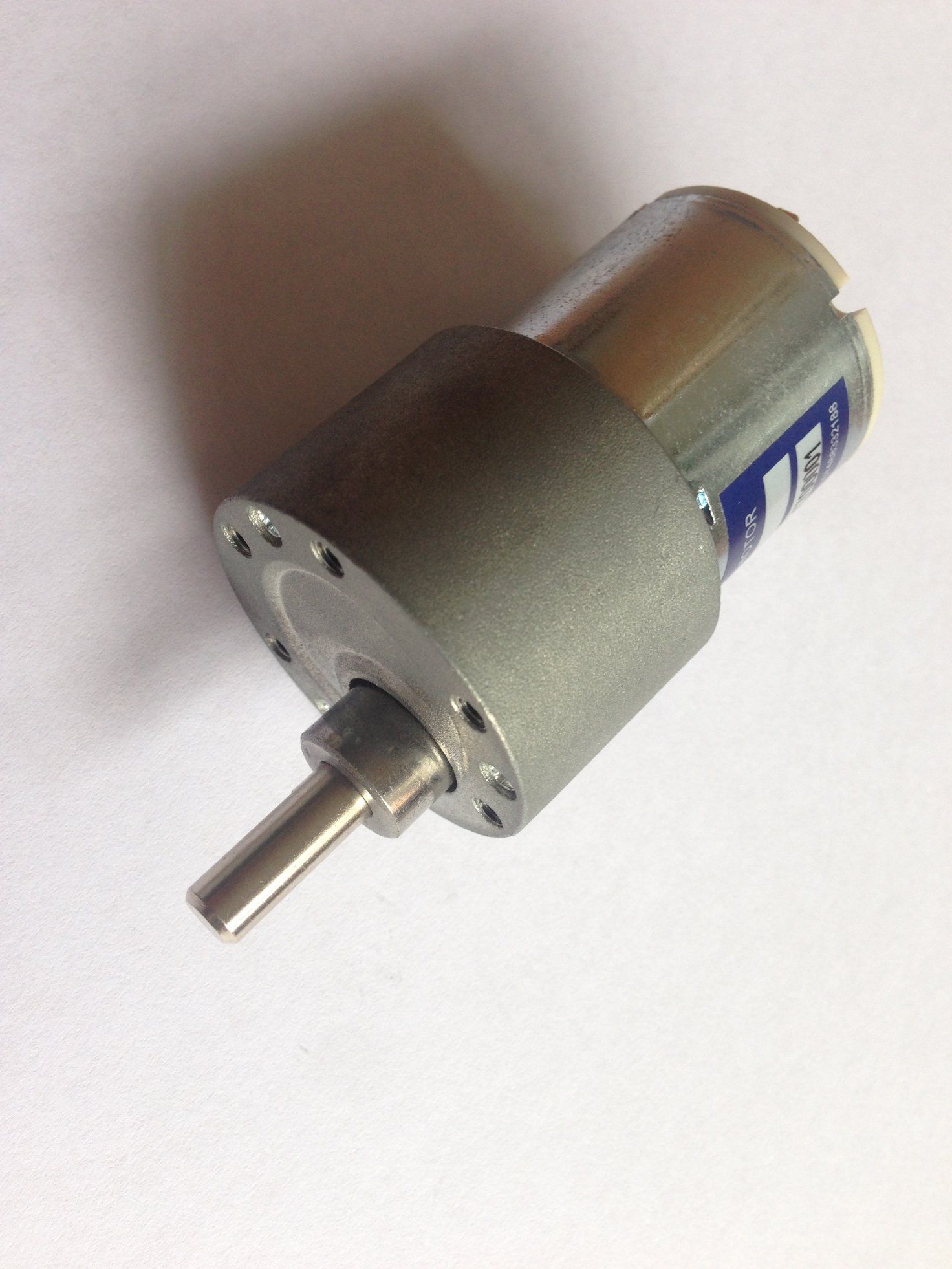

37mm 10rpm 60rpm 100rpm 12v dc gear motor for vending machine

working voltage: 3-24vdc
gear ratio: 1:6,1:10,1:20,1:30,1:40,1:60,1:90,1:100,1:120,1:180,1:360,1:540,1:810,1:1920,1:2430
speed range: 1-1000rpm
torque: 0-30kg.cm
application: towel dispensers, soap dispensers,grill,vending machines,office equipment, medical equipment,household appliancesetc...

1. Specification:

Motor name	Rated volt.v	No load		Load torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Gearbox
		mA	r/min	mA	r/min	kg ·cm	W	kg· cm	L(mm)
SLPM33-123000-30k	12	≤20	100	≤110	73	0.8	0.6	2	22
SLPM33-123000-60k	12	≤20	50	≤110	36	1.4	0.5	4	25
SLPM33-123000-90k	12	≤20	33	≤110	24	2.1	0.5	6	25
SLPM33-123000-180k	12	≤20	16	≤110	12	4.2	0.5	12	27
SLPM33-123000-270k	12	≤20	11	≤110	8	6.3	0.5	18	27
SLPM33-123000-540k	12	≤20	5.5	≤110	4	10	0.4	30	29

Motor name	Rated volt.v	No load		Load torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Gearbox
		mA	r/min	mA	r/min	kg ·cm	W	kg· cm	mm
SLPM33-123000-810k	12	≤20	3.7	≤110	3	10	0.3	30	29
SLPM33-123000-1620k	12	≤20	1.8	≤110	1.6	10	0.2	30	29
LSPM33-123000-2430k	12	≤20	1.2	≤110	1.1	10	0.1	30	29

Note: It's the typical specificaitoin for reference only, Motor's votage speed, ratio, torque and shaft can be customzied after evaluation(Voltage can make from 3-12v, speed from 10 to 3000rpm, ratio from 1: 1000, toruqe from 10 to 1000g.cm)
Please tell me your requirement if can not find suitable motor.
