DC 12V RF Touch Panel LED Dimmer RGBW Remote Controller

Name: DC 12V RF Touch Panel LED Dimmer RGBW Remote Controller
Brand: all-electronics-online.com
SKU: 805897725
Availability: InStock
Rating: 5 (99 reviews)

Price:	US $ 6.9-7/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-TOUCH-MB04
Net Weight:	128g
Gross Weight:	187g
Output:	4 CMOS Open Drain Output
Output Current:	<4A(Each Circuit)
Connection Mode:	Common Anode
Application:	Audio / Video Players
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Type:	Touch Panel
Voltage:	DC12V~24V

Product Description

Basic Info

Place of origin:	Shenzhen,china
output:	4 CMOS Open drain Output
output currant:	<4A(each circuit)
Output Power:	12V:<192W, 24V:<384W
Static power consumption :	<1W
Connection mode:	Common anode
Gross weight:	187g
Supply Voltage:	DC12V~24V

Product Description
Summarization:

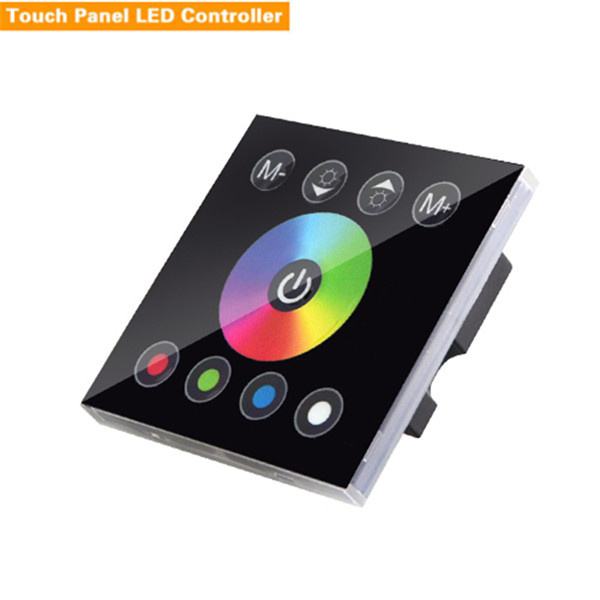

Touch panel controller is a new high-end controller which newly developed by our company.
It adopts glass panel design, is beautiful and fashionable in appearance.
It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake.
It is used for controlling a variety of lamp whose source of light is LED.
For instance, point source of light,flexible light strip, wall washer lamp, panel lights etc.
it has many advantages such as convenient to connect, easy to use and others.
According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Technical Parameters:
working temperature: -20-60 degree
supply voltage: DC12-24V
output: 4 channels
connection mode: common anode
external dimension: L86 Χ W86 Χ H37 mm
packing size: L90 Χ W90 Χ H40 mm
net weight: 128g
gross weight: 187g
static power consumption: <1W
output current: <4A( each channel )
output power: 12V<192W,24V<384W

Our Services
1.Reply your inquiry in 12 hrs
2.Any professional question would get a professional answer.
3.ODM/OEM is accept.
4.All products offer CE&ROHS&FCC Approved,2 years warranty.
5.Product damaged in non-human factors would be replaced freely.
Trade terms
1. Payment: T/T, Paypal available.
2. Lead time: Normally 3~5 working days.
3. Samples can be delivery within 2~3 working days.
4. Shipping cost are quoted according to your requirement.
5. Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc.
6. MOQ:small order is available.

Package&Shipping

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
