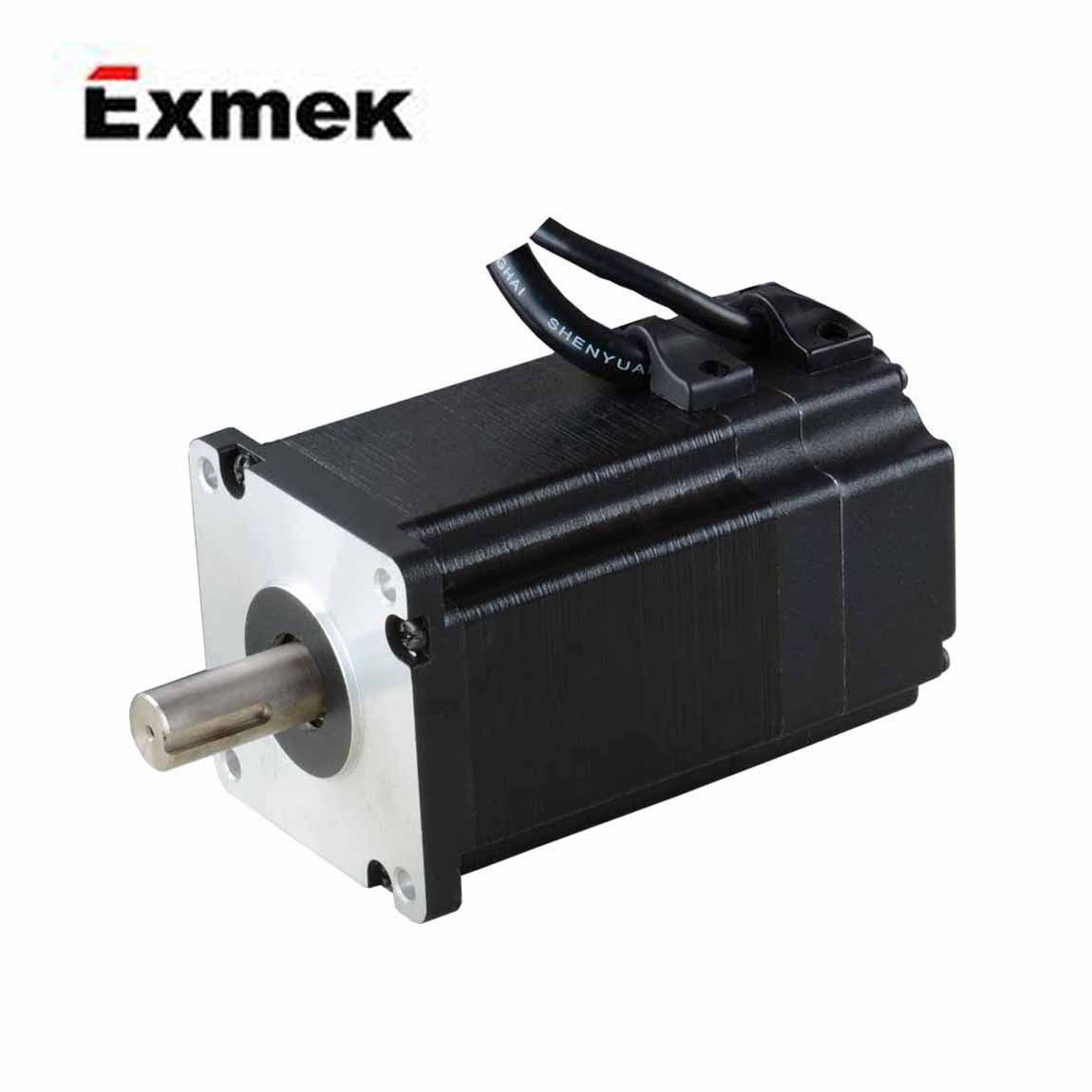

DC Brushless Servo Motor with 48V 470W (ME070AS300)

Name: DC Brushless Servo Motor with 48V 470W (ME070AS300)
Brand: all-electronics-online.com
SKU: 828276495
Availability: InStock
Rating: 4.3 (85 reviews)

Price:	US $ 87.4/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ME070AS300
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	Ce
Brand:	Exmek

Product Description

General information

8 poles with three phase
12 slots design for low cogging
Insulation class B, higher insulation class on request
Sintered Neo Magnet
Multiple lines of encoder available

Specifications

Specification	ME070AS300
Supply voltage (reference)	48V DC
Rated continuous torque	1.5Nm
Rated speed at cont torque	3000rpm
Rated continuous stall current	15.41A
Rated continuous output power	470W
Rated peak torque	4.5Nm
Rated peak current	43.72A
Torque constant	0.1089Nm/A
Ke (voltage constant)	11.4V/krpm
Terminal resistance	0.19Ω
Inductance	0.45mH
Insulation class	B
Rotor inertia	1.10E-04kg.m²
Weight	2.8kg
Length	148mm

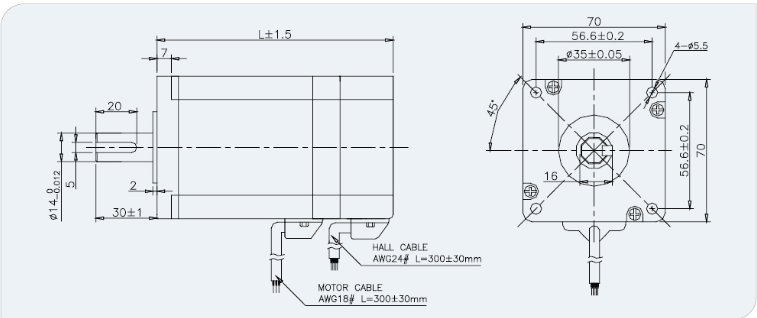

Mechanical

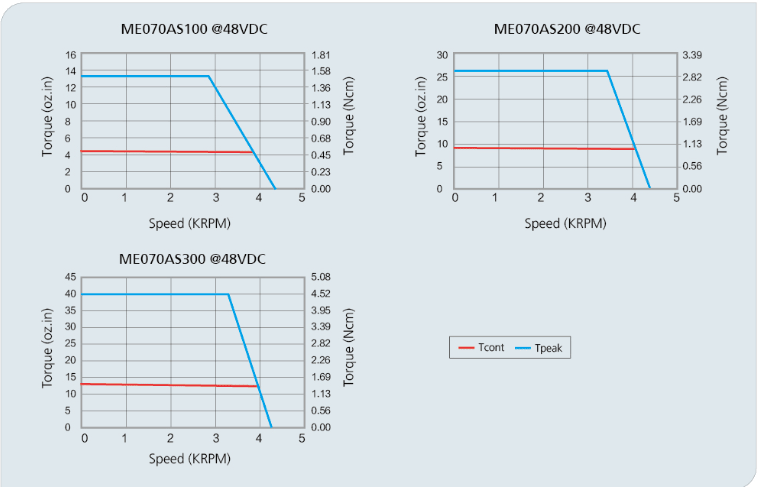

Characteristic diagram

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
