| Prod Model: |
XW-48V-24V-240W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable For Use: |
Household/Outdoor |
| Waterproof: |
Yes |
| Colour: |
Sliver |
| Gw Of One Carton: |
17kg |
| Carton: |
50PCS |
| Carton Size: |
61*25.5*26cm |
| Protection Function: |
Yes |
| Type: |
DC 48V to DC 24V |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
201 - 300W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Input Voltage: |
DC48V |
| Brand: |
DOXIN |
Product Description

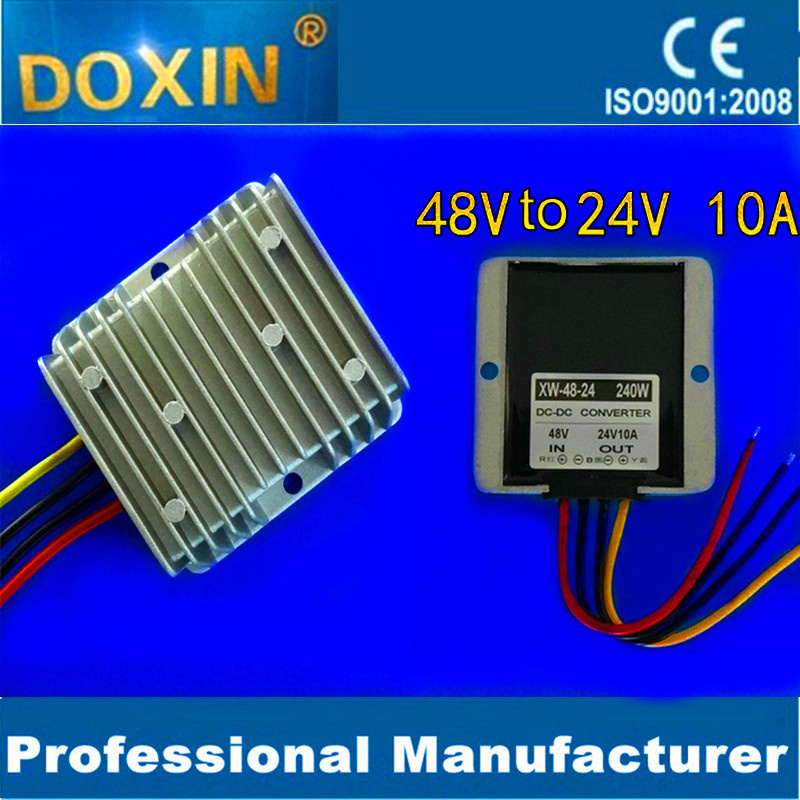

DC 48V to DC 24V 10A DC-DC converter module
Model: XW-48-24-240W
Our products are widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields. If you can not find a suitable model, our technical engineers will be based on your actual needs, corresponding to the rapid power solutions. I hope that we can become a long-term partners.
1. Data
Input voltage: 48V
Input voltage range: Wide 37V-60V
Output voltage: 24V
Ouput current: 10A
Max current: 20A
All-epoxy sealed containers, Waterproof
Light compact, convenient to use and transport
Efficiency: > 93%
Temperature at -40-+85
Protection function: With overload / over-current / low voltage protection (some of the products have the protection of plus or minus reverse), stable performance
Customized/OEM is available
Weight: 0.29kg/PCS
Size(L*W*H ): 74*74*32MM
Plastic shell encapsulation
2. Features
1) All epoxy sealed containers with Waterproof Housing;
2) Light compact, convenient to use and transport;
3) Non-isolated;
4) Epoxy potting, seismic, water, moisture, dust, long term stable and reliable quality;
5) thin, small size, high efficiency, easy installation. Aluminum alloy Shell waterproof, quality is stable and reliable.
6) Using thermal silicone sealant (effect is better than epoxy resin)
7) Sufficient power, synchronous rectifier, imported brands for main components;
8) Warranty: One year
9) Aluminum shell encapsulation
3. Note
1. Please let us know what kind of model, colour you need and quantity
2. We make invoice for you
3. Please check and confirm the Invoice
4. Once we confirmed the order, please pay it soon
5. After payment, all goods will be sent to you in 2-3days as usual.
4. Description
All epoxy sealed containers are covered by waterproof housing. Being light compact, convenient to use and transport, it is reliable with the max heat dissipation of 40 degree celsius. It can be recovery automaticly with the advantages of overload / over-current / over / low voltage protection, stable performance. This is easy to fit and 100% brand new. All trademarks and copyrights are the property of their respective owners.
5. Protection function
Overload protection
Over-current protection
Over / low voltage protection
Stable performance
Automatic recovery work
Fully waterproof potting
Ripple: 40MV
Working temperature: -40 to +85 (industrial grade temperature)
Widely used in LED car display, GPS navigation, MP3, MP4, car DVD, hard disk player, stereo, power is the best choice for vehicle equipment
Wiring as follows: Input: Red (+) Black (-)
Output: Yellow (+) Black (-)
6. Application
Suitale for the appliances such as: Car alarm, radio, walkie-talkie, motors, audio, GPS navigation, navigation, surveillance, LED display screen, automotive air conditioning, photovoltaic energy, electric fans, solar energy, solar energy, DVD, LED lights, motors, pumps, industrial electrical equipment and so on.
7. Package contents
1PC X DC DC Converter
8. Parameters
1. Cynchronous rectification, conversion rate is 90% with very low heat.
2. Auto protect over voltage, over current, over temperature, short circuit, can work in normal condition when restored.
3. Output ripple: 50mV (MAX) 20M bandwidth
4. Working temperature: (-40 -80 ) when it is more than 40, please make lower power, or enhance heat dissipation
5. Full load temperature rise: 50
6. Load regulation: ± 1%
7. Voltage regulation rate: ± 2%
8. Minimum pressure: 2V
9. Aluminum Shell
| Step down converter DC 36V/48V/60V to DC 12V/24V (Waterproof function) |
| 36V to 12V 10A converter | 120W | XW-36-12-120W | 36V | 24-48V | 12V | 10A | 20A | 290g/pcs | 74*74*32MM |
| 36V to 12V 15A converter | 180W | XW-36-12-180W | 36V | 12V | 15A | 25A | 290g/pcs | 74*74*32MM |
| 36V to 24V 3A converter | 72W | XW-36-24-72W | 36V | 26-47V | 24V | 3A | 6A | 300g/pcs | 74*74*32MM |
| 36V to 24V 5A converter | 120W | XW-36-24-120W | 36V | 24V | 5A | 10A | 300g/pcs | 74*74*32MM |
| 36V to 24V 10A converter | 240W | XW-36-24-240W | 36V | 24V | 10A | 20A | 300g/pcs | 74*74*32MM |
| 36V to 24V 15A converter | 360W | XW-36-24-360W | 36V | 24V | 15A | 25A | 300g/pcs | 74*74*32MM |
| 48V to 12V 10A converter | 120W | XW-48-12-120W | 48V | 30-60V | 12V | 10A | 20A | 290g/pcs | 74*74*32MM |
| 48V to 12V 15A converter | 180W | XW-48-12-180W | 48V | 12V | 15A | 25A | 290g/pcs | 74*74*32MM |
| 36V48V to 24V 1A converter | 24W | XW-3648-24-24W | 36V48V | DC30-58V | 24V | 1A | 1A | 53g/pcs | 46*32*18MM |
| 36V48V to 24V 1.5A converter | 36W | XW-3648-24-36W | 36V48V | 24V | 1.5A | 1.5A | 53g/pcs | 46*32*18MM |
| 36V48V to 24V 2A converter | 48W | XW-3648-24-48W | 36V48V | 24V | 2A | 2A | 53g/pcs | 46*32*18MM |
| 48V to 24V 3A converter | 72W | XW-48-24-72W | 48V | 37-60V | 24V | 3A | 6A | 300g/pcs | 74*74*32MM |
| 48V to 24V 5A converter | 120W | XW-48-24-120W | 48V | 24V | 5A | 10A | 300g/pcs | 74*74*32MM |
| 48V to 24V 10A converter | 240W | XW-48-24-240W | 48V | 24V | 10A | 20A | 300g/pcs | 74*74*32MM |
| 48V to 24V 15A converter | 360W | XW-48-24-360W | 48V | 24V | 15A | 25A | 300g/pcs | 74*74*32MM |
| 60V to 12V 10A converter | 120W | XW-60-12-120W | 60V | 20-72V | 12V | 10A | 15A | 290g/pcs | 74*74*32MM |
| 60V to 24V 3A converter | 72W | XW-60-24-72W | 60V | 40-72V | 24V | 3A | 5A | 290g/pcs | 74*74*32MM |
| 60V to 24V 5A converter | 120W | XW-60-24-120W | 60V | 24V | 5A | 8A | 290g/pcs | 74*74*32MM |
| 60V to 24V 10A converter | 240W | XW-60-24-240W | 60V | 24V | 10A | 15A | 290g/pcs | 74*74*32MM |
