| Prod Model: |
DC48-2410 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
DC48-2410 |
| Warranty: |
1 Year |
| Model: |
DC DC Converter |
| Input Voltage: |
48VDC |
| Output Voltage: |
12V/24V/48V |
| Output Current: |
10A/15A/20A/60A |
| Efficiency: |
>85% |
| Type: |
DC/DC Inverters |
| Output Power: |
101 - 200W |
| Nature Of Wave String: |
Sine Wave Inverter |
| Nature Of Source Flow: |
Passive inverter |
| Circuit Topologies: |
Full-Bridge Type |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Brand: |
Samyang |
| Phase: |
Single |
| Power Source: |
Electric Power |
Product Description

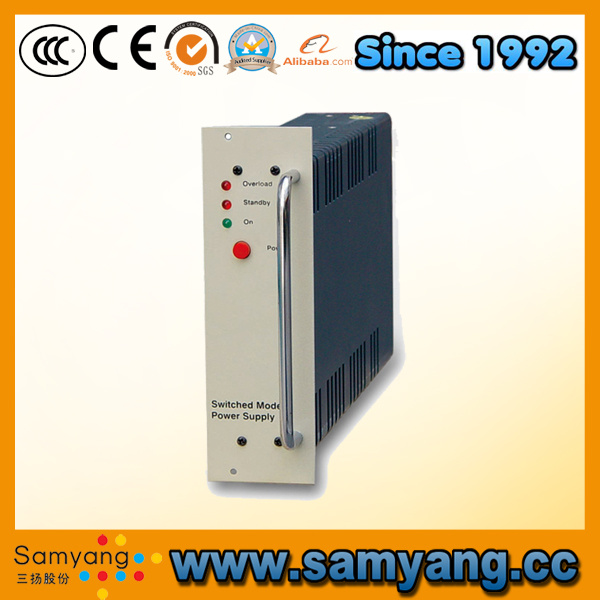

DC DC Converter power voltage stabilizer 48V 24V
1.Specifications:
1.2.1. Ambient temperature for working:-10OC—500C
1.2.2.Input voltage Range: 40VDC—60VDV
1.2.3. Output voltage: 24V±0.2V
1.2.4. Source effect: ≤5×10-3
1.2.5. Load effect: ≤5×10-2
1.2.6. Ripple & Noise voltage: <100mv(p-p)
1.2.7. Efficiency: >85%
1.2.8. MTBF: ≥50000H
1.2.9. Input over-voltage protection: 61-65V
1.2.10.Output current :10A/15A/20A/60A
1.211. Dimension:59×190×305 mm
1.2.13.Input short of voltage protection: 39V±1V
1.2.14.Output over-voltage protection: 16.5V±1V
1.2.15.Working mode: whole day working under rated current
1.2.16.Over current protection: constant current, recover to work automatically
2. Front and back panel drawings:
3.PART THREE SCHEMATICS
Other items about DC DC converter for trunking system (can parallel connection):
1.1 years warranty,by replace/repair/free spare parts for bulk order.
Within the first year, if you need any spare parts for replacement, we can provide to you without paid. And we will offer lifelong technical support and service.
2. Considering the expensive shipping cost for you,broken rectifier is no need to send back to China, just let us know the problem through a video or a picture, then,we will send the replacement to you immediately.
About Payment
1. Payment by TT/,Paypal, Western Union,Money Gram will be acceptable.
Please note: Our trade term is EXW,so the price is not includeing the shipping cost).
2. Before you make payment, please make sure for everything for the products you are going to buy. (Packing, color, specification etc).
About shipping
1. Shipping way: Fedex,UPS,DHL, EMS, TNT, China POST, customer can choose the shipping way by themselves.
2. Before shipping we will pack the goods well in case for damage and for the shipping time depends on which shipping way you choose and the courier company and local customs, duties, thank you for your understanding in advance.
|
Ambient temperature for working |
-10OC_50OC |
|
Input voltage Range |
40VDC_60VDV |
|
Output voltage |
13.8V±0.2V |
|
Source effect |
≤5×10-3 |
|
Load effect |
≤5×10-2 |
|
Efficiency |
≥80% |
|
Ripple & Noise voltage |
<100mv(p-p) |
|
Efficiency |
>85% |
|
MTBF |
≥50000H |
|
Input over-voltage protection |
61-65V |
|
Output current |
10A/15A/20A/60A |
|
Dimension |
59×190×305mm |
|
Weight |
3kg |
|
Input short of voltage protection |
39V±1V |
|
Output over-voltage protection |
16.5V±1V |
|
Working mode: |
whole day working under rated current |
|
Over current protection |
constant current, recover to work automatically |
