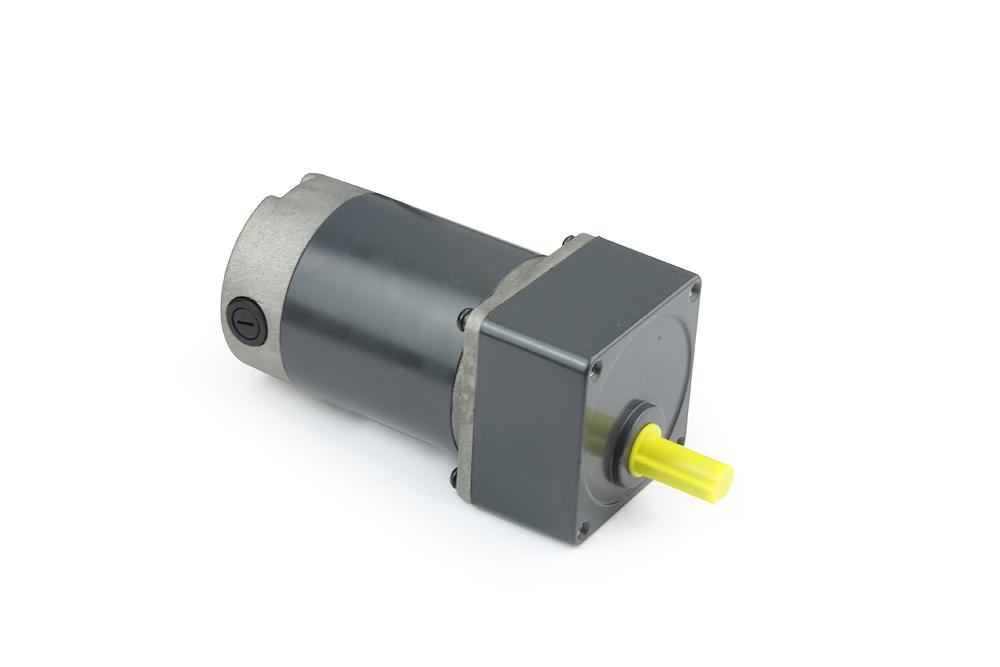

DC Gear Motor for Automated Assembly Line

Name: DC Gear Motor for Automated Assembly Line
Brand: all-electronics-online.com
SKU: 774616375
Availability: InStock
Rating: 4.9 (104 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DC2GN6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	12V,24V,90V
Speed:	16-1600rpm
Torque:	0.04-2.4nm
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	CE,Rosh
Brand:	Longway

Product Description

DC gear motor,

Typical Applications: Complete sets of transmission equipment,Automated
assembly line, Printing machinery, Packaging machinery

motor specification:

MODEL	VOLTAGE	POWER	NO LOAD		LOAD			BRUSH LIFE	MOTOR WEIGHT
	VOLTAGE	POWER	SPEED	CURRENT	SPEED	TORQUE	CURRENT	BRUSH LIFE	MOTOR WEIGHT
	V	W	RPM	A	RPM	kg.cm	A	H	kg
DC2GN6-12	12	6	3200	0.6	2950	0.2	0.8	3000	0.6
DC2GN6-24	24	6	3200	0.3	3950	0.2	0.5	3000	0.6
DC2GN6-90	90	6	3000	0.2	2800	0.2	0.3	3000	0.6
DC2GN10-12	12	10	3200	1	2800	0.35	2	3000	0.7
DC2GN10-24	24	10	3300	0.5	3000	0.35	0.9	3000	0.7
DC2GN10-90	90	10	3200	0.3	2800	0.35	0.6	3000	0.7

Model	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60
DC2GN6-24DC2GN10-24	Output Shaft Speed(rpm)		1067	889	640	533	427	356	320	256	213	178	160	128	107	89	80	64	53
DC2GN6-24DC2GN10-24	Allowable Torque	kg.cm	0.44	0.53	0.74	0.89	1.11	1.33	1.48	1.85	2.22	2.66	2.68	3.33	4	4.8	5.34	6.67	7.24

Model	Reduction Ratio		75	90	100	120	150	180	200
DC2GN6-24DC2GN10-24	Output Shaft Speed( rpm)		43	36	32	27	21	18	16
	Allowable Torque	kg.cm	9.04	10.85	12.06	14.47	18.09	21.71	24.12

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
