DC Gear Motor for Garbage Disposers

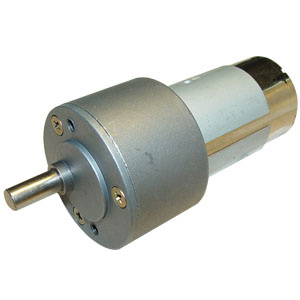

Name: DC Gear Motor for Garbage Disposers
Brand: all-electronics-online.com
SKU: 736155155
Availability: InStock
Rating: 4.8 (110 reviews)

Price:	US $ 9.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS545-50SPG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Moto Dia:	36mm
Motor Length:	51mm
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

DC GEA MOTOR
Typical Applications: Garbage disposers, Slot mchine, peristaltic pump , angular telscope, Automatic door, medical equipement, ATM bank automaticsystem,Office equipment, Household appliances, Automatic actuator.

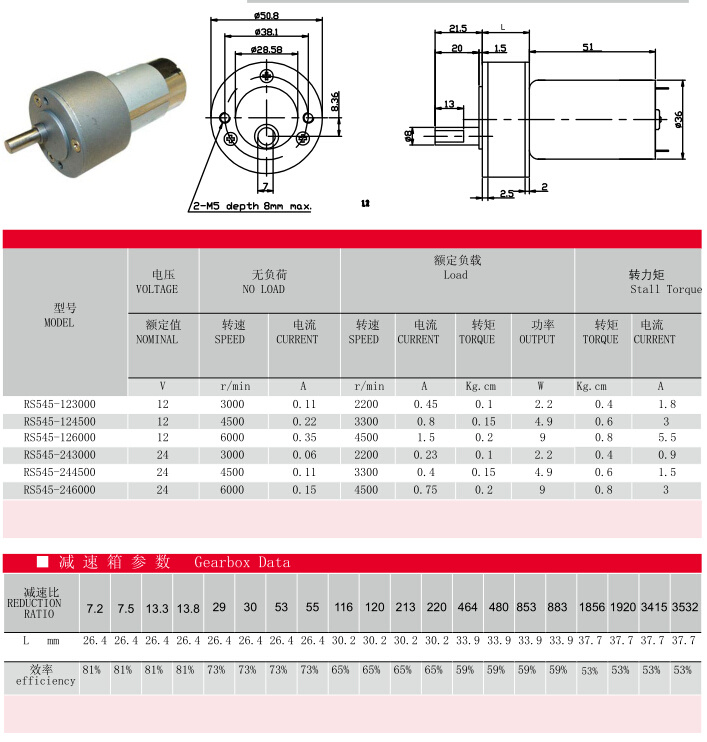

Model	Nominal	NO-LOAD		LOAD				Stall Torque
Model	Votage(V)	speed(RPM)	Current(A)	Speed(rpm)	Current(A)	Torque(KG.CM)	Output power(W)	Torque(Kg.cm)	Current(A)
RS545-123000	12	3000	0.11	2200	0.45	0.1	2.2	0.4	1.8
RS545-124500	12	4500	0.22	3300	0.8	0.15	4.9	0.6	3
RS545-126000	12	6000	0.35	4500	1.5	0.2	9	0.8	5.5
RS545-243000	24	3000	0.06	2200	0.23	0.1	2.2	0.4	0.9
RS545-244500	24	4500	0.11	3300	0.4	0.15	4.9	0.6	1.5
RS545-246000	24	6000	0.15	4500	0.75	0.2	9	0.8	3
