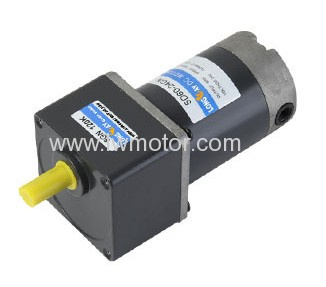

DC Gear Motor for Packaging Machinery

Name: DC Gear Motor for Packaging Machinery
Brand: all-electronics-online.com
SKU: 774643165
Availability: InStock
Rating: 4.6 (38 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DC4GN25-40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	12V,24V,90V
Speed:	16-1000rpm
Torque:	0.3-7.8nm
Power:	25-40W
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	CE,Rosh
Brand:	Longway

Product Description

DC gear motor,

Typical Applications: Complete sets of transmission equipment,Automated
assembly line, Printing machinery, Packaging machinery

motor specification:

MODEL	VOLTAGE	POWER	NO LOAD		LOAD			BRUSH LIFE	MOTOR WEIGHT
	VOLTAGE	POWER	SPEED	CURRENT	SPEED	TORQUE	CURRENT	BRUSH LIFE	MOTOR WEIGHT
	V	W	RPM	A	RPM	kg.cm	A	H	kg
DC4GN25-12	12	25	3200	1.4	3100	0.8	3.6	3000	1.7
DC4GN25-24	24	25	3000	0.7	2850	0.9	1.7	3000	1.7
DC4GN25-90	90	25	3200	0.2	3000	0.8	0.5	3000	1.7
DC4GN40-12	12	40	3100	2.0	2800	1.4	5.2	3000	1.8
DC4GN40-24	24	40	3100	0.8	3000	1.3	2.1	3000	1.8
DC4GN40-90	90	40	3200	0.3	3000	1.3	0.7	3000	1.8

Model	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60
DC4GN40-24	Output Shaft Speed	rpm	1033	861	320	517	413	344	310	248	207	172	155	124	103	86	78	62	52
	Allowable Torque	N.m	0.30	0.36	0.50	0.60	0.75	0.90	1.00	1.25	1.50	1.80	2.00	2.25	2.70	3.24	3.60	4.50	4.88
	Allowable Torque	kg.cm	3.06	3.67	5.09	6.1	7.64	9.17	10.2	12.73	15.28	18.33	20.36	22.95	27.54	33.04	36.71	45.90	49.80

Model	Reduction Ratio		75	90	100	120	150	180	200
DC4GN40-24	Output Shaft Speed	rpm	41	34	31	26	21	17	16
	Allowable Torque	N.m	6.10	7.32	7.84	7.84	7.84	7.84	7.84
	Allowable Torque	kg.cm	62.24	74.69	80.00	80.00	80.00	80.00	80.00

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
