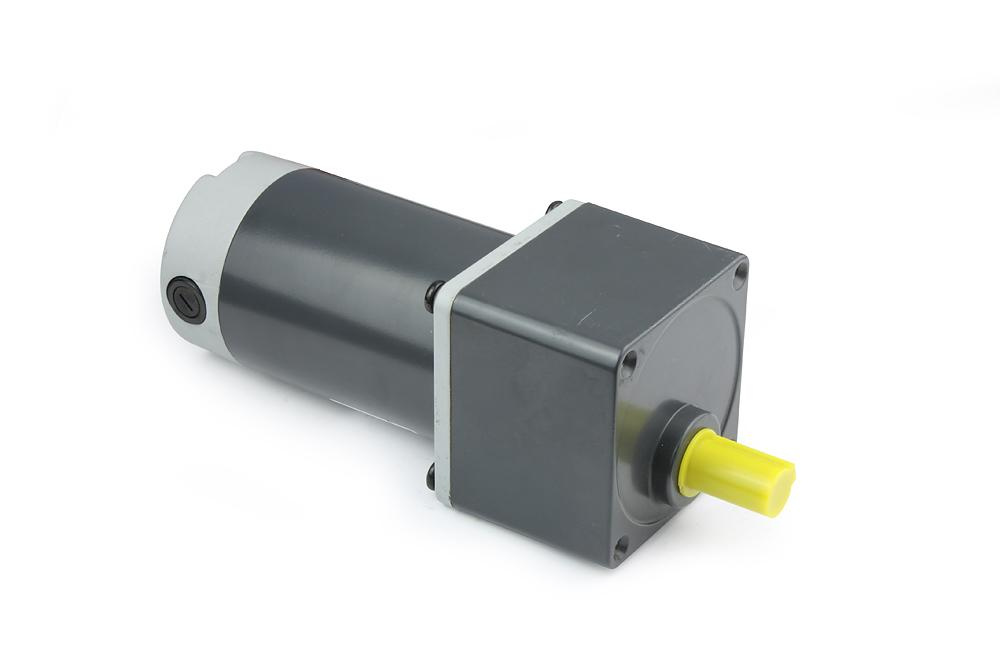

DC Gear Motor for Transmission Equipment

Name: DC Gear Motor for Transmission Equipment
Brand: all-electronics-online.com
SKU: 774642895
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DC2GN15-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	12V,24V,90V
Speed:	16-1000rpm
Torque:	0.2-5nm
Power:	15-30W
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	CE,Rosh
Brand:	Longway

Product Description

DC gear motor,

Typical Applications: Complete sets of transmission equipment,Automated
assembly line, Printing machinery, Packaging machinery

motor specification:

MODEL	VOLTAGE	POWER	NO LOAD		LOAD			BRUSH LIFE	MOTOR WEIGHT
	VOLTAGE	POWER	SPEED	CURRENT	SPEED	TORQUE	CURRENT	BRUSH LIFE	MOTOR WEIGHT
	V	W	RPM	A	RPM	kg.cm	A	H	kg
DC3GN20-90	90	20	3150	0.2	2800	0.70	0.50	3000	1.0
DC3GN25-12	12	25	3300	1.0	3000	0.80	3.50	3000	1.0
DC3GN25-24	24	25	3200	0.5	2800	0.87	1.60	3000	1.0

Model	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50
DC3GN25-24	Output Shaft Speed	rpm	1067	889	640	533	427	356	320	256	213	178	160	128	107	89	80	64
	Allowable Torque	N.m	0.21	0.25	0.34	0.41	0.52	0.62	0.69	0.86	1.03	1.24	1.24	1.56	1.87	2.24	2.49	3.11
	Allowable Torque	kg.cm	2.1	2.6	3.5	4.2	5.3	6.3	7.0	8.8	10.5	12.6	12.6	15.9	19.1	22.8	25.4	31.7

Model	Reduction Ratio		60	75	90	100	120	150	180	200
DC3GN25-24	Output Shaft Speed	rpm	53	43	36	32	27	21	18	16
	Allowable Torque	N.m	3.38	4.22	4.90	4.90	4.90	4.90	4.90	4.90
	Allowable Torque	kg.cm	34.5	43.1	50	50	50	50	50	50
