DC Pm Spur Gear Motor for Instrument

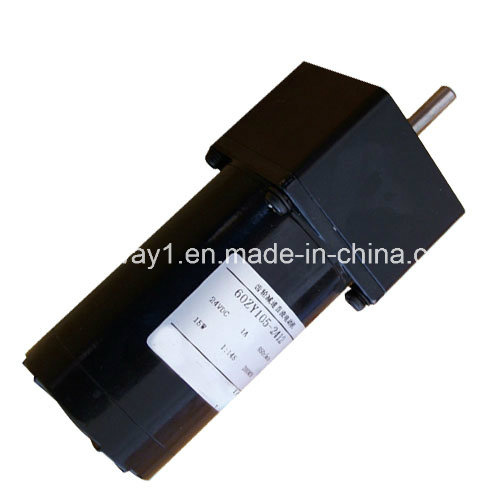

Name: DC Pm Spur Gear Motor for Instrument
Brand: all-electronics-online.com
SKU: 773944075
Availability: InStock
Rating: 4.6 (119 reviews)

Price:	US $ 60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	71ZYT110-80SPGS100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Diameter:	60mm
Motor Voltage:	12V , 24V
Motor Weight:	1.6kg
Motor Length:	77mm
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

Gearbox with diameter 60mm, allowed torque 5N.m
Fit for alloy steel gears, all bearing configuration, low noise.

Motor Technical Data

Model	Rated Voltage (VDC)	No-load Speed (r/min)	No-load Current (mA)	Rated Speed (r/min)	Rated Torque (mN.m)	Output Power (W)	Pated Current (mA)	Stall Torque (mN.m)	Stall Current (A)
71ZYT110-2420	24	2000	0.4	1600	0.20	33	2.4	1.0	9.5
71ZYT110-2430	24	3000	0.5	2400	0.24	59	3.5	1.2	14

Gear motor Technical Data

Number of grea trains	2	2	2	2	2	3	3	4	4	4	4	4
Length(L) mm	35	35	35	35	35	45	45	45	45	45	45	45
No-load speed r/min	667	400	267	160	133	80	67	40	27	20	17	13
Rated speed r/min	533	320	213	128	106	64	53	32	21	16	14	11
Rated torque N.m	0.5	0.8	1.2	2.0	2.4	3.6	4.4	6.6	9.8	10.0	10.0	10.0
Max.permissible load in a short time	2.5	5.0	5.0	5.0	5.0	10.0	10.0	20.0	20.0	20.0	20.0	20.0
Direction of Rotation	CCW	CCW	CCW	CCW	CCW	CW	CW	CCW	CCW	CCW	CCW	CCW

Reduction ratio	3	5	7.5	12.5	15	25	30	50	75
Number of grea trains	2	2	2	2	2	3	3	4	4
Length(L) mm	35	35	35	35	35	45	45	45	45
No-load speed r/min	1000	600	400	240	200	120	100	60	40
Rated speed r/min	800	480	320	192	160	96	80	48	34
Rated torque N.m	0.6	1.7	1.4	2.4	2.9	4.4	5.2	7.9	10.0
Max.permissible load in a short time	2.5	5.0	5.0	5.0	5.0	10.0	10.0	20.0	20.0
Direction of Rotation	CCW	CCW	CCW	CCW	CCW	CW	CW	CCW	CCW

The specifications can be designed according to the customer's requirement !
