| Prod Model: |
JYP-500W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
1170g |
| Size: |
184*113*65mm |
| Input Voltage: |
12V/24V |
| Output Frequency: |
50/60Hz |
| Warranty: |
18 Months |
| OEM: |
Accepted |
| Efficiency: |
>95% |
| Phase: |
Single |
| Power Source: |
Solar Power |
| Application: |
Electric Tools |
| Brand: |
Jyins |
Product Description

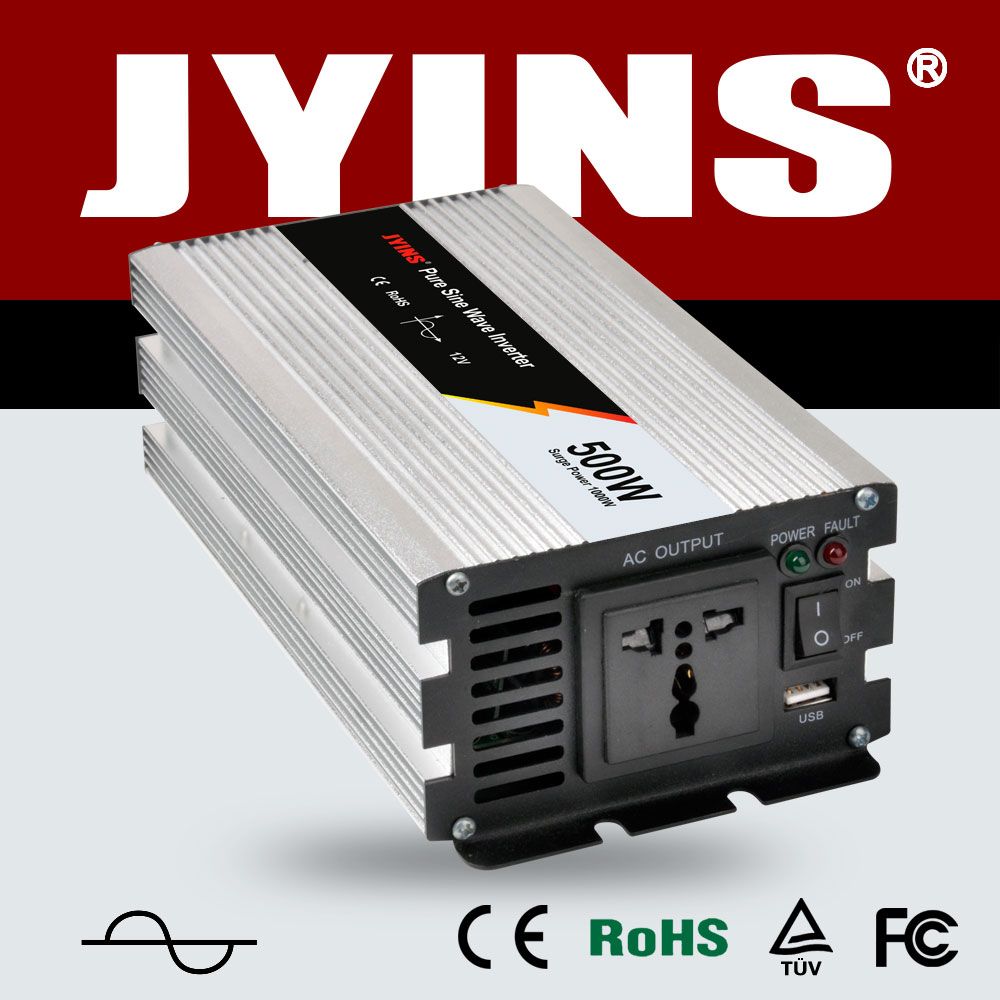

DC to AC 500W grid tie power inverters (JYP-500)
Products Description:
JYINS 500w pure sine wave grid tie power inverters offering superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads. Connect JYINS 500W pure sine wave inverter with battery terninals,then you can get AC power for your appliances,the AC output identical to, and in some cases better than the power supplied by your utility.
Products Features:
·Input & output fully insolated
·High Surge: high surge current capability starts difficult loads such as TVs,camps,motors and other inductive loads,
·Grounding Protection: there is terminal in front panel,you can grouding the inverter.
·Soft start: smooth start-up of the appliances.
·Pure sine wave output waveform: clean power for sensitive loads.
·AC output identical to, and in some cases better than the power supplied by your utility
·Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm,and turns off automatically after the inverter has cooled.
·Low total harmonic distortion: below 3%
·Two LED indicators on the front panel shows the working and failure state.
Protection Function:
·Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Grounding protection
Technical Parameters
| Model | JYP-0.5K-1 | JYP-0.5K-1 | JYP-0.5K-1 | JYP-0.5K-2 | JYP-0.5K-2 | JYP-0.5K-2 |
| Rated power | 500W |
| Peak power | 1000W |
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% |
| Unload current less than | 0.6A | 0.4A | 0.3A | 0.6A | 0.4A | 0.3A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output waveform | Pure Sine Wave |
| Waveform distortion | THD<3%(Linear load) |
| USB port | 5V 1A |
| Max.efficiency | 90% |
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |
| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. |
| Over voltage | LED Red light on, shut down |
| Over load | LED Red light on, shut down |
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown |
| Short circuit | LED Red light on |
| Input reverse polarity | Fuse burn-out |
| Working temperature | -10°- +50° |
| Storage temperature | -30°- +70° |
| Dimension(mm) |
244x112x67mm |
Packing(mm) | 295x160x80mm |
| Net./gross weight(g) | 1197/1479g |
| QTY/Ctn | 20 Pcs |
| Meas./Ctn(mm) | 635x335x535mm |
| Gross weight/Ctn(g) | 29780g |
| Warranty | 1 years |
| Configuration | Standard |
| Cooling method | Intelligent air cooling |
|
|
|
|
|
|
|
| Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product. |
