| Prod Model: |
DXP1000WBIG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
1000W |
| Surge Power: |
2000W |
| Output Frequency: |
50/60Hz |
| Output Waveform: |
Modified Sine Wave |
| High Volt Cut Off: |
>DC15V |
| Color: |
Black |
| Warranty: |
2 Years |
| OEM: |
Welcome |
| Certificate: |
CE |
| Small Order For Testing: |
Acceptable |
Product Description

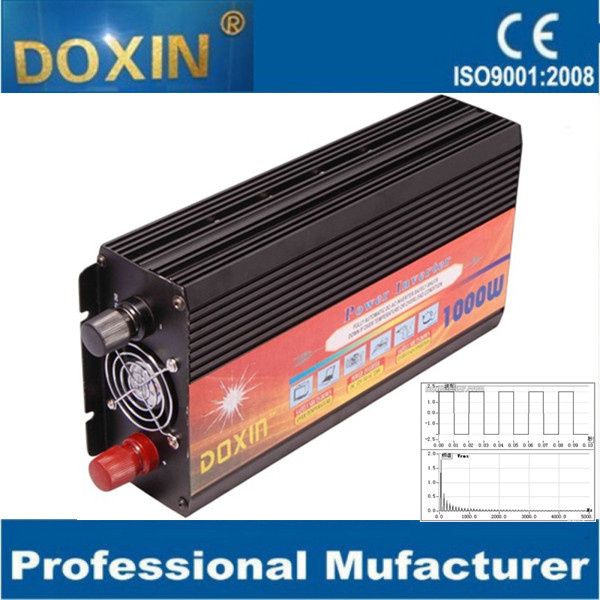

1000Watts DC to AC Power Inverter(DXP1000BIG)
Product Description
1. The use of imported components manufacturing, advanced circuit design, the inverter up to 90% conversion efficiency, strict quality management system of production, modernization of water production, product quality assurance.
2. Complete product specifications, different standards at home and abroad, the product into the United States, Britain, France and Japan, several major series of products can also be designed according to customer needs.
3. The internal protection circuits to prevent the electrical pulses or voltage fluctuations, can withstand the compressor, the impact of TV monitors and other electrical power with greater security start, power switch can be completely cut off the internal circuit, to protect the battery from the fractured loss.
4. The design of self-protection, making the time when the voltage is lower than 10V, it will automatically shut down to ensure that the batteries have sufficient power to start the vehicle.
5. Overheating or overload will automatically shut down when; Return to normal and then starts automatically.
6. No work noise, normal use can be run for many years without maintenance.
7. A variety input and output mode: 12V input, 24V input, the importation of cigarette lighter, battery directly; 220V AC output, 110V AC output, fully able to meet domestic and foreign users of the exchange of electricity demand.
8. Aluminum products, high-pressure plasma process Ti surface, high hardness, chemical composition and stability, anti-oxidation, amateur appearance.
Feature:
(1)High frequency pulse width modulation technology
(2)Excellent double-faced circuit board and components
(3)High quality and high performance
(4)Protection function:
Overload protection
Over-current protection
High-temperature protection
Short-circuit protection
Battery reverse connection protection
Battery high-voltage&low-voltage protection
Built-in fuse protection, etc
Applying area:
Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
Simply connect with 12V/24V Battery as in a Car, Motorcycle, Camper or Boat and use 110V/ 220V electrical appliances.
1. It can be used which the power is less than 800W, such as
2. Office equipment: Laptop computers, mobile phones, printers, monitors
3. Household appliances: Televisions, video recorders, audio, DVD, VCD and electrical boxes
4. Outings: Field lighting, microwave ovens, cooking, etc.
5. Outdoor work: Power tools, vehicles for help, rescue and disaster relief, commercial promotions, etc.
6. Recreation: Mobile phone, PDA, digital cameras, digital cameras, batteries and GPS satellite navigation, etc.
Some about us
DOXIN is a professional manufacture specialized in electronics and solar products, We produce electronics products more than 10 years. We have professional development team. We pursues to establish the culture of "quality first, reputation best ".
Product category
Car inverter
Pure sine wave invertre
Modify sine wave inverter
Solar energy power source
Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.
For more info you need, pls contact us anytime!
Call us: +86 18028085970
High-capacity modified sine wave inverter
(DC12V/24V/36V/48V60V--AC110V/220V230V240V) |
| CATALOGUE (DC12V--AC110/220/230V) |
| Item No. | DXP1000WBIG | DXP1200WBIG | DXP1500WBIG | DXP2000WBIG | DXP2500WBIG | DXP3000WBIG | DXP5000WBIG |
| * Max continuous power: | 1000W | 1200W | 1500W | 2000W | 2500W | 3000W | 5000W |
| * Peak Load Power Rate: | 2000W | 2400W | 3000W | 4000W | 5000W | 6000W | 10000W |
| * NO load current draw: | <0.3A |
| * Input DC voltage Range: | DC10V-15V |
| * Output Voltage Range: | AC110/220V+/-5% |
| * Output Frequency Range: | 60/50Hz+/- 0.1Hz |
| * Max Outer Temperature: | < 65 °C |
| * Max Power Efficiency: | > 90% |
| * High Voltage Cut Off: | >DC15V |
| * Low Voltage Alarm: | DC 10.0- 11.0V |
| * Low Voltage Cut Off: | DC10V |
| * Overload&Short-circuit Protection | YES |
| * Input Voltage: | DC12V |
| * Output waveform: | Modified sine wave |
| * Cooling | Built-in Fan |
| * Product Size(mm): | 320*150*70 | 280*150*70 | 320*150*70 | 350*150*90 | 350*150*90 | 430*155*130 | 430*155*130 |
| * Packing size | 56*36*46.5cm(8pcs/ctn) | 51*46*47cm(6pcs/ctn) | 51*46*47cm
(6pcs/ctn) | 51*46*47cm
(4pcs/ctn) |
| * N.W: | 1.85Kg | 1.85Kg | 1.85Kg | 2.55Kg | 2.55Kg | 4.4Kg | 6.4Kg |
| * G.W: | 2.6Kg | 2.6Kg | 2.6Kg | 3.35Kg | 3.35Kg | 5.25Kg | 7.25Kg |
