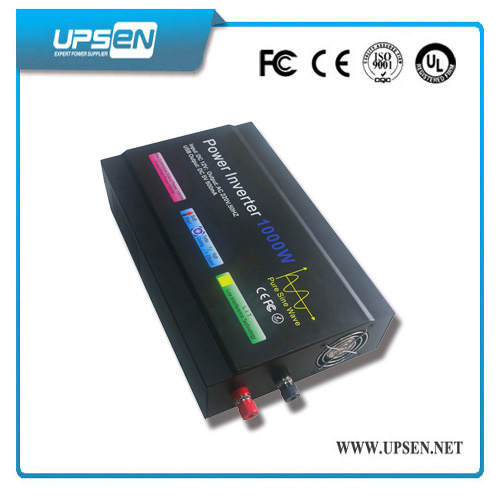

DC to AC High Frequency Single Phase Output Inverter

DC to AC High Frequency Single Phase Output Inverter
Price: US $ 1-50/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: IS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waveform: Pure Sine Wave
Output Frequency: 50Hz or 60Hz
OEM: Yes
Peak Power Rating Output: 1000W

Product Description

Dc to Ac High Frequency single phase output inverter
Pure Sine Wave Inverter Ideal Star Series 300W-1000W (1ph in/1ph out)

Key Features:
1:Fully automatically transfers
2:Built-in high speed cooling fan
3:Transformaer-less design and compact in size
4:Complete LED indication for operation status
5:Easy to Install & Easy to Operate & Easy to Solve
6:Excellent performance and high conversion efficiency
7:pure sine wave output with high efficiency and stability
8:LCD display and operation panel, in real time presents operating data.
9:DC Start & Automatic Self-Diagnostic Function
10:Wide working temperature range (industrial level)
11:Perfect protection: low voltage protection, high voltage protection, overload protection, over temperature protection and short-circuit protection

Application
Home,office,Monitoring,fan,Automation systems,Data processing systems,TV ,Telecom System,Network Rooms,Education System,Medical Equipment,etc.

Technical Specification

Model
IS300IS500IS600IS800IS1000
Rated power300W500W600W800W1000W
Peak power600W1000W1200W1600W2000W
Start methodSoft start
DC input Rated
input voltage
12V/24V/48V(optional)
AC OutputVoltage100V/110V/220V/230V/240V(optional)
Frequency50HZ/60HZ(optional)
WaveformPure Sine Wave
Maximum DC 110%
loads output
power
Total
Harmonic
Distortion
  THD≤2%
Rated output
 efficiency
>85%
 ProtectionHigh input
voltage
shutdown
15.0V, automatically shutdown, alarm twice
Low input
voltage
shutdown
  10.0V, automatically shutdown, alarm twice
Low input
voltage
alarm
      10.5V, no power off, alarm once
Over
temperature
   protection
When the temperature of internal heat sink is above 80ºC,
it will shutdown automatically and alarm three times
Short
circuit
protection
Shutdown, alarm five times, restart automatically
OverloadShutdown, alarm four times, restart automatically
 protection
Reverse InputQuick-break fuse
Environment Temperature-10 - 40ºC
Humidity0%-95%
Noise of the fan<55dB
Insulation resistanceEN50081-1/EN55022
Insulating strengthEN50081-1/EN55022
Weight (Kg)1.161.923
Size 235*115*65295*132*72320*185*72
W*D*H(mm)
*Specifications are subject to change without prior notice.
