| Prod Model: |
Dark Star Series 600Va-1200Va |
| Color: |
Black |
| Power Factor: |
0.8 |
| Structure: |
Strong and Durable |
| Form Wave: |
Pure Sine Wave |
Product Description
DC to AC home use pure sine wave solar hybrid inverter with pwm solar

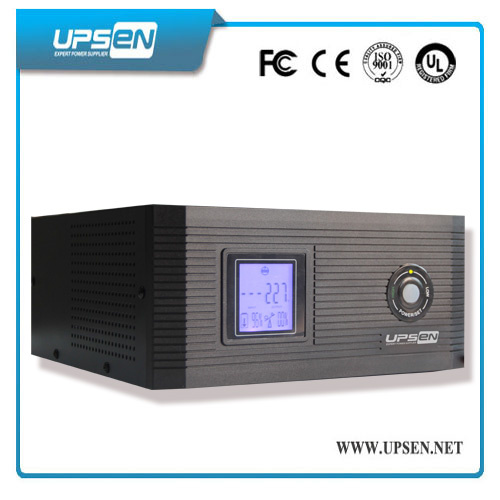

Pure Sine Wave Inverter Dark Star Series 600Va-1200Va (1ph in/1ph out) DS 600VA-1200VA
Key Features:
1:Fast transfer time,high efficiency
2:CPU core PWM pulse width control technology
3:Advanced chip technology, high conversion efficiency
4:Low battery,overload short circuit,over temperature protections
5:Safely shuts down if under over temperature or overload condition
6:Components with high-quality original, ensure products with high quality
7:Durable construction for long life under extreme environmental conditions
8:Intelligent cooling fan system, CPU microprocessor to realize multiple protection
9:Stable output voltage(pure sine wave output),can be applied to all electrical equipment

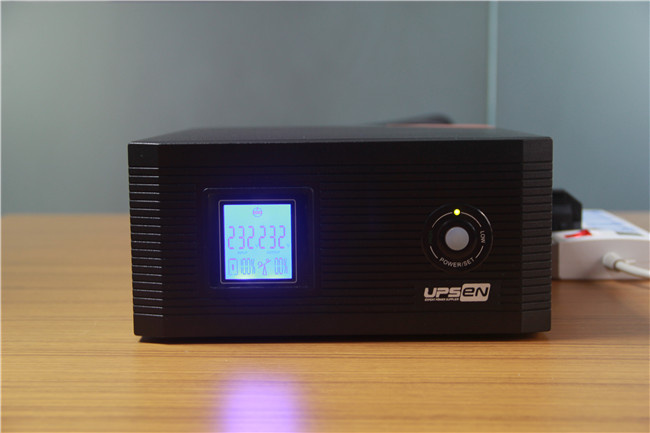

10:High-definition LCD display: adopted high quality LCD display, can clearly see the data from different angles
Applications
vacuum cleaners, fans, Electronic energy-saving fluorescent, incandescent, small television sets, refrigerator,shavers,sewing machines,air conditions,coffee makers,blenders,ice markers,toasters etc.
Technical Specification
| Model | DS600 | DS800 | DS1000 | DS1200 | DS600 Plus | DS800 Plus | DS1000 Plus | DS1200A Plus |
| Capacity | 480W | 640W | 800W | 1000W | 480W | 640W | 800W | 1000W |
| Power factor | 0.8 |
| AVR | No | 3 steps of AVR, CPU controlled |
| INPUT |
| Input voltage range | Inverter mode: 80~290Vac±5Vac (Inverter mode) | 145~270Vac±5Vac |
| UPS mode: 175~270Vac±5Vac (UPS mode) |
| OUTPUT |
| Output voltage range | 80~290Vac±5Vac, Same as AC (AC mode)
220Vac±5% (DC mode) | 203~238±5Vac |
175~270Vac±5Vac, Same as AC(AC mode)
220Vac±5% (DC mode) |
| Output frequency | 50Hz ±5Hz (DC mode) |
| Wave form | Sine wave (DC Mode) |
| Transfer time | Max. 10s. |
| BATTERY |
| QTY & capacity of battery | DC 12V | DC12V /24V | DC 12V | DC12V /24V |
| Charging current | 15A | 15A | 20A | 20A | 15A | 15A | 20A | 20A |
| PROTECTION & FUNCTION |
| PROTECTION | 1. Battery low voltage protection
2. Overload protection
3. Short circuit protection |
| FUNCTION | 1. Auto re-starts when AC recovers
2. Silence setup
3. Automatic charging (offline charging)
4.Combined UPS mode and inverter mode. |
| MANAGEMENT |
| USB | Optional (Note: Funciton of combined UPS and inverter mode is disabled if USB is required.) | Optional ( (Note: Funciton of optional charging current is disabled if USB is required.) |
| PHYSICAL |
| Unit dimension (mm) | 290*255*120 |
| Color box dimension (mm) | 340*130*205 |
| Master box dimension (mm) | 355*325*435 | 355*325*225 | 355*325*435 | 355*325*225 |
| Pcs in one master carton | 2 | 1 | 1 | 1 | 2 | 1 | 1 | 1 |
| Gross weight (1pc, kg) | 7.6 | 11.4 | 12.0 | 13.6 | 7.6 | 11.4 | 12.0 | 13.6 |
| Net weight (1pc, kg) | 7 | 10.8 | 11.4 | 13 | 7 | 10.8 | 11.4 | 13 |
