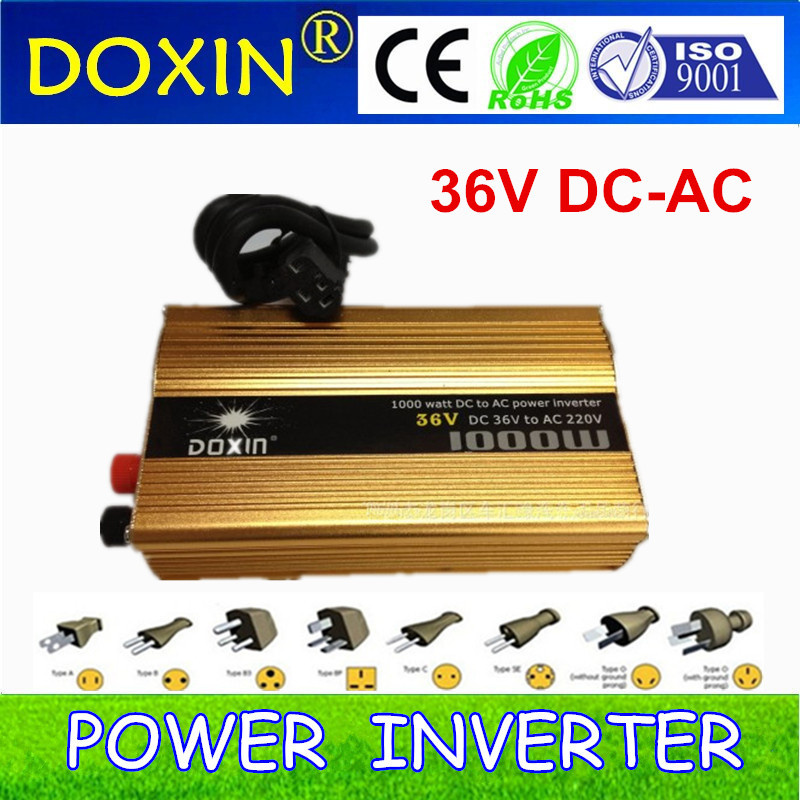

DC to AC Power Inverter for Electronic Bicycle Modified sine wave Inverter 36V 1000W 1200W 1500W

Prod Model:	DX-1000H-36V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	36V
Output Voltage:	110V/120V/220-240V
Output Waveform:	Modified Sine Wave
Frequency:	50Hz/ 60Hz
Efficiency:	Above 90%
Warranty:	2 Years
Multi-protection:	Reverse polirity, Short-circuit, Low/High Voltage
Socket:	Can Customize
Size:	167*95*55mm 0.8kg
Package:	Blister or Gift Box(option)

Product Description

DC to AC Power Inverter for Electronic Bicycle Modified sine wave Inverter  36V 1000W 1200W 1500W


Power inverter 1000w 36V
Model   DX-1000H-36V
Input Voltage  36V
Output Voltage 110V or  220V-240V
Rated Power  1000W
Peak Power  2000W
Efficiency >85%
Protection : Overload protection,Input over-voltage protection.Input low-voltage protection,Over-temperature protection.
Package  Blister or Gift Box
Packed  Qty 10PCS
Dimensions  167*95*55mm
N.W   0.6kg
Certification  CE,ROSH

**>>OEM Service: If you would like the inverter comes with your socket outlet and your logo, please inform us before order. Thank you!


		DXP1000H-36V
Input	Voltage	DC36V
	Voltage Range	30-50V
	No load Current Draw	<0.5A
	Efficiency	Average 90% max 95%
	Connector	Cables with connector
Output	AC Voltage	AC110/220V
	Continuous Power	1000W
	Surge Power	2000W
	Waveform	Modified sine wave
	Frequency	50Hz or 60Hz
Protection	Low Voltage Alarm	YES
	Low Voltage Protection	YES
	Over Load Protection	YES (120%-130% )
	Over Voltage Protection	YES
	Thermal Protection	YES, ( shutdown )
	Short circuit protection	YES, ( shutdown )
Environment	Working Temperature	-5 °  C ~ +40 °  C
	Working Humidity	10%-90%
	Storage Temperature	-20 °  C ~ +50 °  C
	Storage Humidity	5%-95% RH
Package	Dimension( L*W*H )	167*95*55(mm)
	Net Weight	0.75Kg
	Gross Weight	0.8Kg
	Qty/CTN	10pc/CTN
	Cooling	Cooling Fan
	Total Harmonic Distortion	THD<3%
	Certification	CE


Application

This SOLAR POWER INVERTER is extraordinarily designed for home use,which can convert DC 12V/24V of portable power supply to AC 110V/220V/230V and it works for almost all the household electrical resistive appliances such as MP3/MP4 player,cell phone, laptop, emergency light, electric blanket, electric shaver, electric cooker,digital camera, digital video,CD/DVD player,XBOX/PS4 game player, ordinary electric lamps, bulb,fluoresent light, rice cooker,electric iron,desktop computer, graphoscope,fax machines, printers, LCD TV, electric fans, cell phone chargers, electric iron , drinking fountain,hair dryer and so on.(Note:Only pure sine wave inverter can run sensitive electric appliances that are including refrigerator, washing machine,microwave oven, induction cooker, electric drill, compressor, air conditioner, mercury lamp, sodium lamp and so on)

Shipping

1. We accept T/T, Money Gram, Western Union;
2. For sample, it's better via Money Gram or Western Union; For quantity order, we can go for T/T;
3. For small order, we usually transport by express like FedEx, DHL, TNT, EMS.
For big order, we can ship by air or by sea

Advantage

1. The good construction warranty-2years
2. Your client satisfied on the right schedule and quality
3. You can get a good reputation from your market and obtain more orders
4. Our professional service before and after sale
5. The reasonable price
6. Any query from you are welcome and will be replied within 24hurs.


FAQ:

Frequency Asked Questions And Solution

Q1. The electric appliance doesn't work and the indicator light isn't on.
Reason:
1. Faulty battery.
2. Wrong connection of positive pole and negative pole.
3. Loose connection of the cables.
Answer:
1. Check the battery, and change it if needed.
2. Check the connection of battery. The inverter might be damaged and should
be changed or sent to be repaired.
3. Check the cables and connection points, and tighten the terminals.

Q2. The electric appliance doesn't work and the RED indicator light is on.
Reason:
1. The rated power of electric appliance exceeds the nominal power of inverter
which leads to over load shut down.
2. The rated power of electric appliance is less than the nominal power of the inverter
but its peak power is too high which leads to over load shutdown
3. The electricity in battery runs out (the inverter alarms)
4. Poor ventilation causes over heat shutdown
5. Input voltage is too high.

Answer:
1. Please use the electric appliance which power is less than the nominal power of inverter.
2. The peak power of electric appliance is no more than that of power inverter, or the same power.
3. Charge the battery or change it.
4. Turn off the inverter for 15 minutes, remove the items near fan and those around the inverter,
and put the inverter in a shady and cool place
5. Turn off the inverter and test the output voltage of battery.

Q3. The output voltage of power inverter tested is too low.
Reason: Generally the numerical reading range of voltmeter for testing use is too small.
Answer: If you test the output voltage of modified sine wave inverters, please use "true RMS
Muti-meter" to obtain the accurate data.


Q4. Only small power load can be driven.
Reason: When the current goes through the cables, the voltage declines.
Answer: Shorten the length and use thicker cables.

Q5. The hours of use are too short.
Reason:
1. The electricity consumption of the electric appliance is larger than rated load of power inverter.
2. The battery is faulty or damaged
3. The battery is not well charged
4. The current declines when through cables
Answers:
1. Use larger capacity battery.
2. Change battery.
3. If the charger can't charge the battery fully, it needs to change a better intelligent charger.
4. Shorten the length of the cables and use the thicker cables.
