| Prod Model: |
power inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Audible Noise: |
<60dB |
| Output Current: |
a |
| Battery Mode: |
>88% |
| Availability Power: |
≥90.5% |
Product Description
DC to AC power inverter with 12/24/48v for home

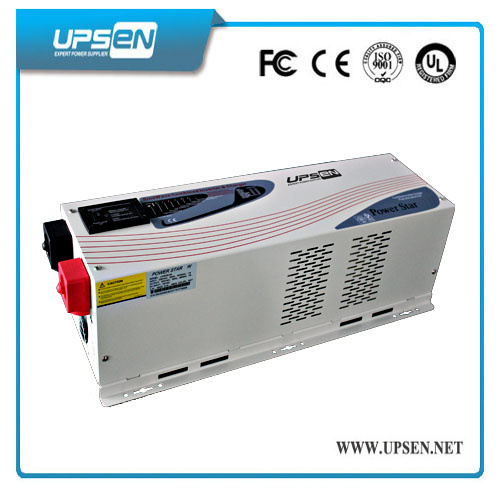

Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)
Inverter Application
UPSEN Power Star Series Inverter can be used for various home appliances, Industrial control system,Communication equipment, etc.
Inverter Key Features
1:Microprocessor control guarantees high reliability
2:Pure sine wave output (THD< 3%), available for sensitive loads
3:Fast switching (grid to battery and battery to grid) for backup power
4:High-end chip,high-performance CPU,improve the working reliability
5:Durable construction for long life under extreme environmental conditions
6:Sound and light alarm,under-voltage alarm,with frequency-conversion cooling fan
7:The automatic voltage regulator supplies wide stabilizing AC range, and bucking/boosting voltage in 10ms.
8:Adopting the copper transformer, making the inverter working stable and reliable, and with more load capacity.
9:High voltage & low voltage protection, it will stop output when DC input voltage is high/low and recovery automatic if voltage in the DC input voltage range.
10:Intelligent battery management system: a built-in battery overchargeprotection,
discharge protection, protect the batteries
11:Featured with high reliability and low failure rate by using the advanced double-CPU single chip intellectual control technology
Technical Specification
| Power Star Series |
Model No. |
PS1000 |
PS2000 |
PS3000 |
PS4000 |
PS5000 |
PS6000 |
Nominal Power |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
AC Input |
Waveform |
Pure Sine Wave |
Voltage |
120VAC/230VAC |
Acceptable Voltage |
194-243VAC164-243VAC(wide mode) |
Line Low Transfer |
85V±4%/184(154 wide mode±4%) |
Line Low Return |
95V±4%/194(164 wide mode±4%) |
Line high Transfer |
135V±4%/253±4% |
Line high Return |
127V±4%/243±4% |
Frequency |
50Hz or 60Hz (Auto sensing) |
Line Low Transfer |
47Hz for 50Hz, 57Hz for 60Hz |
Line high Transfer |
55Hz for 50Hz, 65Hz for 60Hz |
AC Output |
Waveform |
Pure Sine Wave(bypass mode sync to input) |
Voltage |
120/220/230/240VAC(bypass mode sync to input) |
Voltage Regulation |
±10%rms(bypass mode sync to input) |
Frequency |
50Hz±0.3Hz(bypass mode sync to input) |
Peak Power |
3 times of rating power |
Short Circuit Protection |
Yes,shutdown after 10ms |
Power Factor |
0.9-1.0 |
DC Input |
Battery Voltage |
12V/24V |
12V/24V/48V |
24V/48V |
Minimum Start Voltage |
10V for 12V,20V for 24V,40V for 48V |
Low Battery Alarm |
10.5V for 12V,21V for 24V,42V for 48V |
Low Battery Transfer |
10V for 12V,20V for 24V,40V for 48V |
High Voltage Alarm |
16V for 12V,32V for 24V,64V for 48V |
Max Charging Current |
35A/70A |
Over Charge Voltage |
15.7V for 12V,31.4V for 24V,62.8V for 48V |
Transfer Efficiency |
Line Mode |
>95% |
Battery Mode |
>88% |
power saver |
Available when the load is less than 25 Watts |

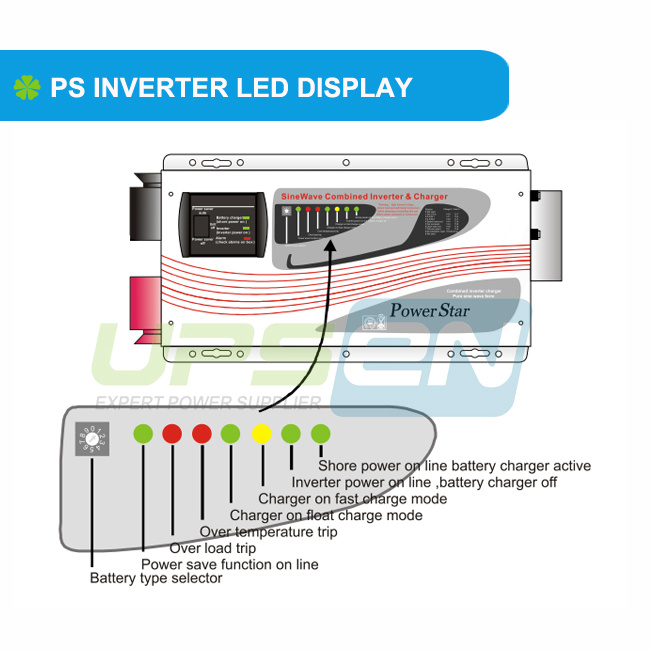

Indicators |
7-LED Display |
From the right to the left,LED1 line mode (green lighting),LED2 inverter mode |
(green lighting),LED3 charging mode (yellow lighting),LED4 Fully charged |
(green lighting),LED5 over heat shutdown (red lighting) ,LED6 Overloaded |
shutdown (red lighting) ,LED7 Saving Mode (green lighting) |
3-LED Display |
Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) |
Switch selector |
Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
|
Audible Alarm |
Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
Protections |
low battery,over charging,over temp,over load |
Communications |
RS-232/USB(custom-made) |
Enviromental |
Operating Environment |
0-40ºC,0-90%RH(non-condensing) |
Audible Noise |
<60dB |
Physical | | | | | | |
Net Weight(KG) |
18 |
20 |
22 |
35 |
38 |
40 |
Dimension L*W*H(mm) |
442*218*179mm |
598*218*179mm |
* Specification is subject to change without prior notice.
Competitive Advantages:
1: Three Years' warranty for sinewave inverter, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
