DC to AC Pure Sine Wave Inverter Charger (LW1000W-LW6000W)
| Price: |
US $ 126-145/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
LW1000W-LW6000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1kw, 1.5kw, 2kw, 3kw, 4kw, 5kw, 6kw |
| DC Input Voltage: |
12VDC, 24VDC, 48VDC |
| AC Input/Output Voltage: |
120VAC or 220VAC |
| Built In Charger: |
35AMP or 70AMP |
| Frequency: |
50Hz, 60Hz |
| Protection: |
Short Circuit, Low Battery, Over Charging, Over Temp |
| Phase&Wave Form: |
Single Phase & Pure Sine Wave |
| Net Weight: |
15, 17.5, 19.5, 25, 35.5, 39, 47.5kg |
| Dimension: |
470*223*185(mm)/650*223*185(mm) |
| Display: |
LCD/LED Display |
Product Description

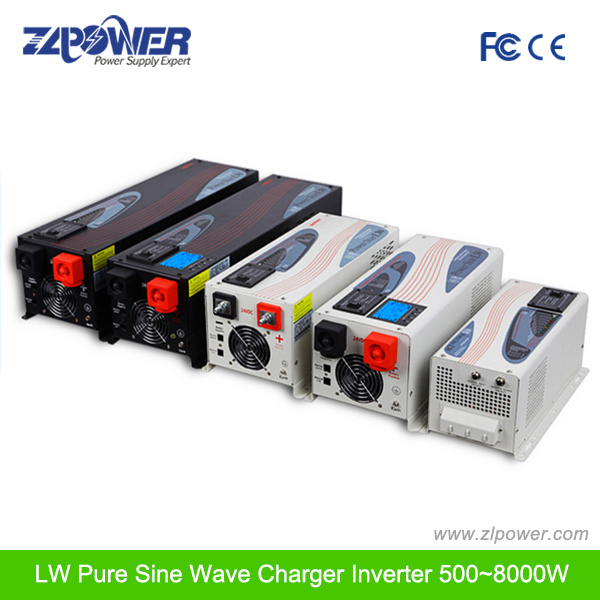

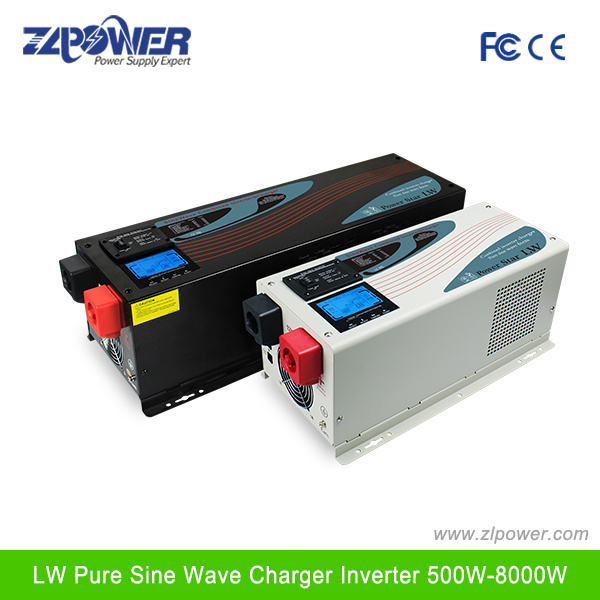

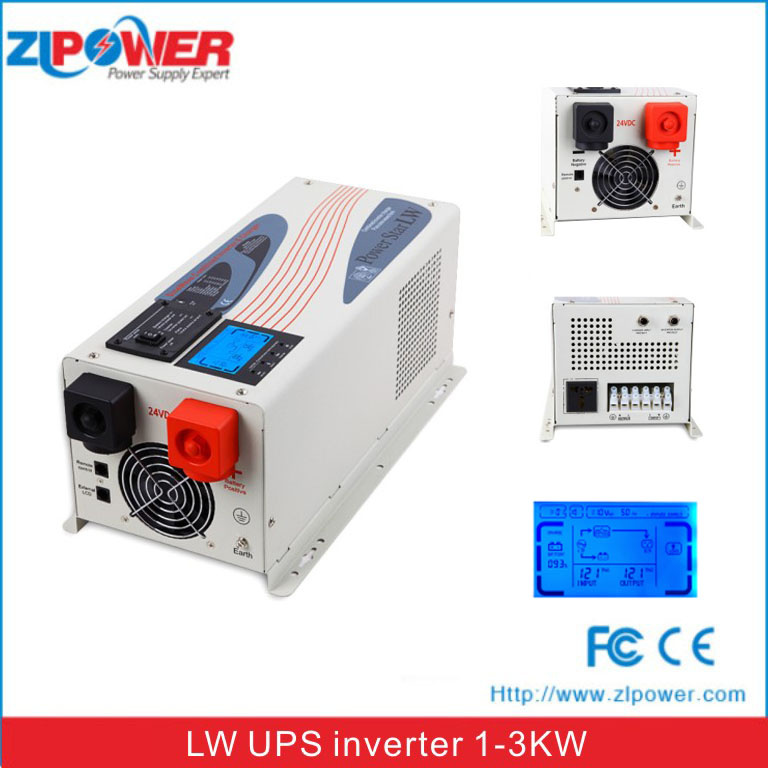

Powerstar pure sine wave inverter 12V, 24V, 48VDC, DC to AC inverter 220VAC or 120VAC
Pure sine wave Inverter charger(built in 35/70AMP), LW1KW-LW6KWMain FeaturesSolar Inverter/Pure sine wave Low frequency inverter charger, 220VAC/110VAC (LW series)
70AMP built in charger.
12V-24V-48VDC, 1000W-6000W, UPS function
It widely applied in wind Generator, Solar battery pack set, house, vehicle, ship, navigation and places where lack of main power, mobile electricity work also telecommunications device, launch Station, Emengency EPS and so on.
SpecificationLW Series Pure Sine Wave Inverter takes low frequency converter Device, with built in Isolation transformer. Zero Voltage(ZV) and soft switch technic, high capability MCU, digital and dummy combined technics which Complete the voltage increase in one time and SPWM wave modemed Advanced circuit, high efficiency and compact size, small weight And super stability
It has no repellency for the load, which can work well with Inductive load such as fluorescent lamp, electromotor, microwave ovens, Induction cooker, refrigerator, air conditions and transformer.
With protection fonction like, DC input protect When pole wrong, AC input protection against over and low voltage, Output protection against over load, shor circuit Protection, DC input and AC output completely electric insulation.
Powerstar Pure sine wave inverter charger (35/70amp)
Product Series | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| General Specification | Input Wave form | Sine wave (Utility or Generator) |
| Nominal voltage | 120VAC | 230VAC |
| Low voltage trip | 90v + 4% | 184v/154v + 4% |
| Low voltage reconnect | 100v + 4% | 194v/164v + 4% |
| High voltage trip | 140v + 4% | 253v + 4% |
| High voltage reconnect | 135v + 4% | 243v + 4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal input frequency | 50Hz or 60Hz (Auto detect) |
| Low freq trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output wave form | (Bypass mode) same as input |
| Overload protection | Circuit breaker |
| Short circuit protection | Circuit breaker |
| Transfer switch rating | 30amp or 40amp |
| Efficiency on line transfer time | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | yes |
| Max bypass current | 30amp or 40amp |
| Bypass overload current | 35amp or 45amp: Alarm |
| Inverter Specification Output | Output wave form | Pure sine wave |
| Output continuous power watts | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuous power VA | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal output voltage rms | 120/230VAC |
| Output voltage regulation | 10% rms |
| Output frequency | 50Hz + 0.3Hz or 60Hz + 0.3Hz |
| Nominal efficiency | >88% |
| Surge ratings | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes, fault after 10 seconds |
| Inverter Specification Input | Nominal input voltage | 12V | 24V | 48V |
| Minimum start voltage | 10V | 20V | 40V |
| Low battery alarm | 10.5V | 21V | 42V |
| Low battery trip | 10V | 20V | 40V |
| High voltage alram | 16V | 32V | 64V |
| Power saver | Below 25watts when enabled |
| Power saver | Same switched on/off on remote |
| Charge Mode Specification | Input voltage range | 95-127VAC | 194-243VAC/ 164-243VAC(W) |
| Output voltage range | Dependent on battery type |
| Charge current | 35A/70A |
| Battery initial voltage for start up | 0-15.7v for 12v (*2 for 24v; *4 for 48v) |
| Over charge protection shutdown | 15.7v for 12v (*2 for 24v; *4 for 48v) |
| Others | Remote control/RS232/USB | Yes, Optional |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 |
| | 4000/5000/6000 Model: 598*218*179 |
| Net weight | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| | 18kgs | 20kgs | 22kgs | 35gs | 38kgs | 40kgs |
#####################################################################################
Specially recommand: 300-12000w hybrid solar inverter power inverter
More ZLPOWER Products, pls kindly view our website: www.zlpower.com
Welcome OEM, ODM and Special design
Email, Skype, Whatsapp and QQ: Online For 24 Hours
#####################################################################################
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
