DC to AC Transformer Inverter 1000W-6000W
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
LW 1000-6000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charging Current: |
35A, 70A, 90A |
| Wave Form: |
Pure Sine Wave |
Product Description

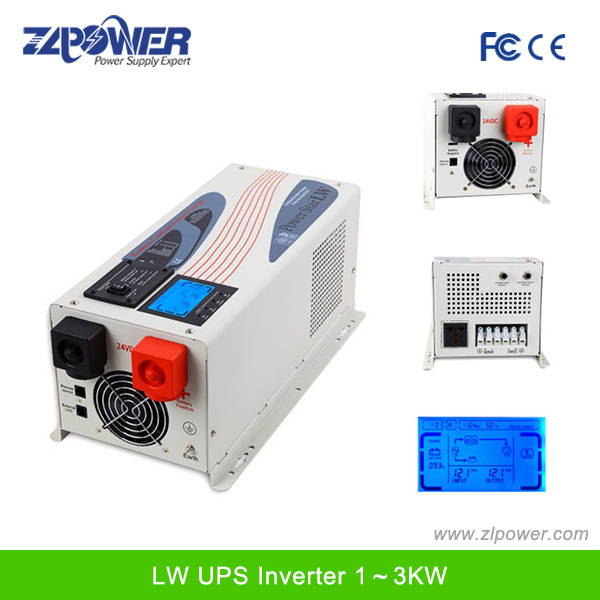

LW Inverter Series 1000W-6000W
Key features:
♦All kinds of home applicance, office equipment, solar power system,
and other equipments which use single phase power.
♦Pure sine wave output, available for sensitive load.
♦3-step progressive charging,7 battery type selector
♦35A/50A/70A/90A (According to the inverter model)
♦Accept generator's energy output
♦High power factor
♦Automatically transfer between battery and line modes
♦Microprocessor control guarantees high reliability
♦Bypass without battery connected
♦Remote control function
♦Protection against Over load, over temperature, over charging, low battery,
Reverse connection (optional by hard connect.
Specification:
| Model Parameters | LW1000 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| AC Input | Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Voltage | 120VAC/230VAC |
| Acceptable Voltage | 194-243VAC/164-243VAC(wide mode) |
| Line low Transfer | 85V±4%/184(154 wide mode±4% ) |
| Line low Return | 95V±4%/194(164 wide mode±4% ) |
| Line high Transfer | 135V±4%/253±4% |
| Line high Return | 127V±4%/243±4% |
| Frequency | 50Hz or 60Hz |
| Line low Transfer | 47Hz for 50Hz, 57Hz for 60 Hz |
| Line high Transfer | 55Hz for 50Hz, 65Hz for 60 Hz |
| Out Input | Phase &waveform | Pure Sine Wave(bypass mode sync to input) |
| Voltage | 100/110/120/130VAC, 208/220/230/240VAC (bypass mode sync to input) |
| Voltage Regulation | ±10%rms(bypass mode sync to input) |
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) |
| Peak Power | 3 times of rating power |
| Short Circuit Protection | Yes, shutdown after 10ms |
| Power Factor | 0.9-1.0 |
| Solar Charger | Battery Voltage | 12V/24V/48V | 24V/48V |
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V |
| Low Battery Alarm | 10.5V for 12V, 21V for 24V, 42V for 48V |
| Low Battery Transfer | 10V for 12V, 20V for 24V, 40V for 48V |
| High Voltage Alarm | 16V for 12V, 32V for 24V,64V for 48V |
| Max Charging Current | 35A/70A |
| Over charge Voltage | 15.7V for 12V,31.4V for 24V, 62.8V for 48V |
| Transfer Efficiency | Line Mode | >95% |
| Battery Mode | >88% |
| Power saver | Available when the load is less than 25 Watts |
| Indicators | Switch selector | Saving Mode is on/off when push the switch forwards/backwards ,Keeping it horizontal is turning the inverter off. |
| Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
| Protections | low battery/ over charging /over temp/over load |
| Communications | RS-232/USB(custom-made) |
| Enviromental | Operating Environment | 0-40ºC,0-90%ºC RH(non-condensing) |
| Audible Noise | <60dB |
| Net Weight (KG) | 14.5 | 19 | 24.5 | 34.5 | 38 | 45 |
| Dimension(LxWxH) | 480×225×190mm | 660×225×200mm |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
