| Prod Model: |
Z3S-TW22 |
| Checking Mode: |
Co-Axial |
| Checking Distance: |
10mm +/- 2mm |
| Output Indication: |
Red LED |
| Shell Material: |
Metal |
| IP Rating: |
IP69 |
Product Description

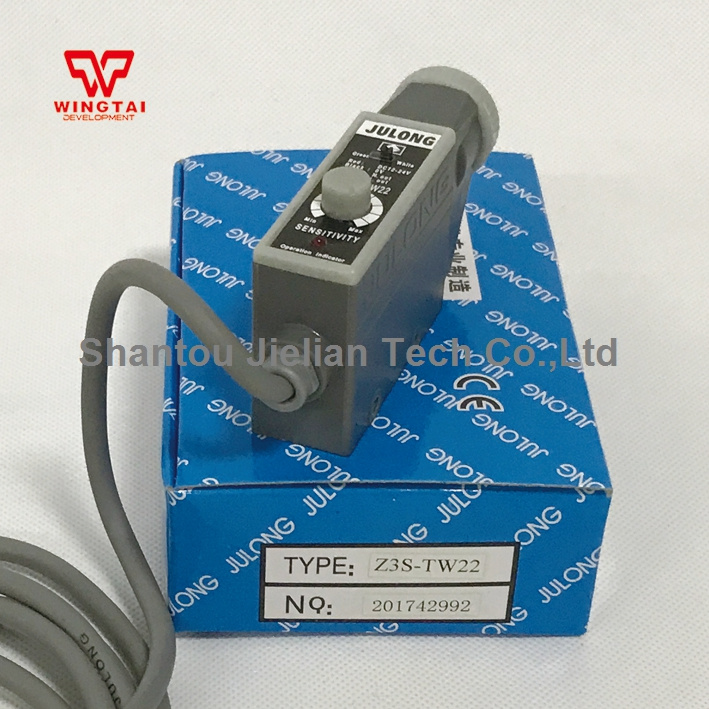

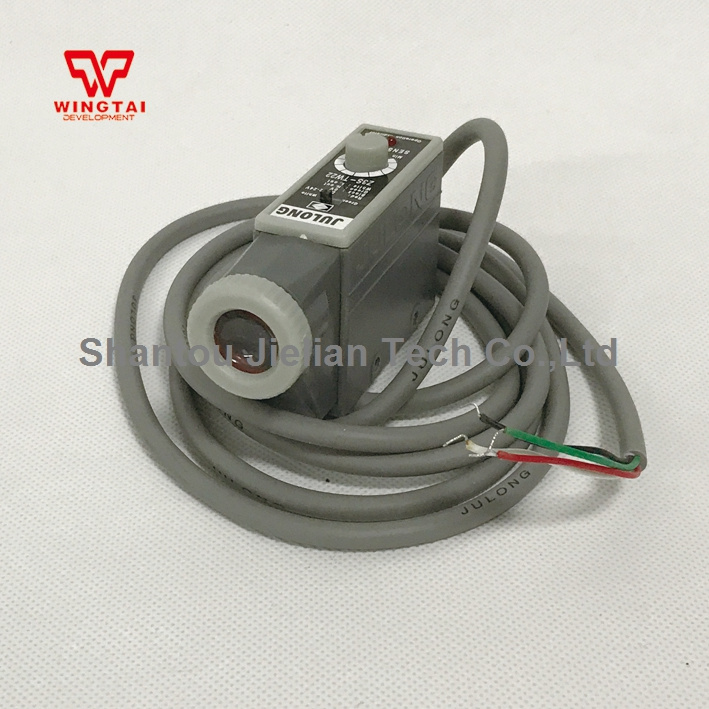

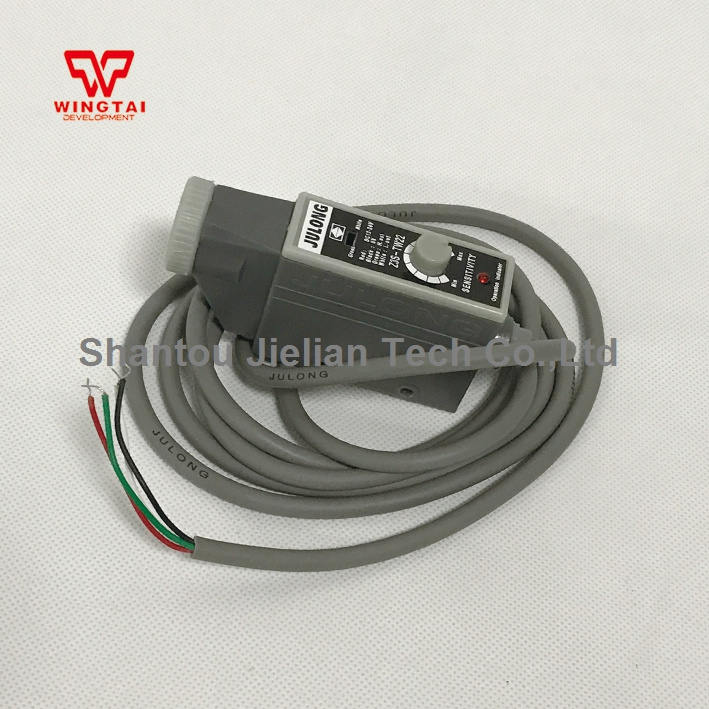

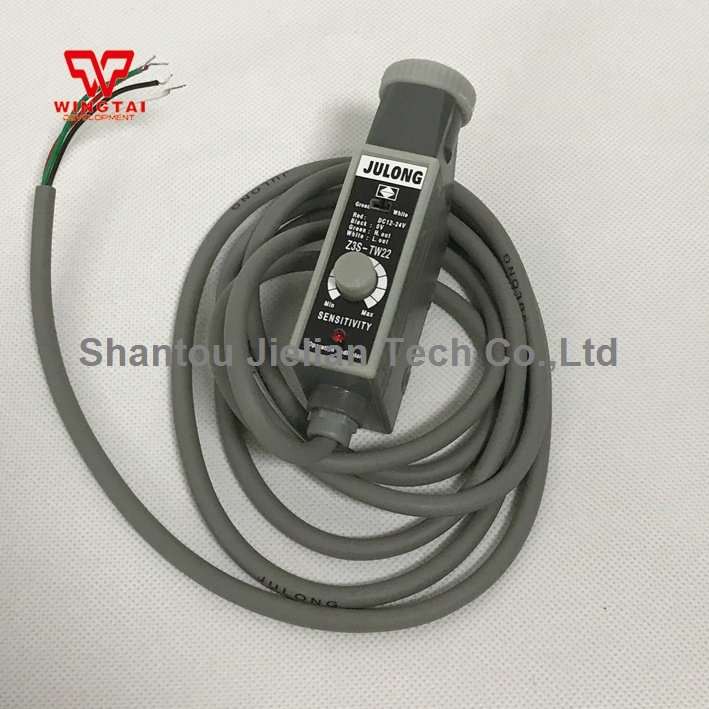

Julong Photo-electricity Eye Z3N-TB22 Brand: JULONG/dragon
Model: Z3S - TW22
Type: photoelectric
Material: metal
Light Sources:White,Green
--Design of the introduction of German technology
--Blue light pioneered
--Output full protection
Features: 1.Z3S sign detection photoelectric switch series is issued by its own light source scans the surface of the paper was seized. Surface color due to the different amount of light leaving the different transmitter loop to achieve the recognition of color-coded.
2.Coaxial optical design, high reflection coefficient of paper-based and adaptable.
3.With white, blue, green, red and other light sources optional convenience on the resolution of various colors.
4.Spot small, very high resolution.
5.The high 0.1-1ms response speed, able to adapt to a variety of packaging machines, bag machines and printing machines control needs.
6.Excellent in-circuit design, anti-kinds of electromagnetic, stray light interference, excellent performance, stable operation, and correct action.
7.Have a sensitivity adjustment knob, do not need to use tools to adjust.
Model Select Table |
Model | Light Source | Lead Type | Model | Light Source | Lead Type |
TR22 | Red | 4 cores | TR2 | Red | 3 cores |
TG22 | Green | 4 cores | TG2 | Green | 3 cores |
T22 | Red/Green | 4 cores | T2 | Red/Green | 3 cores |
TB22 | Green/Blue | 4 cores | TB2 | Green/Blue | 3 cores |
TW22 | Green/White | 4 cores | TW2 | Green/White | 3 cores |
Technical Parameter: Checking mode | Co-axial |
Checking distance | 10mm +/- 2mm |
Voltage supply | DC10-30V +/- 10% Wave <10% |
Work currency | Under 45mA |
Light source spectrum | Red, green, blue, white,optional |
Light spot | Φ0.5~Φ1.5 |
Checking angle | Vertical with surface, with 15°tolerance |
Response time | 0.1~1ms |
Output mode | Operate with light or without light |
Output indication | Red LED |
Currency load | 200mA(max) |
Circuit protection device | Vc polar protection short-circuit protection |
Anti-background light | Sunlight < 10000 Lx incandescent light<3000Lx |
Protection level | Ip67 |
Environment protection temperature | Work at -15ºC~65ºC storage -25ºC~80ºC |
Shell material | Metal |
Connection wire | Φ5.4 PVC 4-core cable L=2m |
Weight | About 500g |
Precautions:
1.Be sure to check whether the power energization before DC12-24V10% with a maximum of not more than 40V, they may damage the photoelectric switch.
2.To ensure greater stability testing to ensure that do two things: First, the rated detection distance offsets compliance, as the subject distance is 122mm, and when installed it is necessary that the subject distance is 12mm, so that the switch can upper and lower anti-vibration 4mm stable region, whereas when the object distance is 10mm, the upper and lower vibration-proof region is greatly reduced. ; Second strictly adjust the sensitivity of the procedure. And each for packaging material should not be readjusted.
3.Should be installed to prevent the direct glare into optical lenses or appropriate shielding measures.
4.The working environment temperature, humidity, vibration, shock, and other corrosive gases, are likely to affect the photoelectric switch, please note that try to eliminate these effects.
5.Usually to protect the optical lens cleaning, to avoid the lens is mounted upright facing upward, in order to reduce dust.
