Sick Photoelectric Proximity Sensor Wtb4-3p1361 PNP
| Price: |
US $ 120-135/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
WTB4-3P1361 |
| Checking Mode: |
Co-Axial |
| Checking Distance: |
12mm±2mm |
| Output Indication: |
Red LED |
| Shell Material: |
Metal |
| Power Supply Voltage: |
DC10-30V |
Product Description

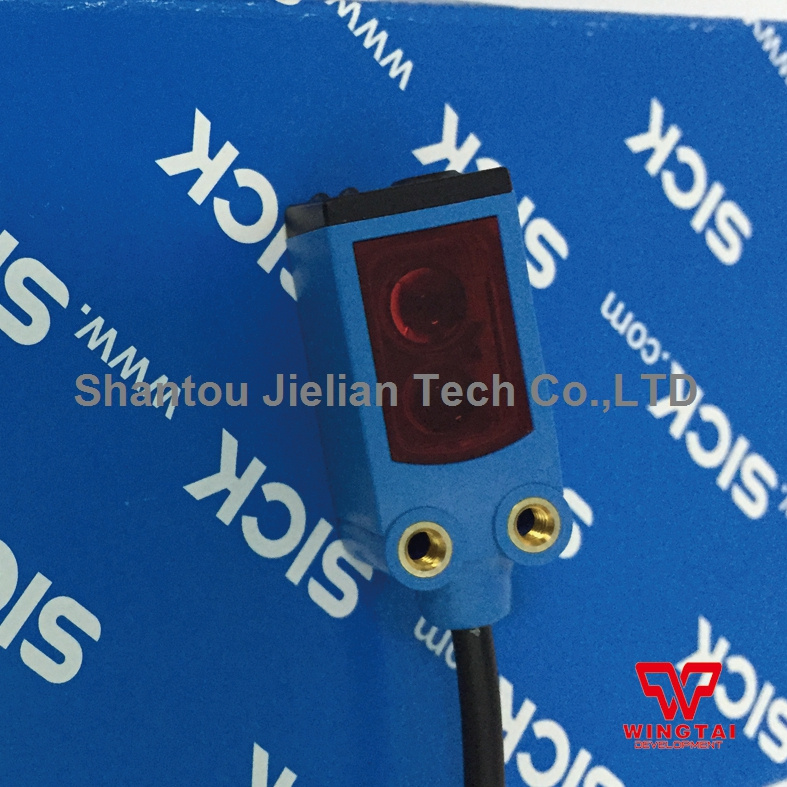

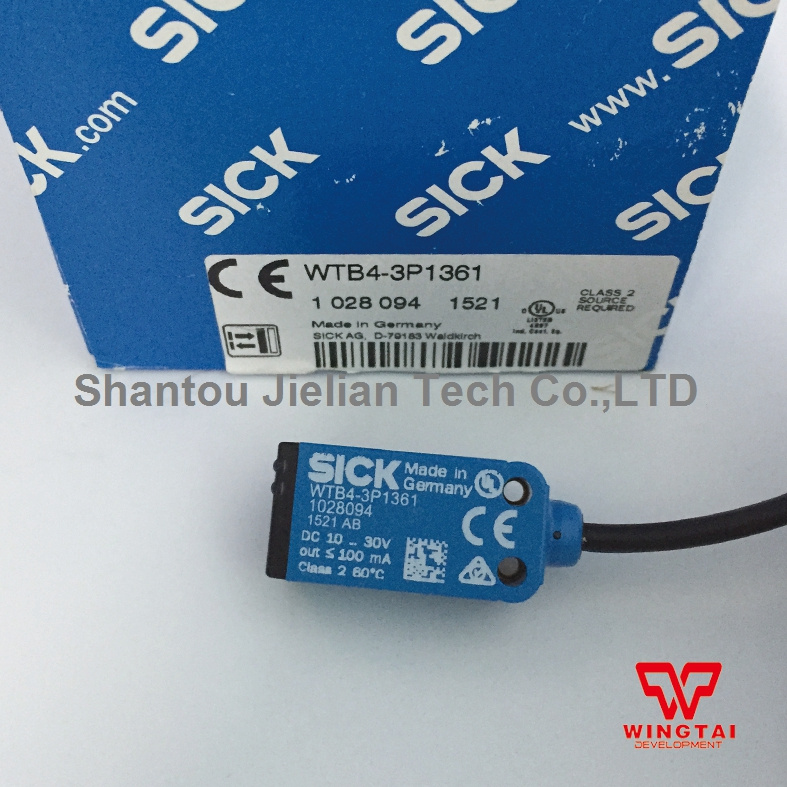

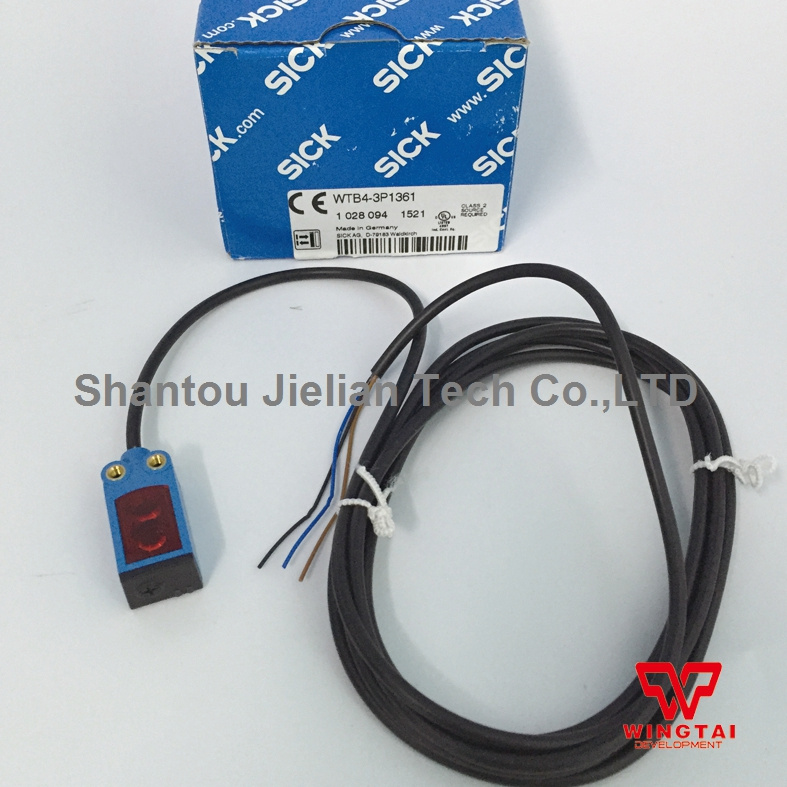

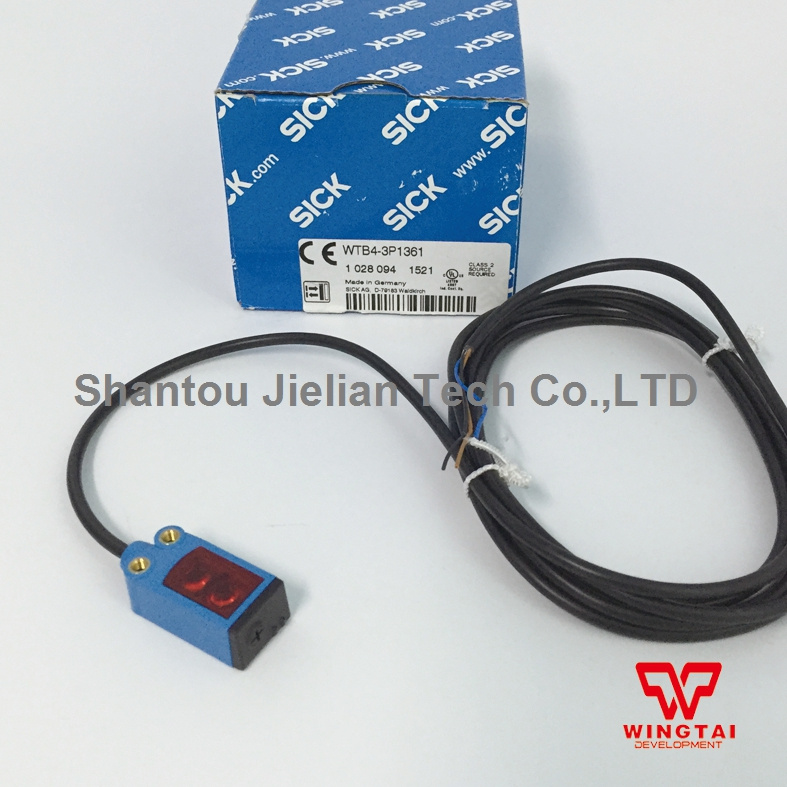

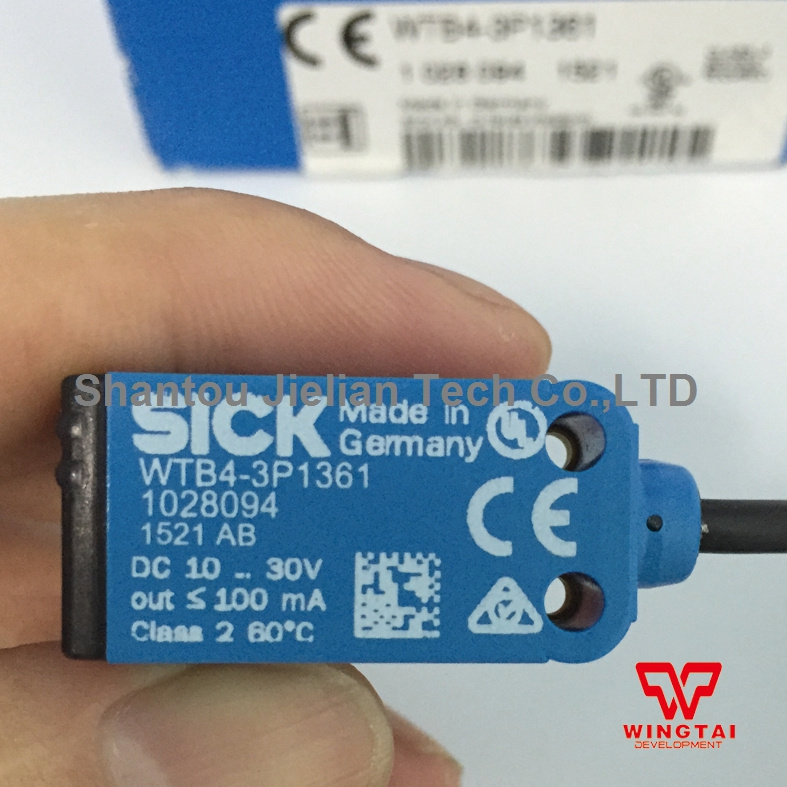

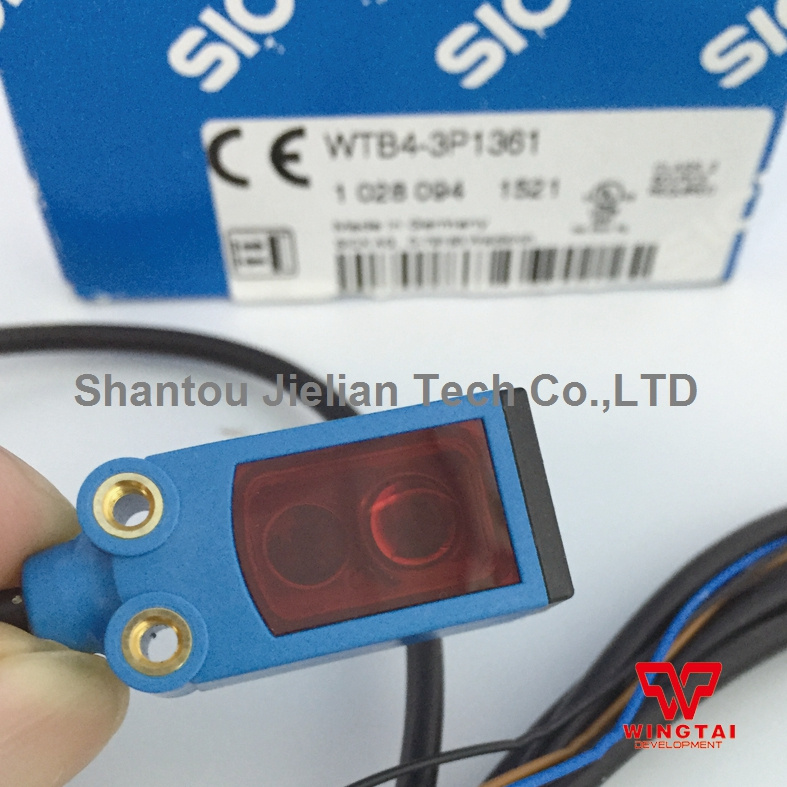

SICK Photoelectric proximity sensor WTB4-3P1361 PNP
FEATURES
| Sensor/detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 4 mm ... 150 mm 1) |
| Sensing range | 15 mm ... 150 mm 1) |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 7 mm (50 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 5 turns |
1) Object with 90 % reflectance (referred to standard white, DIN 5033)
2) Average service life: 100,000 h at TU = +25 °C.
MECHANICS/ELECTRONICS | Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Power consumption | ≤ 20 mA 3) |
| Output type | PNP |
| Switching mode | Light switching |
| Output current Imax. | ≤ 100 mA |
| Response time | < 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Cable, 3-wire, 2 m 6) |
| Cable material | PVC |
| Conductor cross-section | 0.14 mm² |
| Cable diameter | Ø 3.4 mm |
| Circuit protection | A 7) C 8) D 9) |
| Protection class | III |
| Weight | 30 g |
| Housing material | ABS
plastic |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP 67
IP 66 |
| Ambient operating temperature | -40 °C ... +60 °C |
| Ambient storage temperature | -40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
1) Limit values.
2) May not exceed or fall below Uv tolerances.
3) Without load.
4) Signal transit time with resistive load.
5) With light/dark ratio 1:1.
6) Do not bend below 0 °C.
7) A = VS connections reverse-polarity protected.
8) C = interference suppression.
9) D = outputs overcurrent and short-circuit protected.
