| Prod Model: |
KT5W-2P1116 |
| Checking Mode: |
Co-Axial |
| Checking Distance: |
12mm±2mm |
| Output Indication: |
Red LED |
| Shell Material: |
Metal |
| Power Supply Voltage: |
DC10-30V |
Product Description

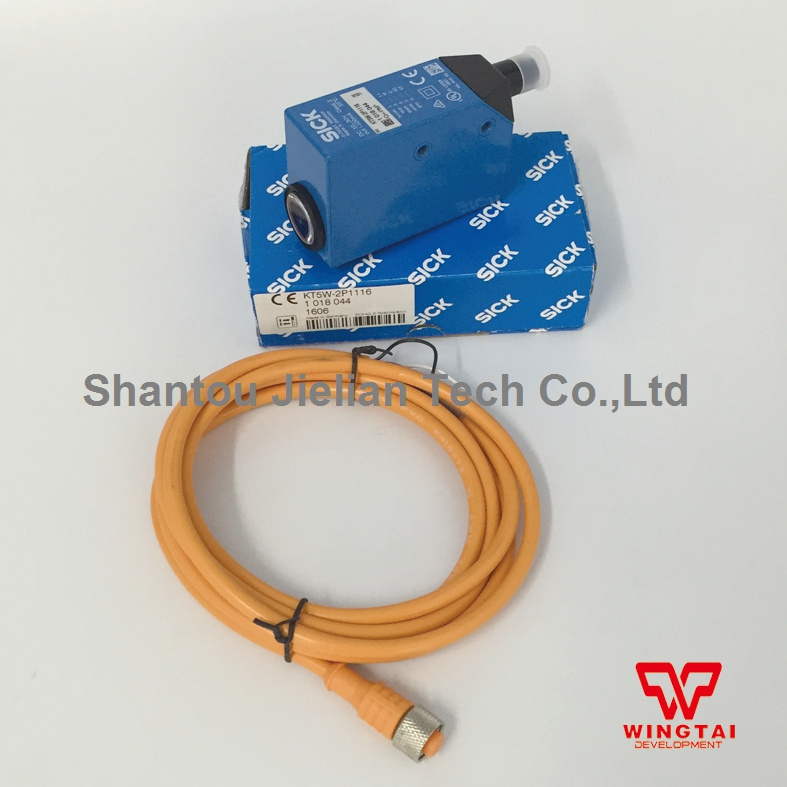

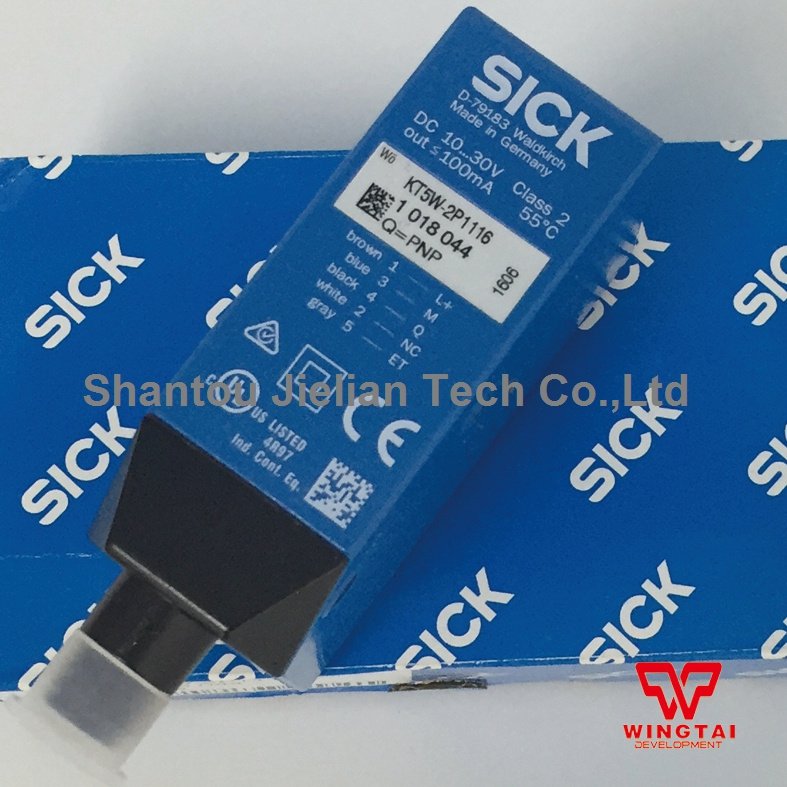

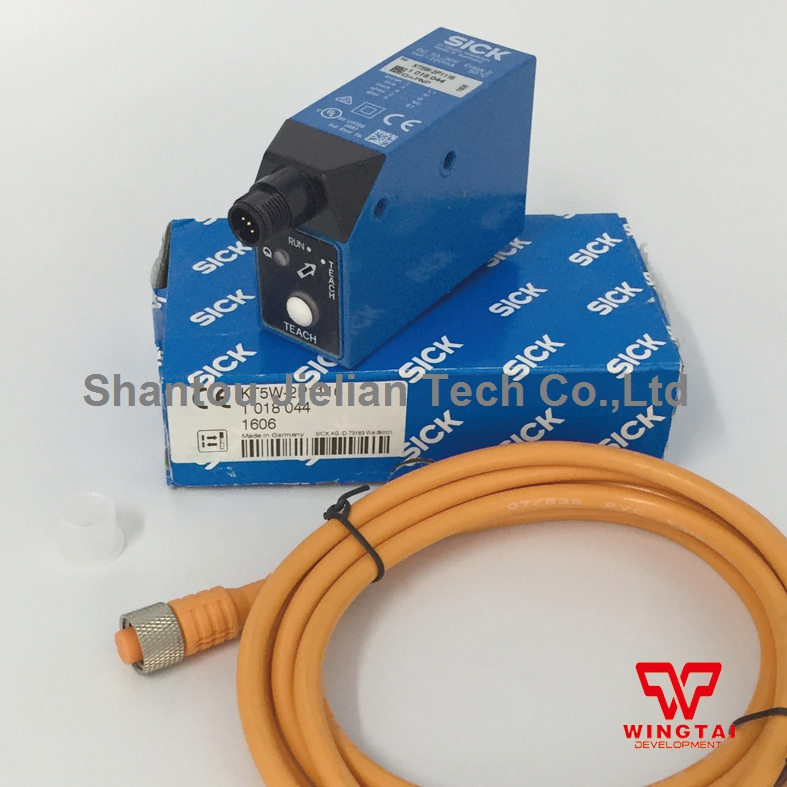

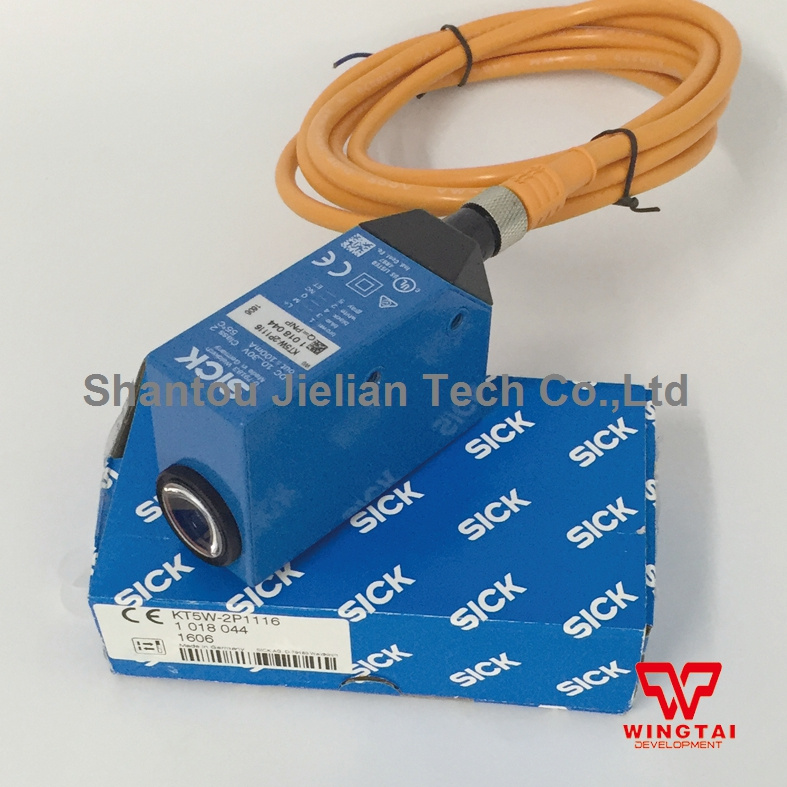

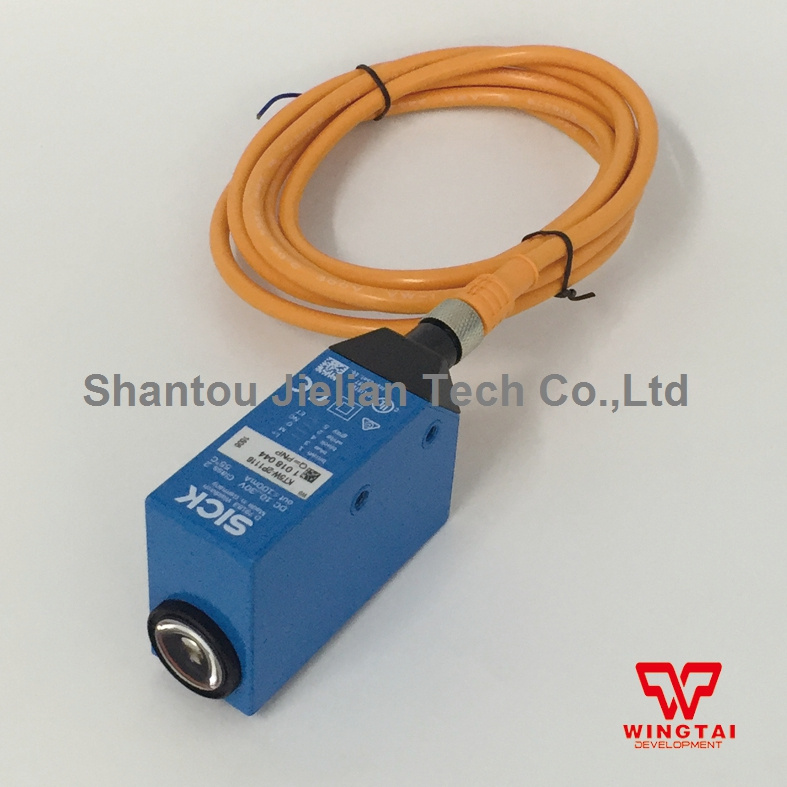

Germany Sick Sensor KT5W-2P1116 DC10-30V
Technical ParameterModel : KT5W-2P1116
Product Series : KT5
Product type : Contrast sensors
Detection distance : 10mm
Shell material : Zinc diecast
Light spot size : 1.2 mm x 4.2 mm
Dimensions : 30.4 mm x 53 mm x 80 mm
Light type : LED,RGB
Output mode : PNP
Connection : M12Plug,5pin
IP Rating : IP 67
Net weight : 400g
Product Description:
KT5-2 contrast sensors are ideal for high-precision contrast detection, such as for detecting marks on high-gloss ma-terials. Due to the 3-color LED technolo-gy, the sensors activate the best possible emitted light source for each contrast. In addition, the sensors feature application-specific teach-in processes. The sensor defines all necessary parameters auto-matically - either via the teach-in button on the device or via an external control cable. The sensor then determines the ideal switching threshold from the two gray values detected. High-precision contrast detection; automatic adaptation for high-gloss objects; sensing distances of 10 mm, 20 mm and 40 mm; a switch-ing frequency of 10 kHz; and individual alignment and mounting options make the device suitable for a wide range of tasks. Lastly, the 90° rotatable M12 plug provides simple mounting.
Features:
1.All print marks and color combinations are reliably detected, ensuring high machine throughput
2.Reliable operation, even with jittering webs and high-gloss materials
3.High positioning accuracy improves packaging quality
4.Various sensing distances, light spot directions and light emissions make individual configuration and simple integration into the production process possible
Technical Parameter
SICK - Germany |
1018044 KT5W-2P1116
Contrast scanner, LED; red, green, blue, 10mm, PNP |
Range | 10mm +/- 3mm |
Connection | M12 Plug, 5 pin |
Output | PNP |
Light source | LED; red, green, blue |
Light spot size | 1.2mm x 4.2mm |
Light spot direction | Vertical |
Housing materials | Zinc diecast |
Protection | IP67 |
Operating voltage | 10-30Vdc |
Temperature | -10 °C~ +55°C |
Other features | 2-point Teach-in, static |
