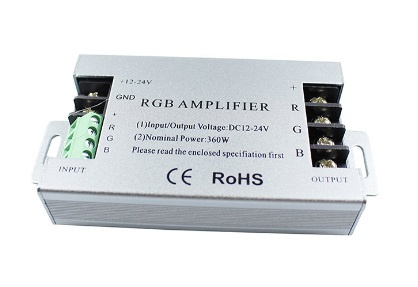

DC12V-24V 30A RGB Amplifier Controller

Power:	360W -24V
CCT:	RGB
Lead Time:	3 Working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Material:	Metal
Voltage:	12-24V
Battery Type:	No

Product Description

1. Only use high quality Aluminum and durable
2. RGB Amplifier is the assembly product of lighting controlling
3. Comb with LED Contrller, LED source light and switch power.
4. It is used to receive RGB signal from LED controller and send signal to another group of LED source.

Product Description
This RGB amplifier is suitable for all kinds of constant voltage led RGB controller. it can enlarge the led controller signal through the RGB to receive the PWM(pulse width modulation),and output the signal to the load ,then it can make the same  effect with the controller.when add each additional amplifier, can connect and controlled twice more LED lights.theoretically , one controller can connector with thousands of this RGB amplifier, and can make the same effect.

Direction for use:

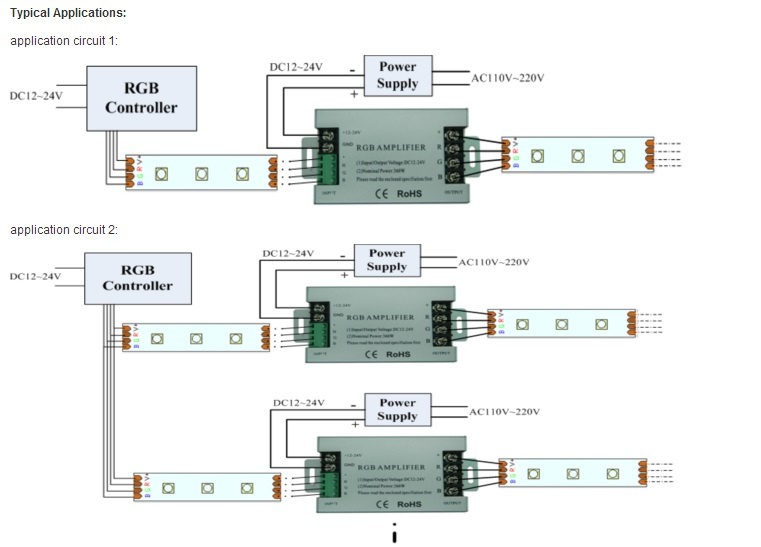

Connect the input and output wire in sequence according to the specification one the label of the amplifier, make sure that no short circuit phenomenon,then connect the amplifier to the DC12V/24V power supply , and used with the led light , the wiring diagram are as follows:





Specifications                                                                                  Working temperature:-20-60ºC
Input voltage:DC12~24V
Output:3 circuit
Connection mode:Common anode

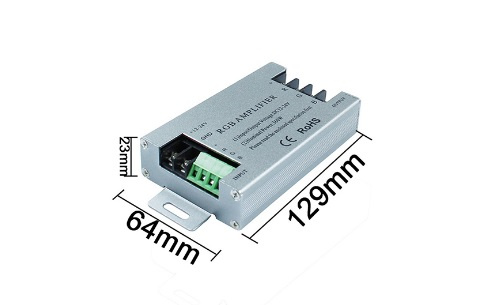

product's size:L130×W65×H25mm
package size:L135×W75×H30mm
Net weight:124g
Gross weight:144g
Static power consumption:<1W
Output current:<10A/ch
Output power: 12V:<360W;24V:<360W;
