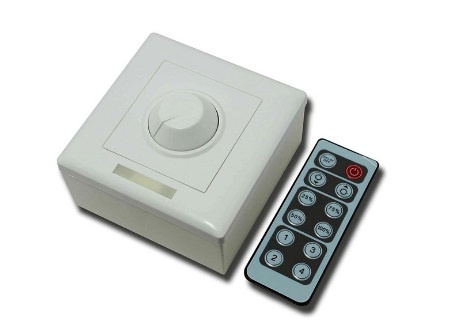

Name: LED Dimmer Controller
Brand: all-electronics-online.com
SKU: 831170905
Availability: InStock
Rating: 4.7 (96 reviews)

Price:	US $ 2.9-5/Meter
Min Order:	50/Meter
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Power:	96W
CCT:	Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
Lead Time:	3 Working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	12V-24V

Product Description

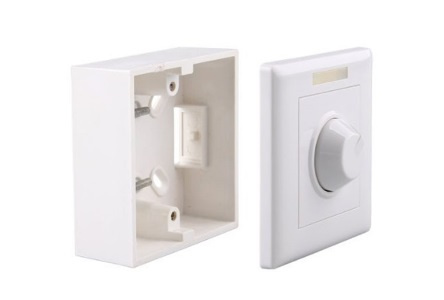

1. Standard 86-style socket, easy to install.
2. Infinite knob style dimming, easy to operate, also IR remote control.
3. Real 0~100% brightness adjust, 4096 scale levels. Comfort to human eye visual characteristic. Lamplight 4. soft and stable, without flickers, welcome to compare.
5. Automatically adapt to 12-24V working voltage.
6. Can be equipped with power repeater to expand power.

Product Description

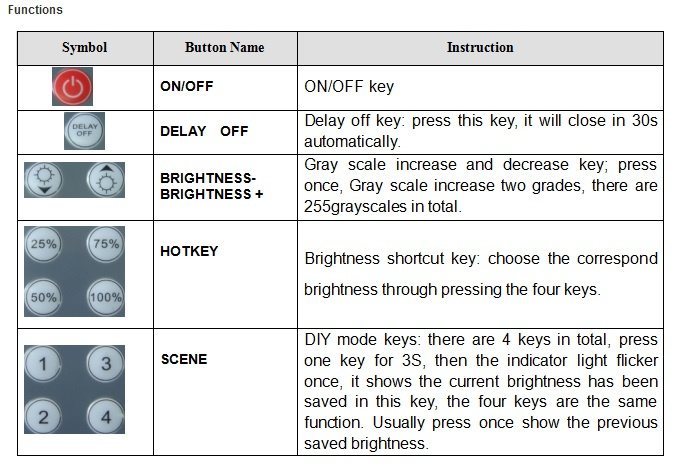

12-key Infrared Dimmer Is a dedicated intelligent LED lighting dimmer controls, Adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, You can manually adjust the brightness step-less. IR wireless remote control can also be used to remote dimming; Standards for commercial or home a low 86-type switch socket box installation, LED Dimmer switches can be installed to meet the light needs of commercial or home lighting in the different time and different environments, To extend the LED life span, energy saving; power and low-power LED lighting can be dimming. Is used to control a variety of led lamps as the light source, For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; With competitive price, easy wiring, simple to use etc.; Through the infrared remote control and dimmers on the knob to adjust brightness; Gray level 255; with custom features, delay shutdown function and a fixed gray scale output.

Specifications

Working temperature	-20-60
Supply voltage	DC5V, 12V~24V optional (specify the required voltage on orders)
0utput	1 channel
External dimension	L89W59H35 mm
Packing size	L92xW63xH62mm
Net weight	80g
Gross weight	90g
Static power consumption	<1W
Output current	<8A
Output power	5V:<40W, 12V:<96W, 24V:<96W
