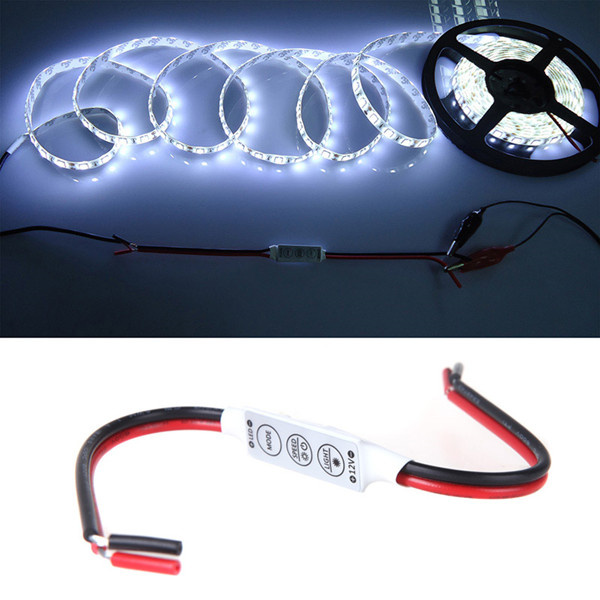

DC5-24V LED Remote Control for Single Color Strip

Prod Model:	LYD-MINI-01
Output:	1 Circuit
Net Weight:	11g
Connection Mode:	Common Anode
Static Power Consumption:	<0.5W
Output Current:	<6A
Application:	Audio / Video Players
Certification:	CE
Universal:	Universal
Material:	Plastic
Voltage:	DC5-24V

Product Description

Basic Info

Place of origin:	Shenzhen,China
output:	1 circuit
output current:	<6A
Static power consumption :	<0.5w
Output Power:	5V<30W,12V < 72W
Connection mode:	Common anode
Supply Voltage:	DC5-24V
Brand name:	louita

Product Description
Working voltage: DC12V/ DC24V
Working temperature: -20-60ºC

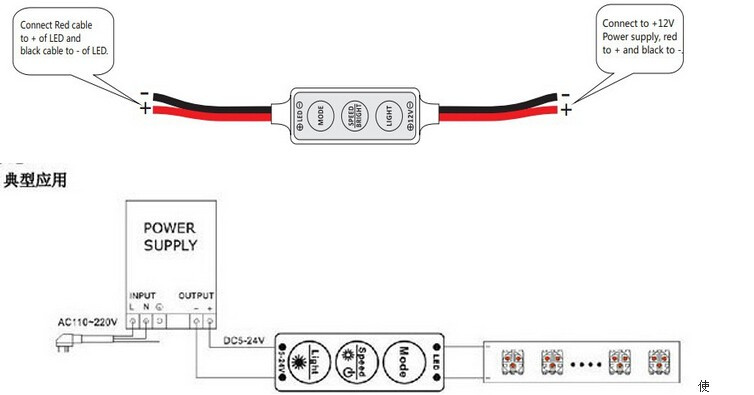

Connection mode: Common Anode(+)
Output: 1CH
Max output current: 2A/CH
Output: 72W(12V) 144W(24V)
Size: 27 * 1.2 * 0.5cm/ 10.6 * 0.5 * 0.2in
Weight: 8g/ 0.3oz

Features:
Features small size but powerful functions.
It presents 5 speed adjustment at dynamic mode and 8 dim adjustment at static mode.
Owns many kinds of modes, such as static colors, gradual changes, strobe, etc.
Auto memorizing function, saving your last setting.
Used for single color LED strip such as 5050, 3528, etc.

Operations:
MODE key: Switch to dynamic mode. Press this key again to switch among 5 dynamic modes.
SPEED/BRIGHT key: Adjust speed or brightness. At dynamic mode, press this key to change playing speed among 5 levels; At static mode, press this key to change brightness among 8 levels; Press for 2 seconds to switch on/ off.
LIGHT key: Switch to static light mode.
