| Prod Model: |
SP6-DZM-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

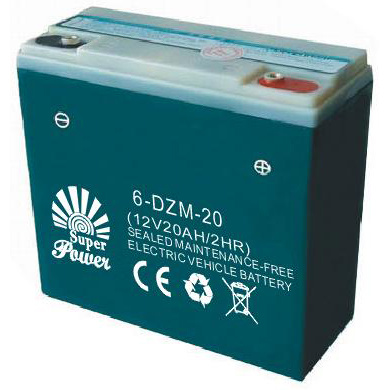

Deep Cycle Battery Nominal Voltage(V): 12V
Capacity(2HR): 20AH Deep Cycle Battery
Deep Cycle Battery Dimension(MM):
180*78*167*172(L*W*H*Total Height)
Deep Cycle Battery Weight(KG): 6.9
Structure and Features:
1. Good quality grid alloy of PbCa, corrosion resistance, little gassing rate, low water-lost.
2. Deep Cycle Battery Active-material with long life in deep-cycle and powerful discharging ability.
3. Deep Cycle Battery Plates of high energy density and good performance with large discharging current.
4. Deep Cycle Battery Advanced AGM septum: Absorbs optimum electrolytic without leaving dissociated liquid, full air cathode absorption and can be placed in any position.
5. The cover and the container are made from high strength ABS, sealed with epoxy resin, no acid leakage.
6. The electrolyte are made of high-purity sulfuric acid and various addictives.
7. Deep Cycle Battery Maintenance-free in the used period.
8. Deep Cycle Battery The cycle times are more than 250 for 100% depth of discharge, more than 350 for75% depth of discharge and more than 450 for 50% depth of discharge.
9. Lead-Calcium six alloy sheet grating and coated mounding plate electrode: Big capacity and long life.
10. Deep Cycle Battery Lead-Tin multiple alloy bus bars: Small internal Resistance, corrosion resistance and can stand long term floating charging.
11. Silicon-Fluorin rubber sealed safety cap: Safe and flameproof without leakage of corrosive gas and liquid.
12. Deep Cycle Battery Copper Plating Silver terminals: Small contact electrical resistance and rustproof.
13. Negative absorption type hermetically-sealed construction: No need to add distilled water and electrolyte by compounding accumulator gas into water without any maintenance.
14. Comprehensive Line-Up.
15. Economical
16. Deep Discharge Recovery
| Deep Cycle Battery |
| Deep Cycle Battery Model | Nominal
Voltage
(V) | Nominal Capacity (AH) | Dimensions | Weight |
| Length | Width | Height | Total Height |
| mm | mm | mm | mm | kgs |
| SP6-DZM-10 | 12 | 10 | 151 | 99 | 94 | 99 | 4 |
| SP6-DZM-12 | 12 | 12 | 151 | 99 | 94 | 99 | 4.2 |
| SP6-DZM-14 | 12 | 14 | 151 | 99 | 94 | 99 | 4.4 |
| SP6-DZM-18 | 12 | 18 | 180 | 78 | 167 | 172 | 6.4 |
| SP6-DZM-20 | 12 | 20 | 180 | 78 | 167 | 172 | 6.9 |
| SP6-DZM-24 | 12 | 24 | 166 | 125 | 174 | 174 | 7.9 |
