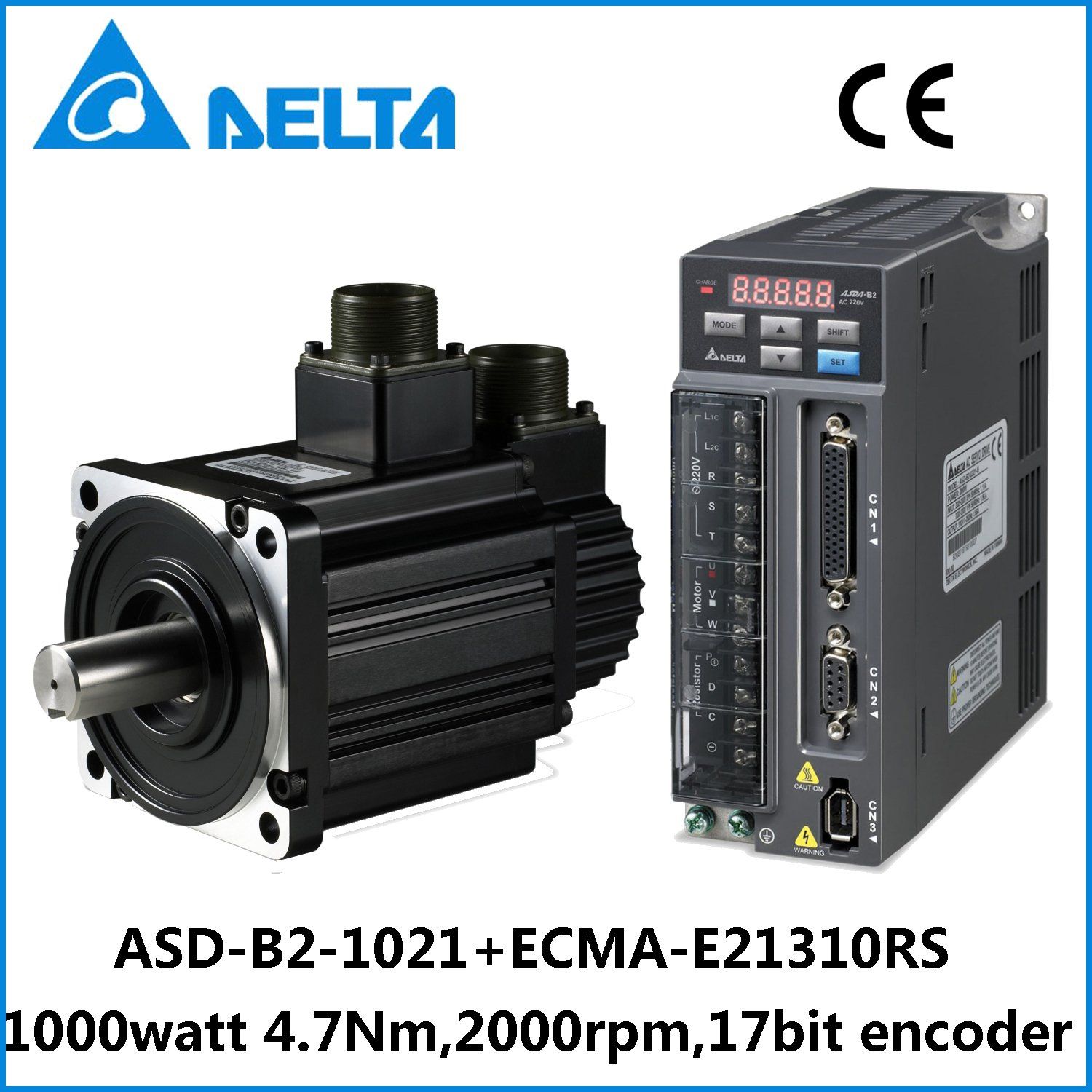

Delta B2 1kw 17bit Encoder AC Servo Motor and Driver

Name: Delta B2 1kw 17bit Encoder AC Servo Motor and Driver
Brand: all-electronics-online.com
SKU: 725494682
Availability: InStock
Rating: 4.6 (25 reviews)

Price:	US $ 460-510/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ECMA-E21310RS+ASD-B2-1021
Power:	1000 Watt
Rated Torque:	4.77 Nm
Rated Speed:	2000rpm
Encoder:	17bit Incremental Encoder
Power Supply:	Single/3phase 220V
Control Model:	Position ,Velocity, Torque Control
Communication:	RS485/RS232
Position Control:	Pulse Control ,Inner Register
Velocity Control:	-10~+10V Anlog, Inner Register
Torque Control:	-10~+10V Anlog, Inner Register
Number Of Stator:	Three-Phase
Function:	Position
Certification:	Ce
Brand:	Delta

Product Description

Spec. table of Delta Ac Servo Motor

Model	ECMA-E21310RS	ECMA-E21315RS	ECMA-E21320RS
Rated Power	1000watt	15000watt	2000watt
Rated Torque	4.77Nm	7.16Nm	9.55Nm
Max. Torque	13.4Nm	21.46Nm	28.65Nm
Rated speed	2000rpm
Max. Speed	3000rpm
Rated current	5.6A	8.3A	11.01A
Inertia	8.41X10^-4kgm^2	11.18X10^-4kgm^2	14.59X10^-4kgm^2
Mechnical constant	1.51	1.1	0.96
Weight	7.0kg	7.5kg	7.8kg
Brake	Optional

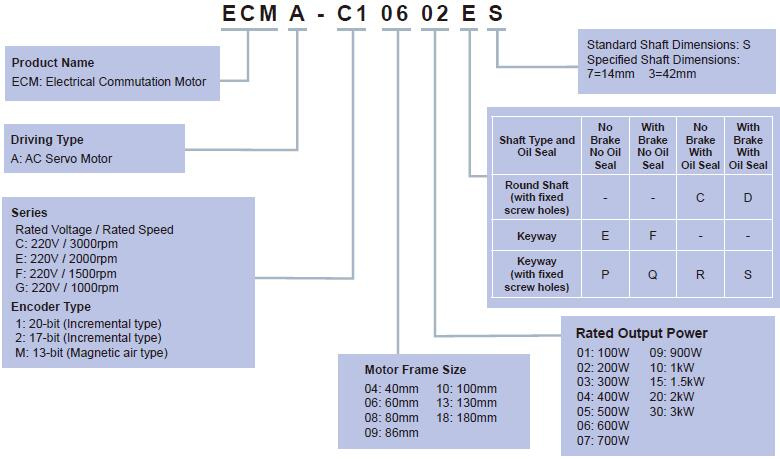

AC Servo motor name ruler

Description of Delta ac servo motor

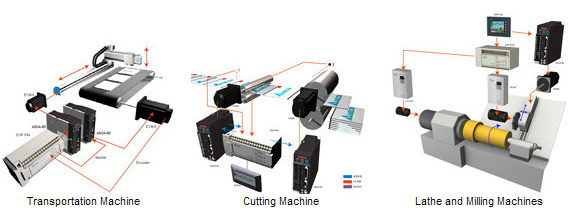

Application

Specifications
High-resolution encoder with 17-bit (160,000 p/rev) is equipped as a standard feature which satisfies the application needs of high precision positioning control and stable rotation at low speed.

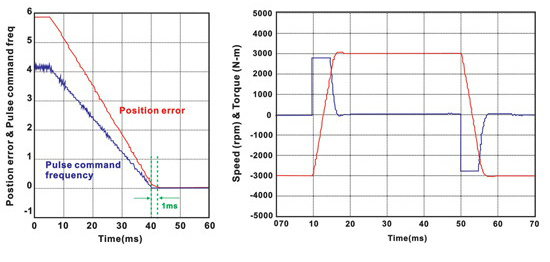

Satisfy High Precision Positioning Requirements

Support pulse input (up to 4Mbps) and analog voltage two kinds of command.
Built-in position, speed and torque three control modes (speed and torque mode could be controlled via internal parameters or analog voltage command).
There auto notch filters are provided to suppress the mechanical resonance automatically and make the system operate more smoothly.

Offer Easy-To-Install Solution for Simple Start-Up

Motor sizing software is offered for the customers to conduct the estimation of the equipment conveniently.
ASDA-Soft configuration software (tuning software) is provided for the customers to meet the performance requirements quickly.

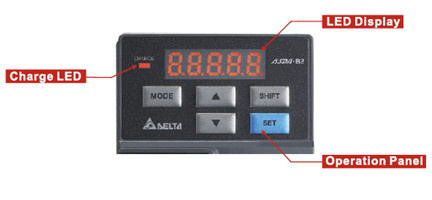

Easy-to-use digital keypad is ideal for setting parameters and monitoring the servo drive and motor directly.
Servo motor provides brake, oil seal etc. optional configurations for the requirements of different applications.

Reduce Maintenance and Wiring Cost for Versatile Operation

Existing power cables and encoder cables for ASDA series could be used still. When upgrading, there is no need to purchase new accessories.

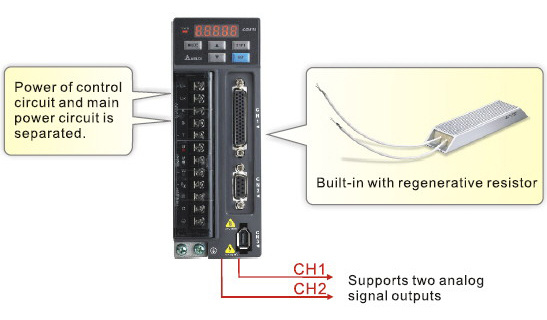

The control circuit and main power circuit is separated, safety is increased and maintenance is much easier.
400W and above servo drive is built-in with regenerative resistor, significantly save the wiring and cost.
Two analog input terminals (CN5) are provided, easily monitor and the status of the servo motor.
