Delta B2 200W 17bit Encoder AC Servo Motor and Driver

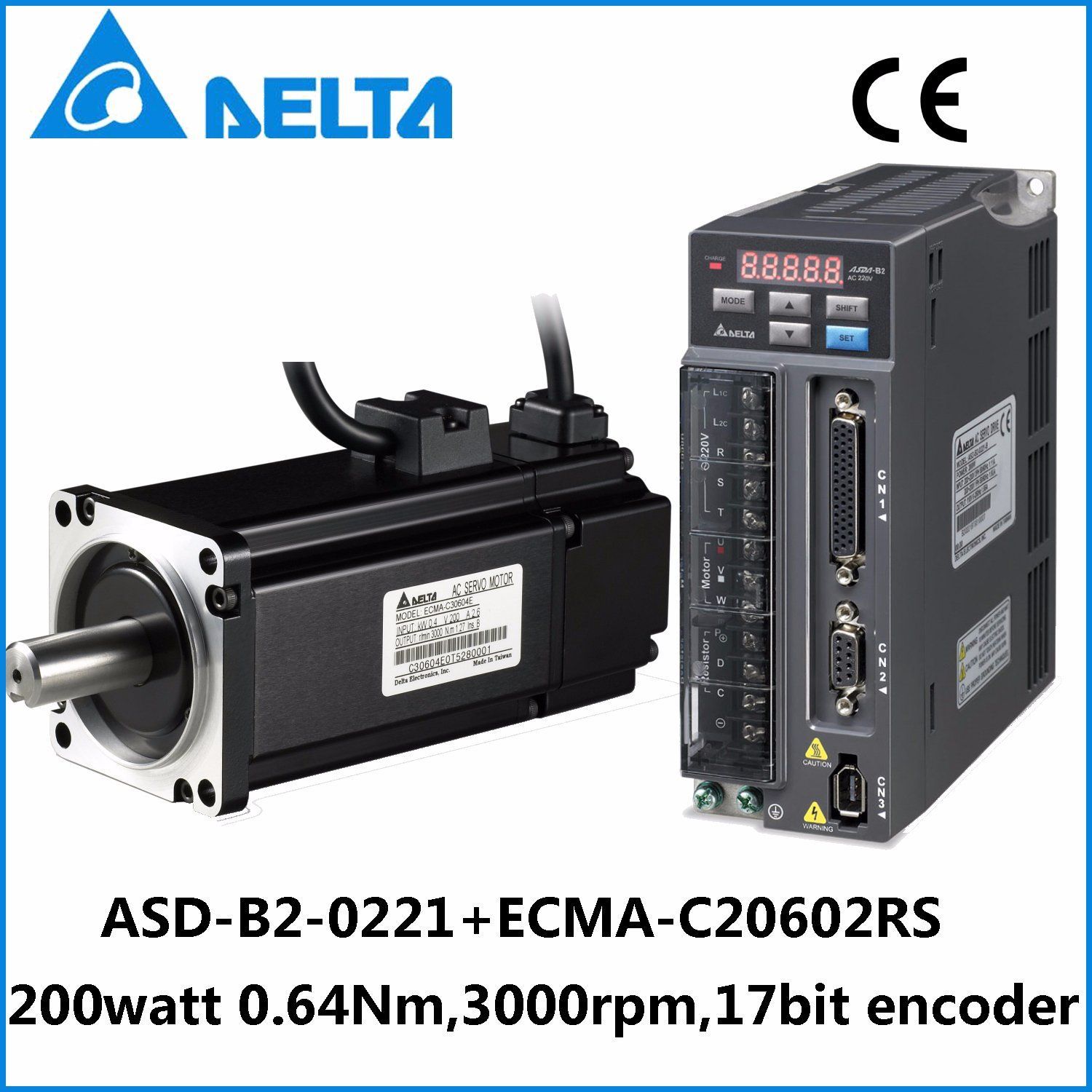

Name: Delta B2 200W 17bit Encoder AC Servo Motor and Driver
Brand: all-electronics-online.com
SKU: 689126811
Availability: InStock
Rating: 4.3 (144 reviews)

Price:	US $ 285-350/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ECMA-C20602RS+ASD-B2-0221
Power:	200watt
Rated Torque:	0.64nm
Rated Speed:	3000rpm
Encoder:	17bit Incremental Encoder
Power Supply:	1/3phase 220VAC
Control Model:	Position, Velocity, Torque Control
Communication:	RS485/RS232
Position Control:	Pulse Control, Inner Register
Velocity Control:	-10~+10V Anlog, Inner Register
Torque Control:	-10~+10V Anlog, Inner Register
Number Of Stator:	Three-Phase
Function:	Position
Certification:	Ce
Brand:	Delta

Product Description

Spec. table of Delta Ac Servo Motor

Model	ECMA-C20602	ECMA-C20604	ECMA-C20807
Rated Power	200w	400w	750w
Rated Torque	0.64Nm	1.27Nm	2.39Nm
Max. Torque	1.92Nm	3.82Nm	7.16Nm
Rated speed	3000rpm
Max. Speed	5000rpm
Rated current	1.55A	2.6A	6.1A
Inertia	0.177 X10^-4kgm^2	0.68 X10^-4kgm^2	1.13 X10^-4kgm^2
Mechnical constant	0.8ms	0.49ms	0.47ms
Weight	1.2kg	2.1kg	3.0kg

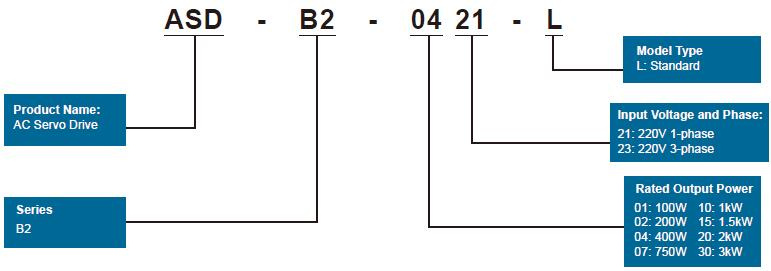

AC Servo motor name ruler

Description of Delta ac servo motor

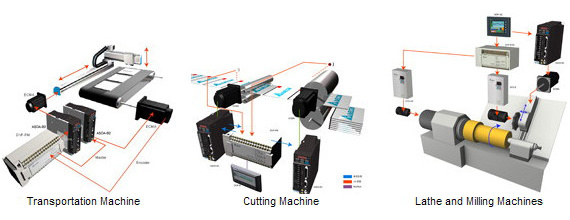

Application

Specifications

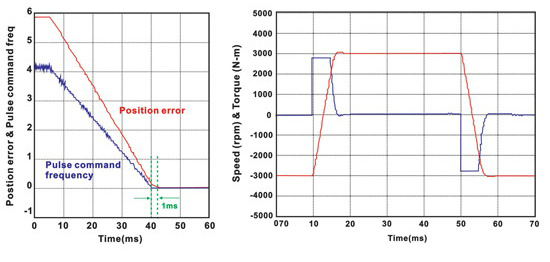

High-resolution encoder with 17-bit (160,000 p/rev) is equipped as a standard feature which satisfies the application needs of high precision positioning control and stable rotation at low speed.

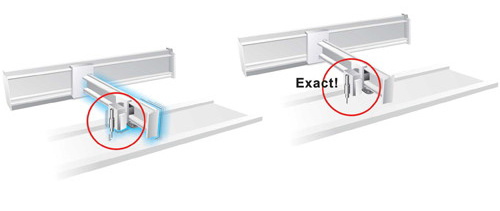

Satisfy High Precision Positioning Requirements

Support pulse input (up to 4Mbps) and analog voltage two kinds of command.
Built-in position, speed and torque three control modes (speed and torque mode could be controlled via internal parameters or analog voltage command).
There auto notch filters are provided to suppress the mechanical resonance automatically and make the system operate more smoothly.

Offer Easy-To-Install Solution for Simple Start-Up

Motor sizing software is offered for the customers to conduct the estimation of the equipment conveniently.
ASDA-Soft configuration software (tuning software) is provided for the customers to meet the performance requirements quickly.

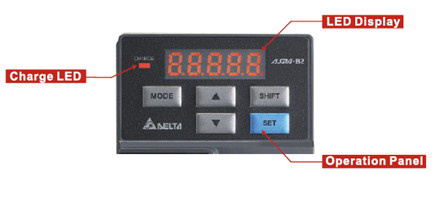

Easy-to-use digital keypad is ideal for setting parameters and monitoring the servo drive and motor directly.
Servo motor provides brake, oil seal etc. optional configurations for the requirements of different applications.

Reduce Maintenance and Wiring Cost for Versatile Operation

Existing power cables and encoder cables for ASDA series could be used still. When upgrading, there is no need to purchase new accessories.

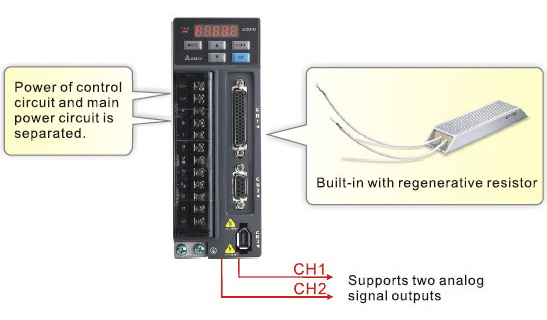

The control circuit and main power circuit is separated, safety is increased and maintenance is much easier.
400W and above servo drive is built-in with regenerative resistor, significantly save the wiring and cost.
Two analog input terminals (CN5) are provided, easily monitor and the status of the servo motor.
