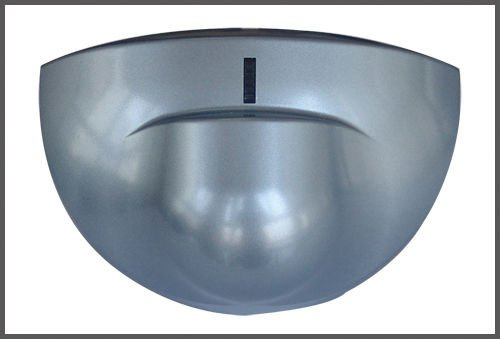

Deper Automatic Door Microwave Cgs-P004 Motion Sensor

Name: Deper Automatic Door Microwave Cgs-P004 Motion Sensor
Brand: all-electronics-online.com
SKU: 695923432
Availability: InStock
Rating: 5 (133 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL-6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frenquency:	24G
Type:	Infrared Sensor Switch
Wires:	Two-Wires
Standard:	Standard
Application:	Corridor
Size:	86 Type
Certification:	CE
Principle:	Microwave Sensor

Product Description

Specifications

motion sensor
with microwave technology
Microwave and microprocessor technology
24G Hz

Deper automatic door microwave CGS-P004 motion sensor

1. Technology :Microwave and microprocessor

2. Transmitter frequency :24.125GHz

3. Transmitter radiated power :<20dBm EIRP

4. Transmitter power density :<5mW/c

5. Maximum mounting height :3m

6. Tilt angles :0º to 90º vertical and -30º to +30º lateral

7. Detection field(mounting height=2.2m) :6m(W)×2m(D)

8. Detection mode :motion

9. Minimum speed :5 cm/s(measured in the sensor axis)

10. Supply voltage : 12V to 24V AC/DC +30%/-10%

11. Mains frequency :50 to 60 Hz

12. Power consumption : <2W(VA)

13. Output relay(free of potential change-over contact)

14. Max. contact voltage :42V AC-60V DC

Max. contact current :1A(resistive)

Max. switching power :30W(DC)/60VA(AC)

15. Hold time : 0.5s

16. Temperature range : -20ºC to +55ºC

17. Degree of protection: IP52

18. Material :ABS

19. Color of housing : Black smoked, Aluminium finish

20. Dimensions : 120mm(W)×80mm(H)×50mm(D)

21. Weight : 0.210kg

22. Length of cable : 2.5m

DEPER Automatic Door is a company integrating the research and development, design, manufacture, sales, installation and service of integrated professional automatic doors.

Products include Sliding Auto-Doors, Swing Auto-Doors, Auto-Revolving Doors, Hermetic Auto-Doors, Cured Sliding Auto-Doors and Telescopic Door and Folding Auto-Doors.

DEPER doors are widely applied and efficiently operated in office buildings, public buildings, hotels and restaurants, homes, hospitals, banks, supermarkets, airports and railway stations and factories in Asia, Europe, Australia, America and Africa.

DEPER are adhering to the spirit of "honest, truthful, fair and innovative". With new management concept and quick and considerate service, we provide users with products with first-class quality and perfect appearance. We also expect to cooperate sincerely with friends from all circles on the equal and mutually beneficial basis.

DEPER expects to share scientific and technological achievements with you.

DEPER from now on is the PRODUCTION BASES OF AUTOMATIC DOORS in China! !

DEPER welcome you to join us!
