Deper Notouch Infrared Hand Sensor for Automatic Door

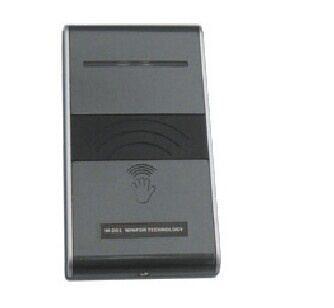

Name: Deper Notouch Infrared Hand Sensor for Automatic Door
Brand: all-electronics-online.com
SKU: 695924402
Availability: InStock
Rating: 4.4 (25 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	M201
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	70g
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	Two-Wires
Standard:	Standard
Application:	Corridor
Size:	118 Type
Certification:	CE

Product Description

Specifications

inductive door switch
1. CE & ISO certificate
2. Manufacturer
3. 2 years guarantee period
4. Function

Deper automatic hand inductive door switch

Specifications
1.Non-contact induction design, clean and easy to open the door.
2.With Competitive price by original maufacturer
3, OEM/ODM
No Touch Infrared hand Sensor for automatic door opening with high quanlity

The Overall Characteristics
1.Adopt infrared modulation-demodulation, interference signal will not be caused.
2.With the non-contact induction design, door can be open in an easy and clean way.
3.Transmit distance is adjustable from 1 to 15 cm, can be set according to actual occasion.
4.Low-power consumption design with long service life.
5.Adopt high-sensitivity infrared tubes, quick response for door opening.
6.Installation with hidden screw hole, the appearance with the sense of science.
7.With dry contact signal output, easy to link with various gate equipment.
8.Instruction with indicator light.

Technical Parameters

Power supply	AC/DC 12V-36V
Static current	62mA
Action current	115mA
Transmit distance	1–15cm adjustable
Operation Frequency	38KHZ
Environment humidity	10-90%RH
Dimensions	113mm(L)x63mm(W)x20mm(H)
Fixed way	The hidden screw fixed
