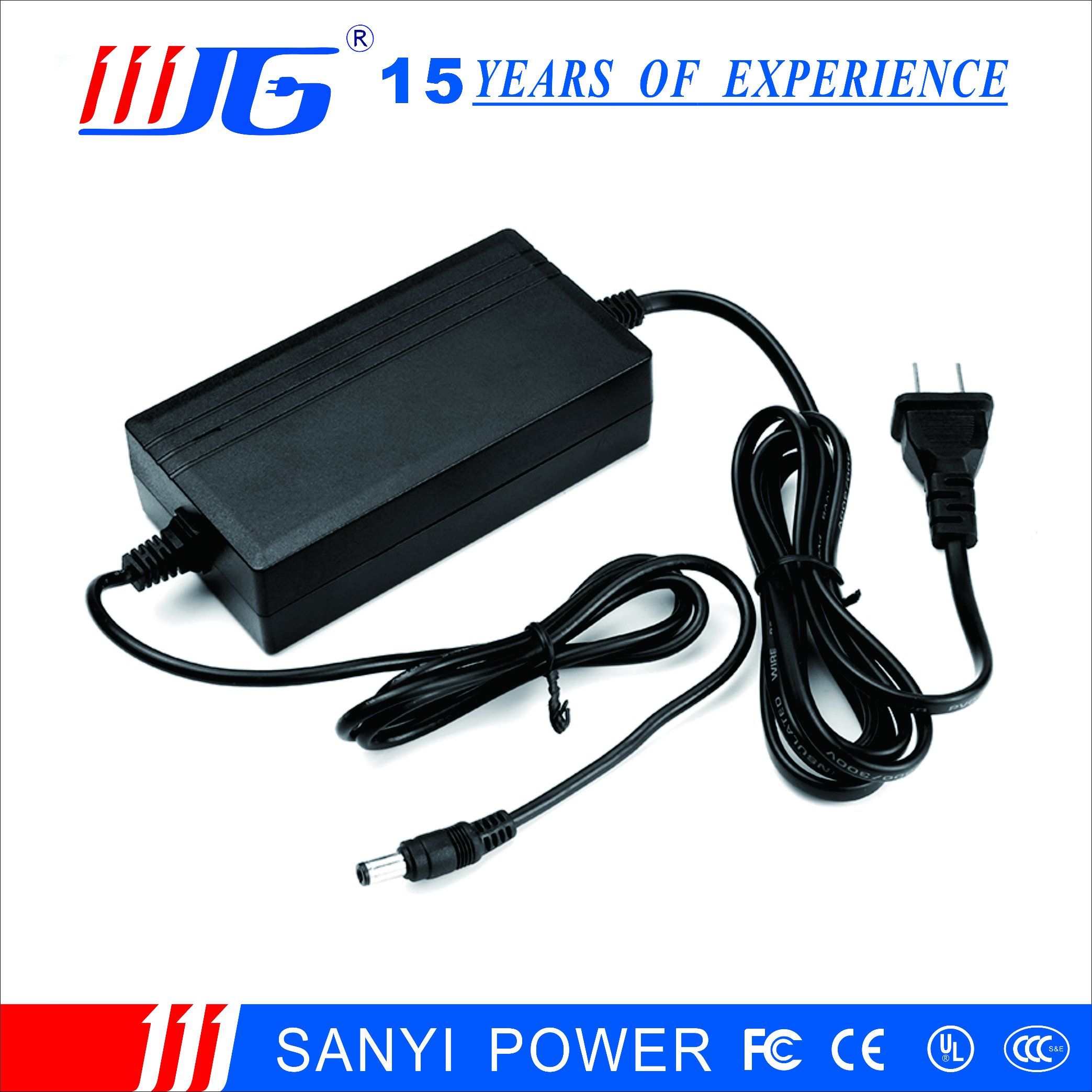

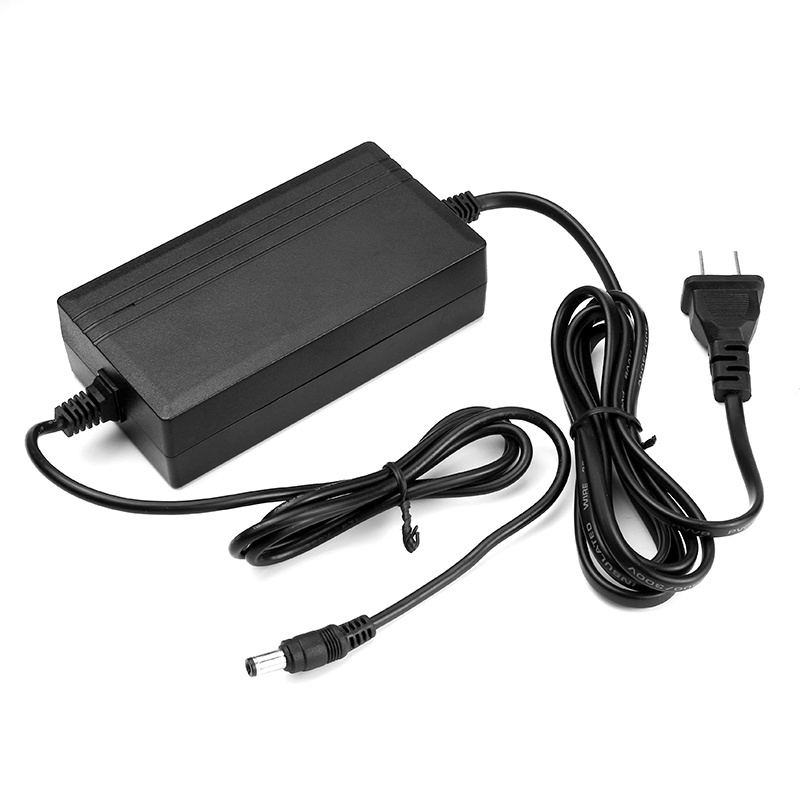

Desk-Type Output 12.6V5a Battery Charger Power Adapter

Name: Desk-Type Output 12.6V5a Battery Charger Power Adapter
Brand: all-electronics-online.com
SKU: 824522275
Availability: InStock
Rating: 4.6 (42 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL1371-TC100-12605
Input Voltage:	110V-240V
Input Frequency Range:	50/60Hz 1.5A(Max)
Usage:	CCTV
Output Type:	AC or DC
Connection:	Desktop
Power Source:	Double End Type
Type:	OEM/ODM
Brand:	Sanyi Power

Product Description

Lithium Battery Charger (AC/DC)
1.Product Description:
Input: AC 100V-240V 50/60HZ 1.5A(Max)
Output: DC 12.6 5A
PS: Red light means charing
Blue light means charge full or disconnect
Note: Please charge in a dry please
Warning:Please do not open due to the high voltage
^{>Protections: Short circuit / Over load / Over voltage
>Fully enclosed plastic case}
^{ELECTRICAL CHARACTERISTICS}
^{>Efficiency: >= 85%
>Turn-On Delay Time:300mS
>Load Regulation: 5% max.
>Hold-up Time: 5mS min.
>Dielectric Strength:(Hi-Pot):Between AC input and secondary applied AC 3.0kV,test time 1 minute, and cut off current shall be less than 10 mA.AC 3.0kV,test time 10 Sec.for mass production.
>Insulation Resistance: Between AC input and secondary applied 500Vdc,test time 1 minute. 500Vdc,test time 10 Sec.for mass production. ≥100MΩ}
^{ENVIRONMENTAL}
^>^{Operating Temperature: 0 to 50oC
>Storage Temperature: -40 to 85oC}
^{>Relative Humidity: 5 to 95%}
2.PRODUCT APPLICATION :
Our battery charger,power adapter are widely used in battery pack E-bike, Electric Golf Cart, Electric Vehicle, Electric Toys, Power tools, Motor, Massage, Equipment, Monitoring System, Beauty instruments, medical instruments, Safety Security Products, Humidifier, Water-pump, Wheel Chair, Self-balance Scoober, Air Cleaner, Print Device, Precise Digital Measuring Apparatus, Audio Amplifier, LED Lighting, Digital Communication Products, LCD, LED Display ,etc

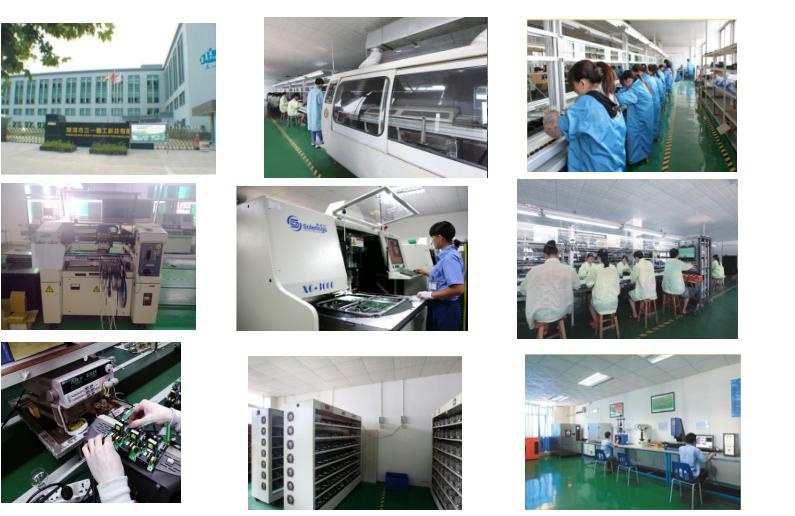

3.Factory Profiles

4.Certificate

5.Contact
SHENZHEN SANYI TECHNOLOGY CO.,LTD
Web: www.szsanyi.com

Phone\:+86 15207552952
Tel: +86 755 28986673
Add: Floor 4, Block 1,HongJiaTai Industrial Area, XinTun Village,AiLian Community, LongGang District,Shenzhen 518172,China

SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.

We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.

We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
