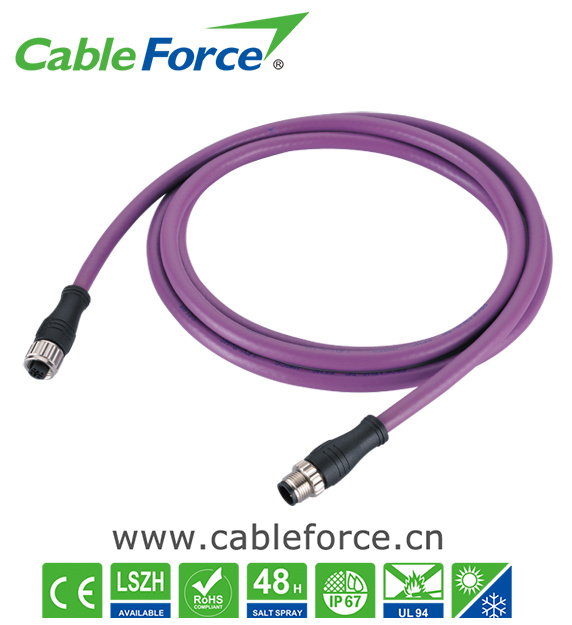

Devicenet Cable M12 Male to Female Electrical Plug Waterproof Connectors
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
DVN-MC05C3LSG3AB25/34 |
| Standard: |
Devicenet |
| Connection Type: |
Double Ended Cable |
| Shielding: |
Available |
Product Description
Devicenet Cable M12 Male to Female electrical plug waterproof connectors
1.DescriptionsCABLEFORCE mainly developed the 18AWG THICK cable with 7/8" Mini change 5 Pin connectors and the 24AWG THIN cable with M12 5 Pin connectors. The cable specification based on the ODVA DeviceNet standard,that is 2C power wires + 1 pair twisted signal wires with EMI shielding design,CABLEFORCE provides both TPU and PVC material with black, grey, and RAL4001 violet colors for cable jacket options. During the products design and development we took lots of application factors into consideration, such as: waterproof, harsh temperature shocking, hydrolysis resistant, oil resistant, anti-chemical, corrosion resistance, UV resistance, abrasion resistance, plug mating force and endurance performance.
2.Electronical and material dataRated current: 4ARated voltage:60VInsulation resistance:≥100 MΩContacts resistance:≤ 5 mΩContacts plating:Gold plated, thickness 3μ"Insert/ Housing:TPUCoupling nut/screw:Brass with nickel plated screwOvermold/ Shell:TPUConnector contacts:Brass with gold platedCable jacket material:PUR
| Number of contacts | 5 pin | Coding | A-coding |
| Orientation | Straight | Termination | Soldering |
| Wire termination | Soldering | IP rating | IP67 |
| Wire insulation | Foam PE | Sealing | O-ring |
3.ApplicationsThe DeviceNet™ network provides open, device-level control and information networking for simple industrial devices. It supports communication between sensors and actuators and higher level devices such as programmable controllers and computers. There are 4 types of standard DeviceNet cables: thick, medium, thin and flat. Most commonly used are the thick cable for the trunk line and the thin cable for the drop line. The most used DeviceNet thin and thick cables have 5 conductors. Power Taps can be added at any network point, making possible obtaining redundancy on network power source. The trunk line current is 8 amp on a thick wire and 3 amp maximum current on a thin wire. An optic isolated project option allows for externally energized devices (e.g. startup of AC drivers and solenoid valves) sharing the same bus cable. Other CAN-based networks provide only a single power source for the entire network.
4.Similar product
5.Product certificate
6.Our companyCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

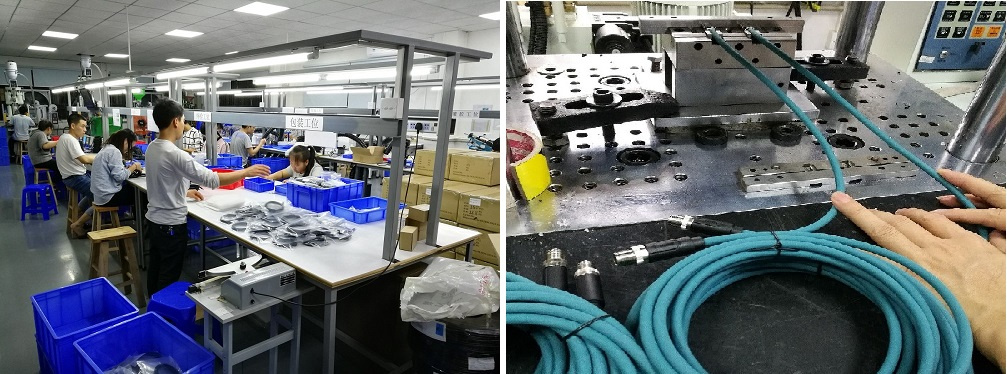

Workshop
7.Product packing(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery: 1~ 3 weeks
8.Our servicewe supply M5 M8 M12 cable connectors and sockets,phoniex Pluggable Terminal Block,heavy duty circular connector,and other many kinds of terminals. If you need cable harness,we also can supply harness processing,just let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
1.We can reply your inquiry within 24 hours.
2.Payment terms acceptable: T/T,Paypal and Western Union
3.Many Shipping models: By Air, By Sea, Express(DHL, Fedex, TNT,UP,EMS)
4.Lead(Delivery) time: Normally 15 days after confirming order and payment received.
5.Port of loading: Shenzhen or Ningbo
6.Guarantee Period : Within 12 months after shipment.
7.Operating guide(Instruction)upon request.
8.Customized drawing ,sample and package can be done according to your requirements.
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
