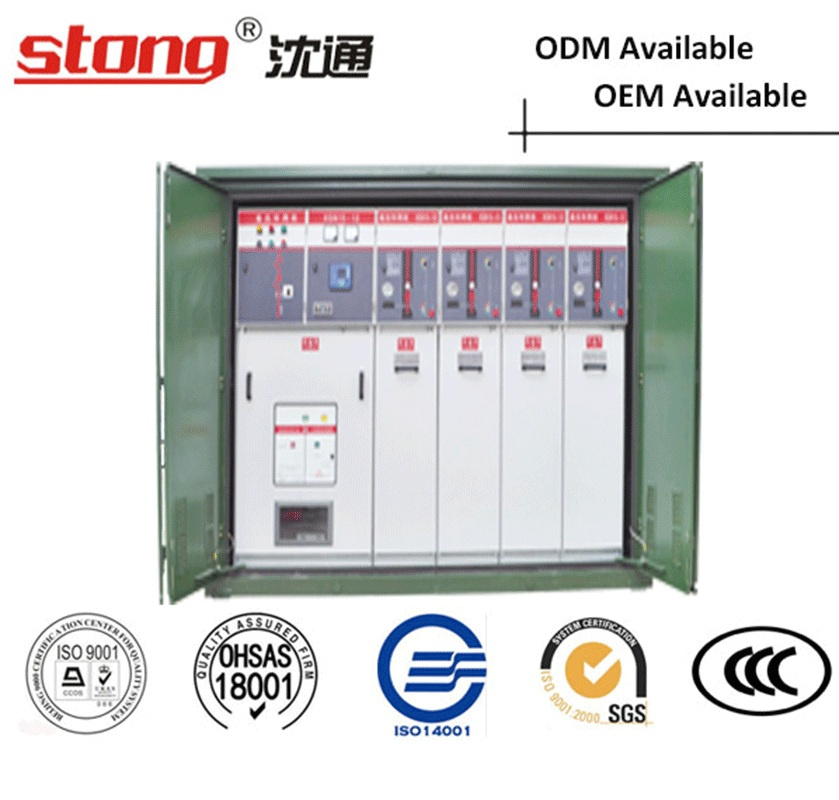

Dfwk Stainless Steel Series Cable Distribution Switchgear
| Price: |
US $ 3000-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Western Union,Paypal |
| Prod Model: |
DFWK |
| Rated Frequency: |
50Hz |
| Customized: |
Available |
| Attribute: |
Electric Cabinet |
| Function: |
Power Transmission |
| Main Accessory: |
Vacuum Circuit Breaker Vcb |
| Position: |
Outdoor |
| Effect: |
Transformer |
| Rated Operating Voltage: |
AC 380V |
| Type: |
Prefabricated |
| Structure: |
Box |
| Brand: |
Shentong |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM,ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

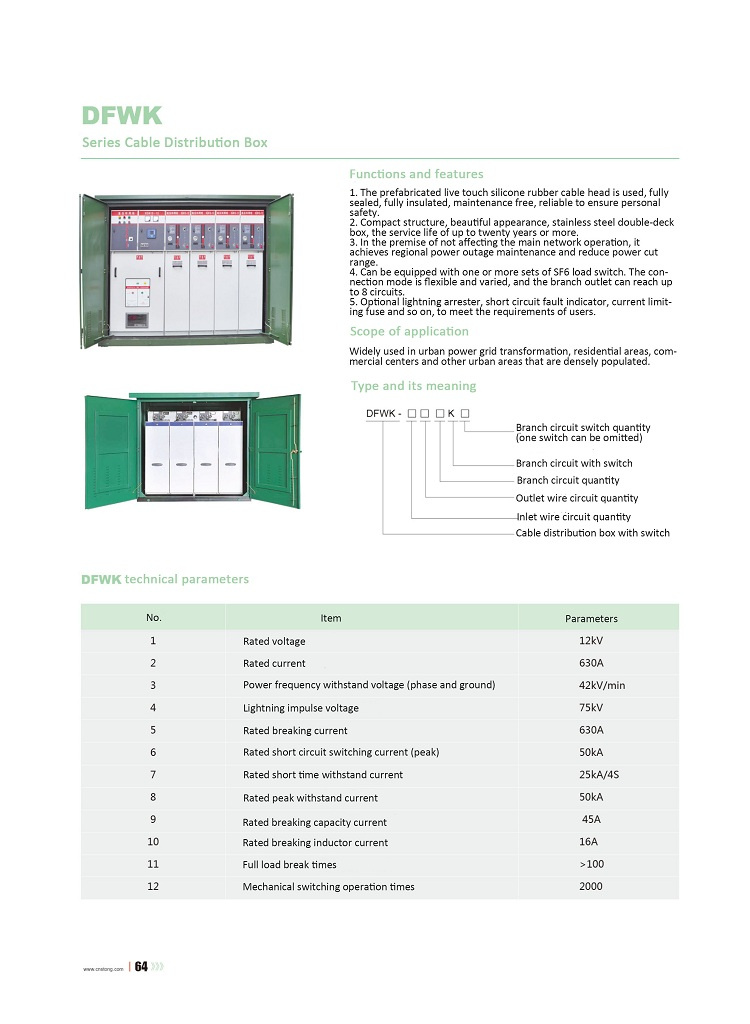

Functions and features
The prefabricated live touch silicone rubber cable head is used, fully sealed, fully insulated, maintenance free, reliable to ensure personal safety.
Compact structure, beautiful appearance, stainless steel double-deck box, the service life of up to twenty years or more.
In the premise of not affecting the main network operation, it achieves regional power outage maintenance and reduce power cut range.
Can be equipped with one or more sets of SF6 load switch. The connection mode is flexible and varied, and the branch outlet can reach up to 8 circuits.
Optional lightning arrester, short circuit fault indicator, current limiting fuse and so on, to meet the requirements of users.
Scope of application
Widely used in urban power grid transformation, residential areas, commercial centers and other urban areas that are densely populated.
Type and its meaning
DFWK - K DFWK - Cable distribution box with switch
- Inlet wire circuit quantity
- Outlet wire circuit quantity
- Branch circuit quantity
K- Branch circuit with switch
Branch circuit switch quantity(one switch can be omitted)
DFWK technical parameters | No. | Name | Parameter |
| 1 | Rated voltage | 12kV |
| 2 | Rated current | 630A |
| 3 | Power frequency withstand voltage (phase and ground) | 42kV/min |
| 4 | Lightning impulse voltage | 75kV |
| 5 | Rated breaking current | 630A |
| 6 | Rated short circuit switching current (peak) | 50kA |
| 7 | Rated short time withstand current | 25kA/4S |
| 8 | Rated peak withstand current | 50kA |
| 9 | Rated breaking capacity current | 45A |
| 10 | Rated breaking inductor current | 16A |
| 11 | Full load break times | >100 |
| 12 | Mechanical switching operation times | 2000 |

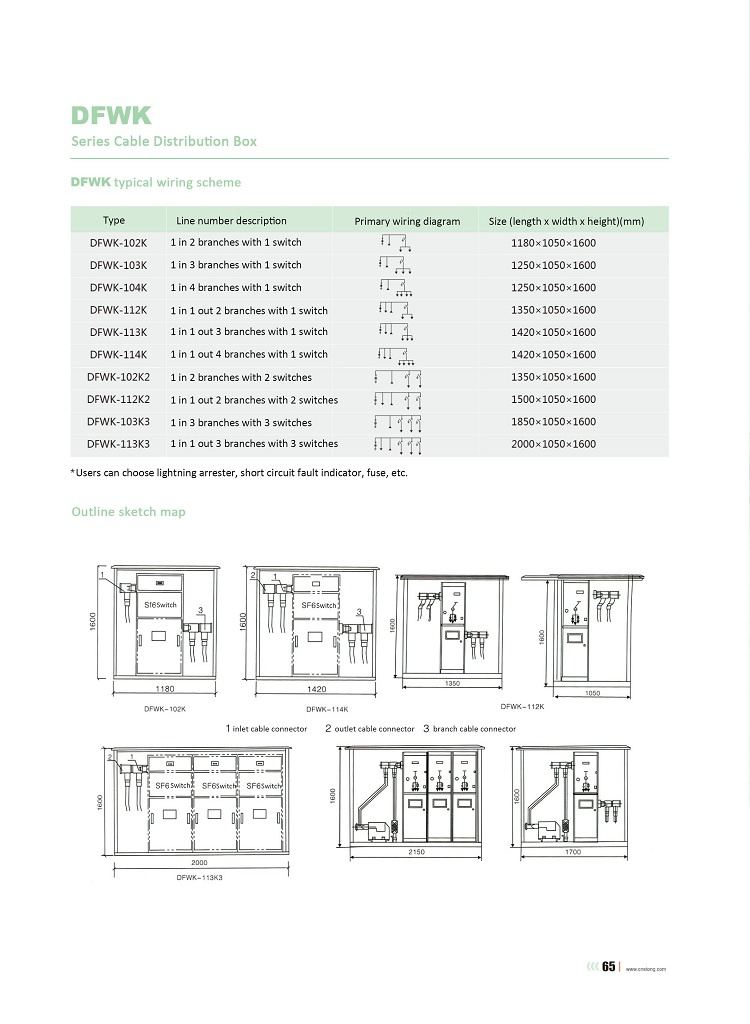

DFWK typical wiring scheme | Type | Line number description | Primary wiring diagram | Size (length x width x height)(mm) |
| DFWK-102K | 1 in 2 branches with 1 switch | | 1180x1050x1600 |
| DFWK-103 | 1 in 3 branches with 1 switch | | 1250x1050x1600 |
| DFWK-104 | 1 in 4 branches with 1 switch | | 1250x1050x1600 |
| DFWK-112K | 1 in 1 out 2 branches with 1 switch | | 1350x1050x1600 |
| DFWK-113K | 1 in 1 out 3 branches with 1 switch | | 1420x1050x1600 |
| DFWK-114K | 1 in 1 out 4 branches with 1 switch | | 1420x1050x1600 |
| DFWK-102K2 | 1 in 2 branches with 2 switches | | 1350x1050x1600 |
| DFWK-112K2 | 1 in 1 out 2 branches with 2 switches | | 1500x1050x1600 |
| DFWK-103K3 | 1 in 3 branches with 3 switches | | 1850x1050x1600 |
| DFWK-113K3 | 1 in 1 out 3 branches with 3 switches | | 2000x1050x1600 |
Users can choose lightning arrester, short circuit fault indicator, fuse, etc.
