| Prod Model: |
HBGQ19B-10/J/S |
| Item No.: |
Hbgq19b-10/N,Hbgq19b-10/S |
| Switch Rating: |
2A/36VDC |
| Contact Configuration: |
1no(1nc Can Be Custom Made) |
| Operation Type: |
Momentary |
| The Front Shape: |
Domed |
| The Crust Material: |
Stainelss Steel,Nickel-Plated Brass |
| Protection Degree: |
IP65,Ik09 |
| Function: |
Small Circuit Control |
| Terminal Type: |
Screw Terminal |
| Mounting Hole Size: |
19mm |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
ISO90001,Ce,RoHS,CCC |
Product Description

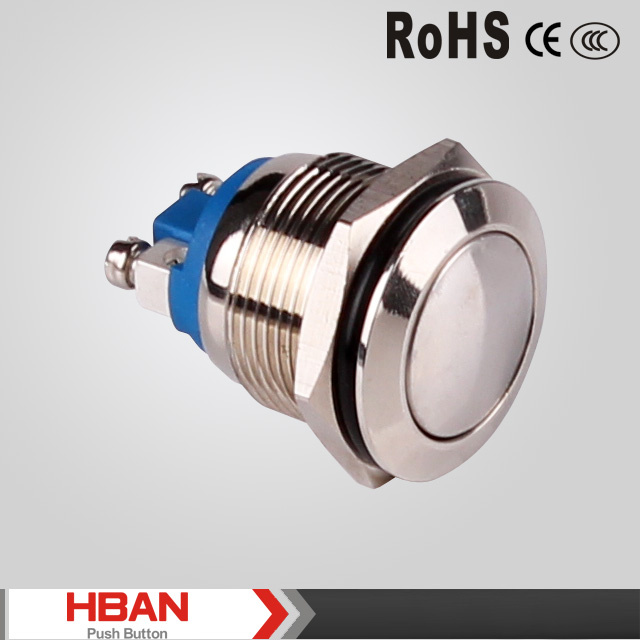

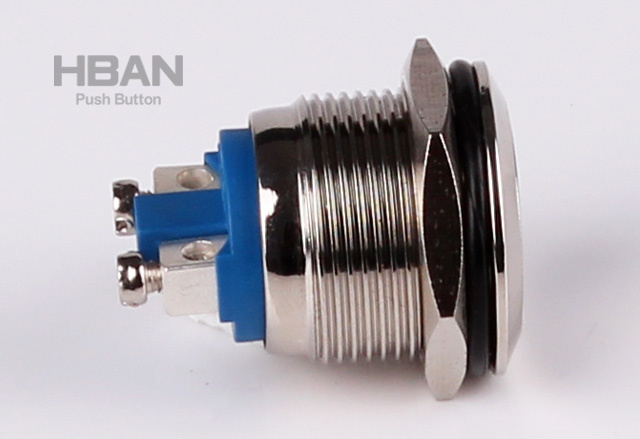

Dia 19mm low voltage 2A/26V anti vandal IP65 waterproof push button switch
1.Mounting Hole Size:Φ19mm
2. Switch Rating :2A / 36VDC
3. Contact Configuration:1NO(1NC can be custom made)
4.Operation Type:Momentary
5.TheFront Shape:Domed
6.The Crust Meterial:Stainelss steel,Nickel-plated brass
7.Protection Degree:IP65,IK09

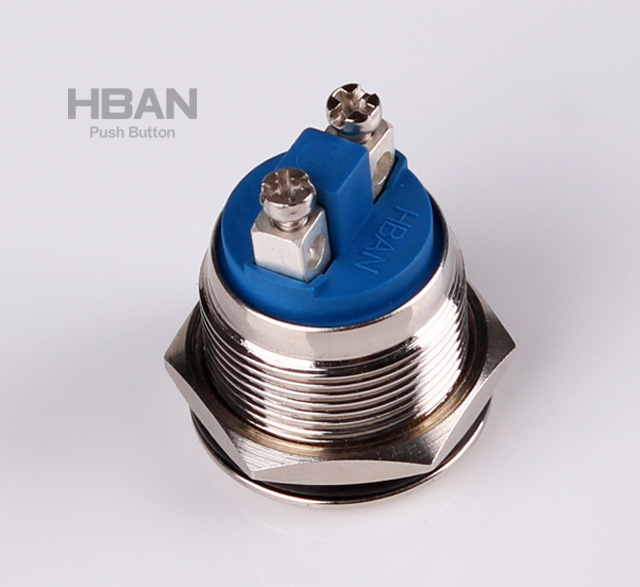

8.Terminal Type: Screw Terminal
Packaging Details: We pack 40 pieces diameter 19mm metal push button switches into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.
About Us
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push buttonSwitch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,Electronics, production control, medical, banks, ships, automation and other Industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
Tel: 0086-577-62708000 Fax: 0086-577-62708007
Other imformation
1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer.
2) over 13 years experience of manufacture and selling
3) lowest price from factory
4) up to 5 years product quality warranty
5) safety payment methods including paypal,western union,T/T,moneygram
6) specially customizing products as per your requests
7) products with CCC CE ROHS UL ISO9001 SGS TUV certification
8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight
9) providing samples for free befor placing order
| Item No. | HBGQ19B-10/N | HBGQ19B-10/S |
| Specification | 1NO Momentary | 1NO Momentary |
| Item No. | HBGQ19B-01/N | HBGQ19B-01/S |
| Specification | 1NC Momentary | 1NC Momentary |
| Front Head Shape |
| Domed |
| Terminal Type |
| Screw Terminal |
| Switch Type |
| X(Two terminal breakpoints slow moving contact) |
| Switch Specification | 2A/36VDC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >1,000,000 times |
| Electrical Life | >200,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8mm |
| Protection Degree | IP65,IK09 |
| Material | Contact | Sliver Alloy |
| Button | Mirror Surface |
| Case | Nickel-plated Brass | Stainless Steel |
| Base | PBT |
| RoHS | Can be made to order |
