| Prod Model: |
GD-ADT40AF |
| Product Name: |
0-10V Dimmable 42W LED Power Supply |
| Power Range: |
20-60W |
| Input Voltatge: |
100-277V AC |
| Output Voltage: |
30-42V |
| Warranty: |
3 / 5 / 7 Years |
| Dimension: |
285*30*27mm |
| Usage: |
Light |
| Output Type: |
Dual |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Modulation System: |
PWM.Rx.0-10V |
| Brand: |
Gedian |
| Power Supply Voltage: |
100-277V |
Product Description

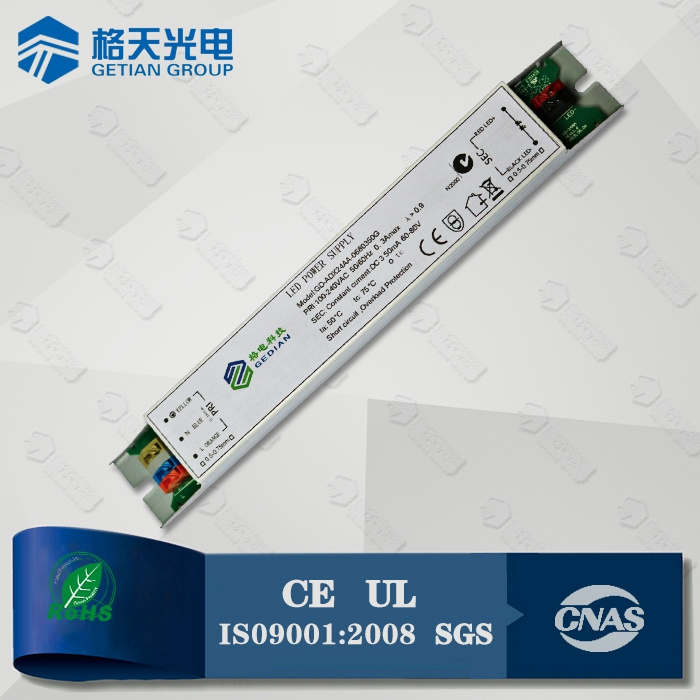

Different housing available 700-1000mA Output 0-10V Dimmable 42W LED Power Supply
| Product Type: GD-ADT40AF 0-10V Dimmable LED Drivers |
| Max Output Power | 30-40W | Certificate | CE can be passed |
| Input Voltatge | 100-277V AC | Capacitor | Rubycon |
| Output Voltage | 30-42V | Dimension | 285*30*27 |
| Output Current | 700-1000mA | Life Span | 20000-40000 hours |
| Efficiency | 85% | Warranty | 3 Years or 5 Years |
| Power Factor | >/=0.9 | Operation Temp | -20 °C ~ + 60 °C |
| IC Brand | Silergy IC | Anti-Thunder Grade | L-N 4KV; L/N 6KV |
| Protection | OCP; OVP; SCP-Auto-Recovery | Input Inrush Current | 30A Max |
Features of Different housing available 700-1000mA Output 0-10V Dimmable 42W LED Power Supply
1.Famous Brand: Silergy IC
2.3 & 5 & 7 years warranty.
3.BCM; High PF & High Efficiency & Non-flicker
4.With OVP & OSP
5.With soft start
6.Compatible with PWM.RX.0-10V (Extended function: DALI; WIFI)
7.Dimming range 2%-100% with smooth effect.
8.Class I design
9. 0-10V signal at DC/AC side optional (DC side suggested).
10. Different housing available. Specification of Other 0-10V Dimmable LED Power Supply:| Model | Input Volt | Output Volt | Output Current | Max Output Power | PF | Efficiency | Weight | Dimension
(L*W*H)/mm |
| GD-ADT40AF | 100-277V AC | 30-42V DC | 700-1000mA | 30-40W | ≥0.9 | 85% | 240g | 285*30*27 |
| GD-ADT060AG | 100-277V AC | 30-42V DC | 1000-1500mA | 63W | ≥0.9 | 85% | 356g | 355*31*28 |
| GD-ADT060AD | 100-277V AC | 30-42V DC | 700-1000mA | 30-40W | ≥0.9 | 85% | 511g | 221*106*36 |
| GD-ADT060AD | 100-277V AC | 30-42V DC | 1000-1600mA | 40-67W | ≥0.9 | 85% | 511g | 221*106*36 |
| GD-ADT060AE | 100-277V AC | 30-42V DC | 700-1000mA | 30-40W | ≥0.9 | 85% | 271g | 193*84*35 |
| GD-ADT060AE | 100-277V AC | 30-42V DC | 1000-1600mA | 40-67W | ≥0.9 | 85% | 271g | 193*84*35 |
GEDIAN Whole LED Power Supply Range:
1. Dimmable LED Power Supply Series (12-42W)
2. 0-10V Dimmable LED Power Supply Series(20-60W)
3. Anti-Explosion LED Driver Series (24-60W)
4. Isolated LED Tube Light Power Supply Series(12-40W)
5. Outlay LED Power Supply Series for indoor light (12-72W)

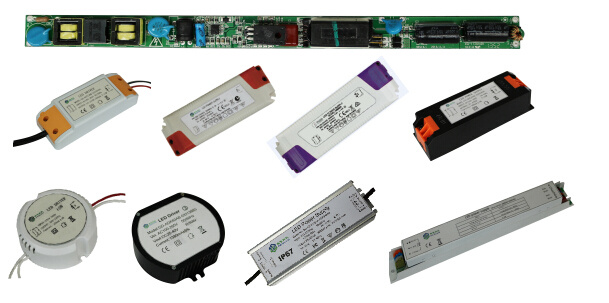

6. Outlay LED Power Supply Series for outdoor light (80-150W)Other LED POWER SUPPLY SERIES RECOMMENDATION

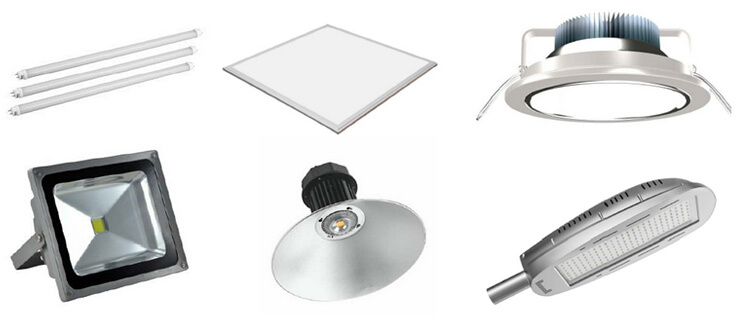

LED Power Supply Application

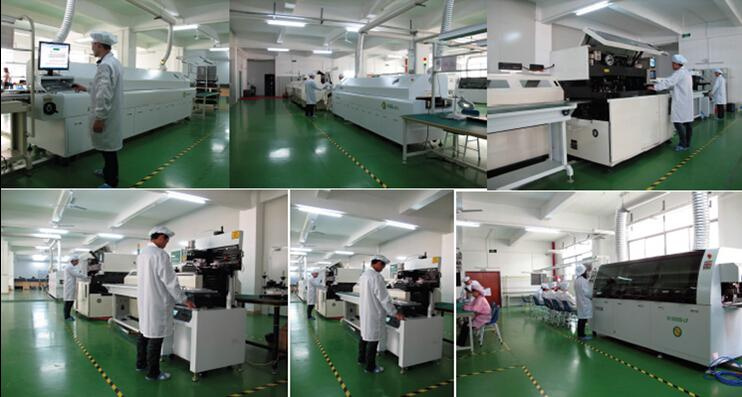

Factory Tours
Getian, established in 2005, is a professional first-class LED manufacturer mainly specializing in the R & D production and sales of High Power LED 1-500W, Flip Chip LED 1-500W,SMD LED, LED drivers(LED power supply) 8-150W and Finished LED Luminaires for outdoor lighting.
Getian is made up of 4 divisions. GETIAN---LED Encapusulation; GEDIAN---LED Driver(LED Power supply); GEMING---Finished Lamp; GECHENG--Mold Design.
GEDIAN was founded in 2010, covers researching & developing, producing and selling of led power supply.
The main products include all kinds of constant current led drivers(LED power supply) which applied widely to Commercial Lighting, Home Lighting and decorative Lighting, etc. OEM service is welcomed.
GEDIAN owns a production area of 2800m*m with a full set of automatic production facilities and advanced testing equipment. The top-quality raw materials was imported from Taiwan, Japan and America , which guarantees the perfect quality of our product.
GEDIAN equipped with a team of experienced R&D engineers specializing in LED drivers and are able to work on product design and offering technical guidance to different product applications.
WHY GETIAN LEDS?
GETIAN is a Market-Leading LED Manufacturer and Solution Provider.
Strong R & D Forces
* A strong R & D team of more than 40 experienced engineers.
* CNAS Accredited Laboratory.
* Launch highly-competitive new products seasonly.
* Revolutionary launch for a full series of high power & high integration ceramic flip chip led.
Extensive Application Experience & Quality Commitment
* Strict control over raw materials selection.
* 5 Years Warranty;
* Reliable long life span; LM-80 certification for High Power LED 1-300W.
* More than 10 years' experience in Outdoor Lighting application both in domestic and overseas market.
* Supported many government lighting projects.
Outstanding Service Level
* Professional Sales Team backing up with experienced engineers.
* Best Quality & Best Price & Best Service.
* Customizaiton and OEM service available.
More Details about Different housing available 700-1000mA Output 0-10V Dimmable 42W LED Power Supply, please conatct Jonika Peng(
