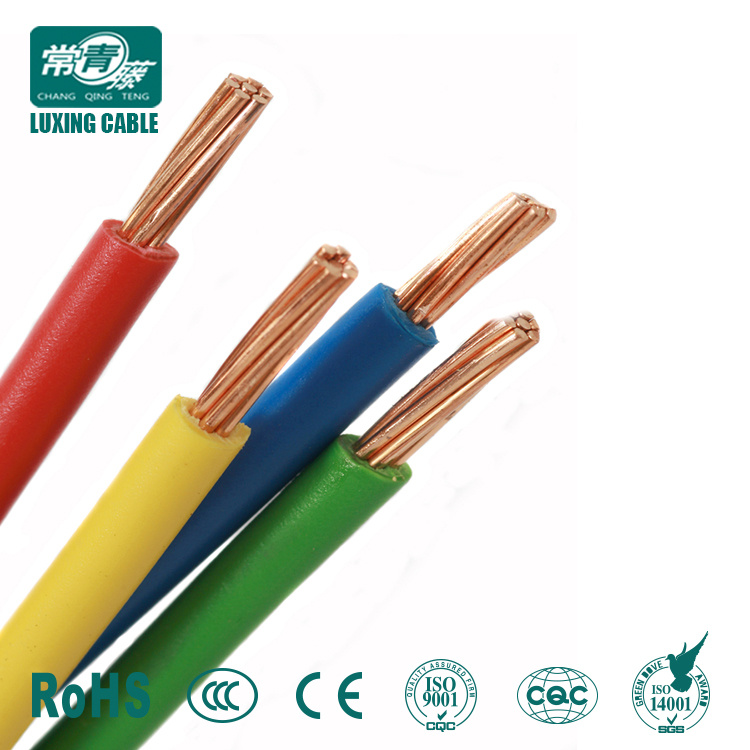

Different Types of Copper Conductor Bvr Electrical Cable Wire

Name: Different Types of Copper Conductor Bvr Electrical Cable Wire
Brand: all-electronics-online.com
SKU: 732638542
Availability: InStock
Rating: 4.4 (137 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	different types of electrical cables
Product Nane:	Different Types of Electrical Cables
Rated Voltage:	300/500V 450/750V 600/1000V
Insulation:	PVC / XLPE
Certificates:	ISO CCC Ce RoHS
Origine:	Shandong China
Color:	Red, Yellow, Blue, Green, Yellow/Green, Black etc
MOQ:	100 Meter
Packaging:	According to Different Cable Size
Shipping:	by Sea, by Train, by Air
Catalog:	Low Voltage Cable and Wire
Type:	Insulated
Conductor Material:	Copper
Certification:	GB/T Standard
Conductor Type:	Solid / Stranded
Application:	Fixed Wiring / Construction / Underground
Sheath Material:	PVC / PE
Insulation Material:	PVC / XLPE
Range Of Application:	Lsoh / Flame -Retardant
Brand:	Chanong Qing Teng

Product Description

Brief Introduction

The PVC insulated wires belong to the series of laying wires, which are mainly suitable for laying
at the fixed places.They are widely used as connectors of driving, lighting, electric equipment,
instrument andtelecommunication equipment with rated voltage up to 450/750V(U0/U).
part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300V.

1.U0/U 300/500V,450/750V

2.Standard applied: IEC 60227 , BS 6004, VDE0281, JB/T8734

3.Insulation:PVC

4.Conductor: copper

5. Sheath:PVC

6.Cross section area:0.75~630mm2

7. 100 meters per roll or as per request

8.Color: Black or as per requirement

9.Max. working temperature: 70 °C , can be 90 °C ,105 °C and 125 °C as per requirement

10.Flame retardant or Fire resistance or low smoking and Halogen free or other property can be avaliable

11. Certification : ISO9001/ISO14001 /OHSAS18001/CCC

12.OEM can be available

Type & Name & Application

Type	Name	Laying place and requirement	Rated voltage	Nominal Section (mm2)
227IEC01(BV)	Copper conductor PVC insulated wires Aluminum conductor PVC insulated wires	Fixed laid indoors Conduit etc.	450/750 300/500 450/750	1.5...185
227IEC05 (BV)				0.5...1
BLV				2.5...185
227IEC07(BV-90)	Heat resistant copper conductor PVC insulated wire at 90 0C	Mainly be laid at the places of high temperature environment and can be laid indoors, conduits.	300/500	0.5...2.5
BVR	Copper conductor PVC insulated flexible cable	Be for laying permanent place where flexible required.	450/750	2.5...150
BLVV	Aluminum conductor PVC insulated PVC sheathed round wires	Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.
BVVB	Copper conductor PVC insulated PVC sheathed flat wires		300/500	1...10
BLVVB	Aluminum conductor PVC insulated PVC sheathed flat wires		300/500	2.5...10
227IEC02(RV) 227IEC06(RV)	Copper conductor PVC insulated flexible connector wire	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	450/750 300/500	1.5...240 0.3...1
227IEC42(RVB)	Copper conductor PVC insulated flat flexible connector wire		300/300	0.3...1.5
RVS	Copper conductor PVC insulated flexible twisting connector wire		300/300	0.3...1.5
227IEC52(RVV) 227IEC53(RVV)	Copper conductor PVC insulated PVC sheathed round flexible connector wire		300/300 300/500	0.5...6 0.3...4
227IEC08(RV-90)	Cu conductor heat resistant PVC insulated flexible connector wire at 90 0C	Mainly used at the places where heat resistance is required	300/500	0.5...2.

Professional and Positive Response	Free Sample	OEM&ODM Servicce
Professional techincians will reply Fastly and exactly upon receipt of your questions about product.	In order to customer better understand quality of our cable. we can send free sample for test. Quality is ok,then produce order.	We can design and print according to customer's requirement.such as LOGO,company name etc.

Luxing Cable Factory Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

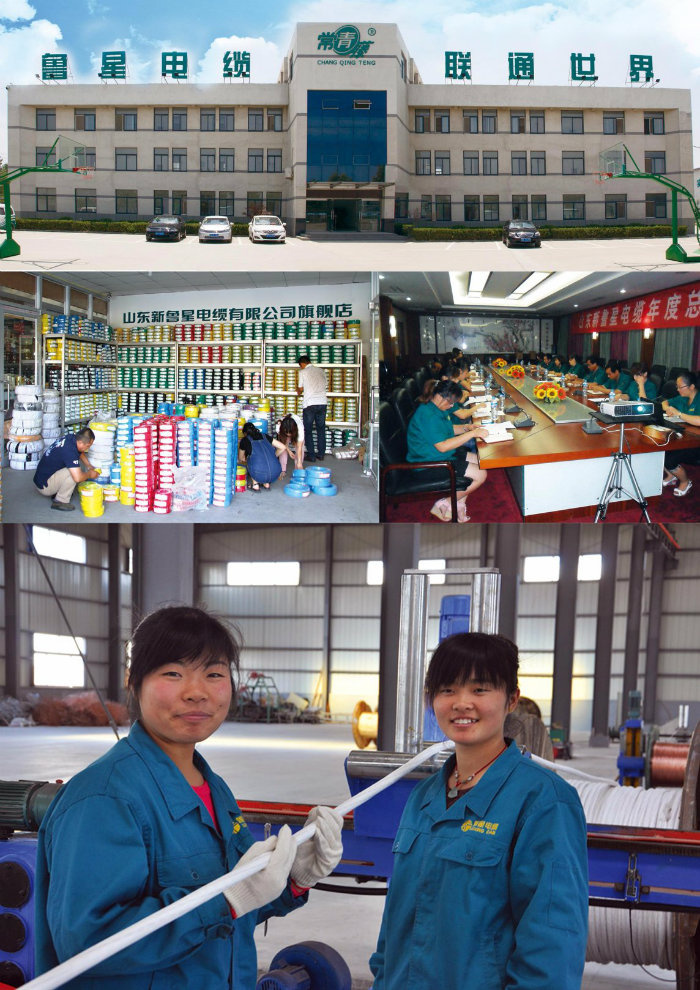

Factory Production Base

Hot sale products

Why choose us?

1. Advanced process equipment

2. Competitive price and high quality

3. Excellent after-sale service

4. Attractive design and various styles

5. Powerful technology R&D team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Have a good reputation in the domestic and overseas.

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
