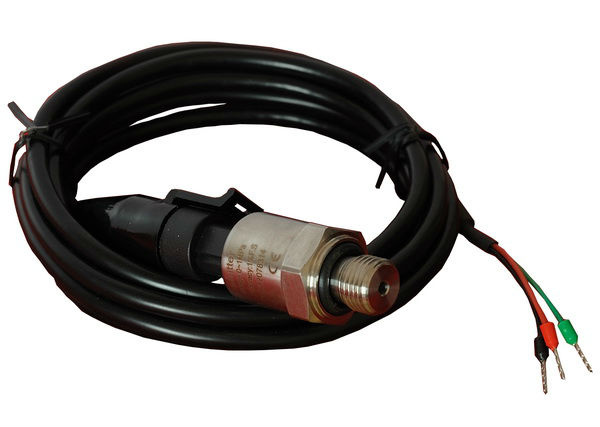

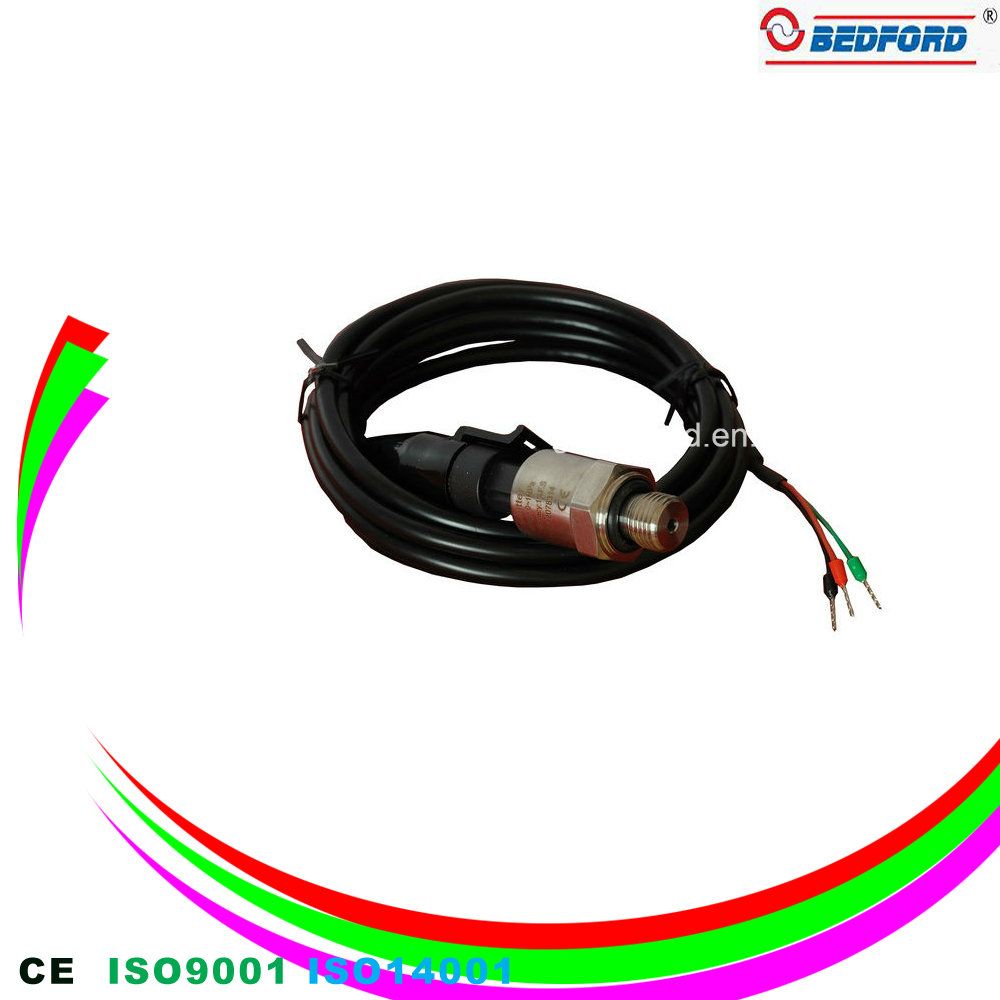

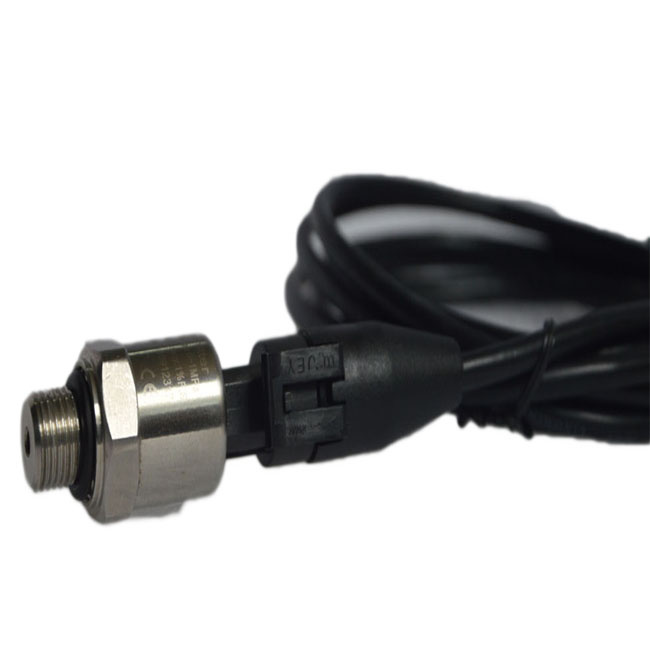

Differential 4-20mA Pressure Transmitter

Name: Differential 4-20mA Pressure Transmitter
Brand: all-electronics-online.com
SKU: 829213565
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BEF-CTA
Type:	Pressure Tansmitter
For:	Inverter/Pump Controller/VFD
Output Signal Type:	4~20mA
Wiring Type:	Two-Wire/Three-Wire
Measuring Medium:	Ceramic
Certification:	Ce/Intrinsic-Safety Explosione, Isolated Explosion

Product Description

BDF-CTA Series Pressure Transmitter
BDF-CTA series of pressure transmitter have high quality, high stability, small size, low weight, compact structure, low cost and mass production, which are widely used to measure pressure of air compressors, auto engines, air conditioning equipment, etc.

Features
±0.5, ±1.0% F.S Accuracy
High stability, high reliability
Ceramic sensor from Germany
Digital Calibration
Multiple connectors and ports
Zero point can be shifted freely
Measurement range shifted 50~100%

Technical parameters

Parameter	Parameter
Measure range	0~6bar,0~10bar,0~16bar,0~25bar,0~40bar
Overload pressure	1.5*pressure range
1.5*pressure range	3*pressure range
Accuracy	+_ 1.0 F.S
Stability	typical 0.5% F.S. maximum:1.0% F.S
Operating temperature	-40°C~100°C
Compensation temperature	-10°C~80°C
Shell/wire protection	IP67
Wires	Two-wire/Three-wire
Output signal	4~20nA/0.5~4.5V
Supply voltage	10~30 Vdc/5Vdc/10~30Vdc
Pressure form	Gauge G, absolute A

Application:
Compressor
Building water supply
Hydraulic control
Air conditioner
Auto engine
Automatic detecting system
Hydraulic pressure station
Refrigerator
