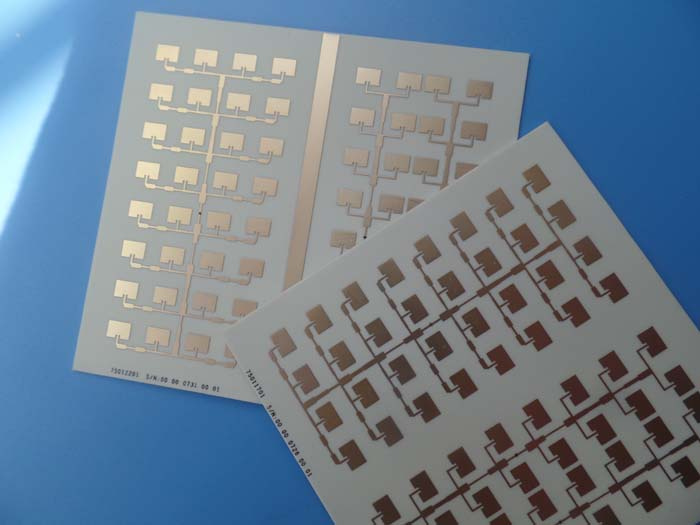

Differential Impedance 90 Ohm PCB Board on High Tg

Name: Differential Impedance 90 Ohm PCB Board on High Tg
Brand: all-electronics-online.com
SKU: 831368895
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 3.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-562-V5.62
Final Foil External:	9 Oz
Final Height Of PCB:	1.2mm
Tg Value Of Board Material:	150ºC
Mininum Trace (Mil):	16 Mil
Minimum Gap(Mil):	14.7 Mil
Surface Finish:	OSP
Warpage:	0.14%
Thermal Shock Test:	No Delamination, No Blistering.

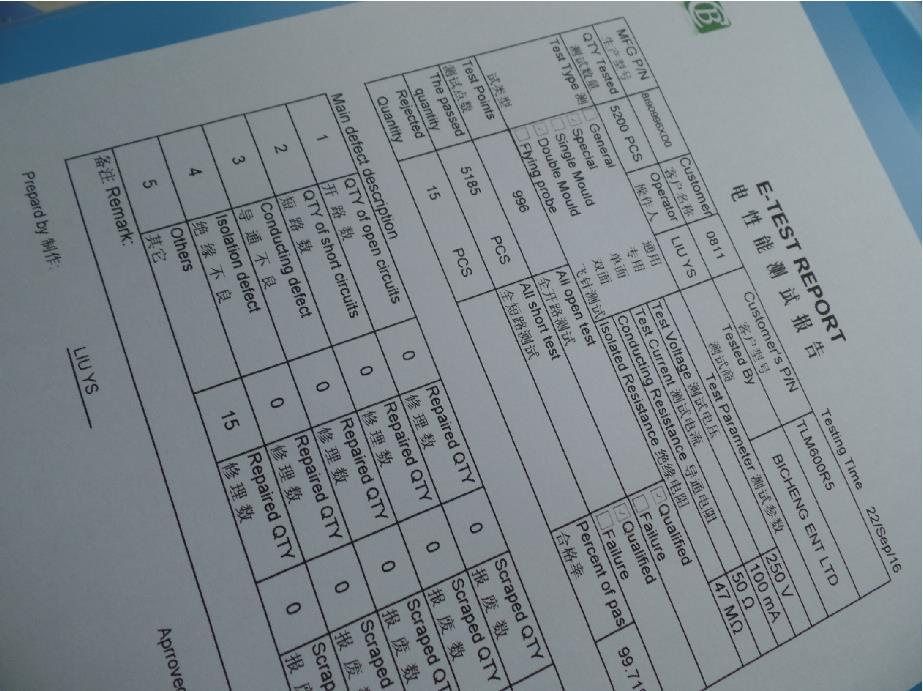

Test:	100% Electrical Test Prior Shipment
Workmanship:	Compliance with Ipc-a-600h & Ipc-6012c Class 2
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Aluminum
Dielectric:	Aluminum 6061

Product Description

Company Profile
Bicheng PCB, the quality is more stable. 10-year gold medal clients recommend you to
use Bicheng PCB.

1. Codec Tieline has won numerous awards for innovation in technology and thousands of
customers around the world rely on reliable broadcast solutions. High quality circuit board is
indispensable.

2. Telemetry UHS supplies innovative products and solutions to enable the transport of diverse
telecommunications products over broadband networks. A stable and good printed circuit board
plays an important role. Don't just take our word for it. Read what Richard and Olaf have to say
about Bicheng PCB.

"Kevin,
Received and tested the boards - thanks very much. These are perfect, exactly what we needed.

Rgds
Rich "

"Hi Ruth,
I got the PCB today, and they are just perfect. Thank you for that.
I will memory your for my next PCB order. Please stay a little patience, my next order is coming soon.
Kind regards from Hamburg
Olaf "

Email us today, we'll respond you within 8 hours. Still slow, take a phone and call us today.

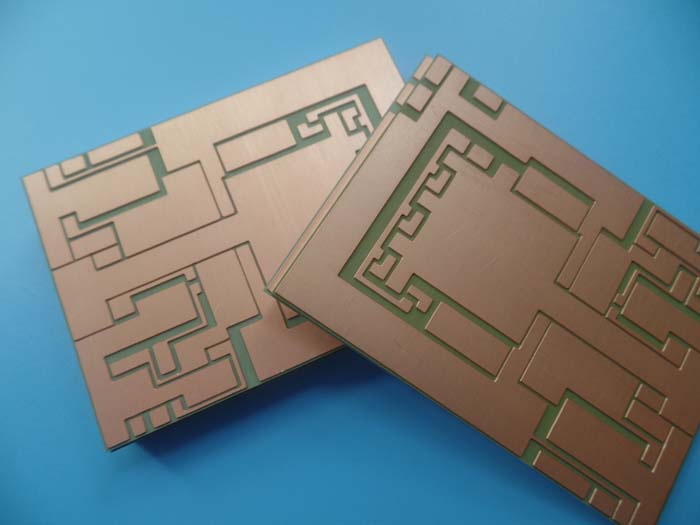

Aluminum PCB

High Frequency PCB

Flex PCB

PCB Circuit Board

Performance parameter of Aluminum, Copper, Iron and Ceremic

Material	Model	Hardness HB500KgF	Density (g/cm3)	Coefficient of thermal conductivity	Expansion coefficient (10E-6/K)
Aluminum	1100	32	2.71	218	23
Aluminum	5052	68	2.68	138	23
Aluminum	6061	95	2.7	155	23
Red copper	C1100	30	8.9	401	16.7
Iron	D3004	140	7.8	80	1.2
Ceramic	96% AL2O3	-	3.8	20-30	6

Shipping method:
By DHL, UPS, FedEx, TNT using clients account (for prototypes)
The forwarder agent of DHL, UPS, FedEx, TNT in Shenzhen
We can ship parcel by Russia special airline for Russian customer
By sea or air for mass quantity according to customer's requirements
By customer's forwarder

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

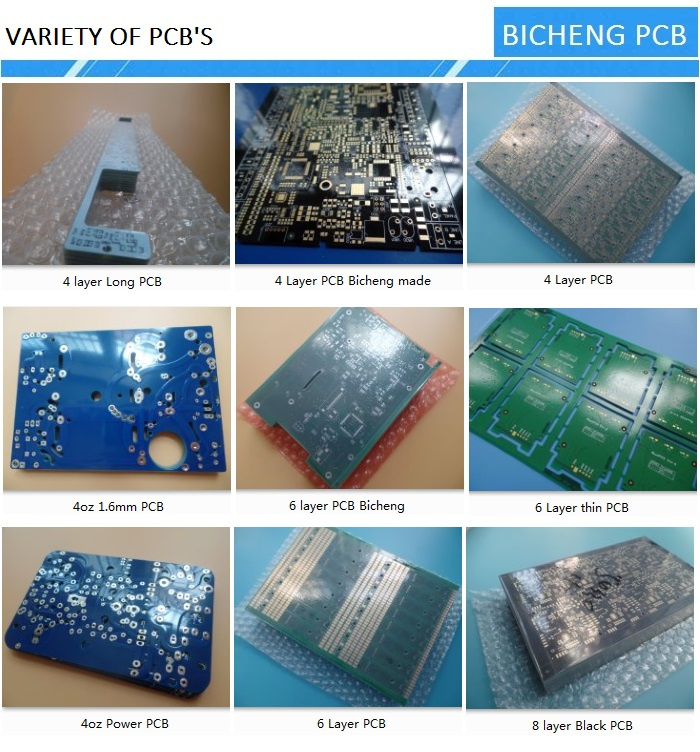

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
