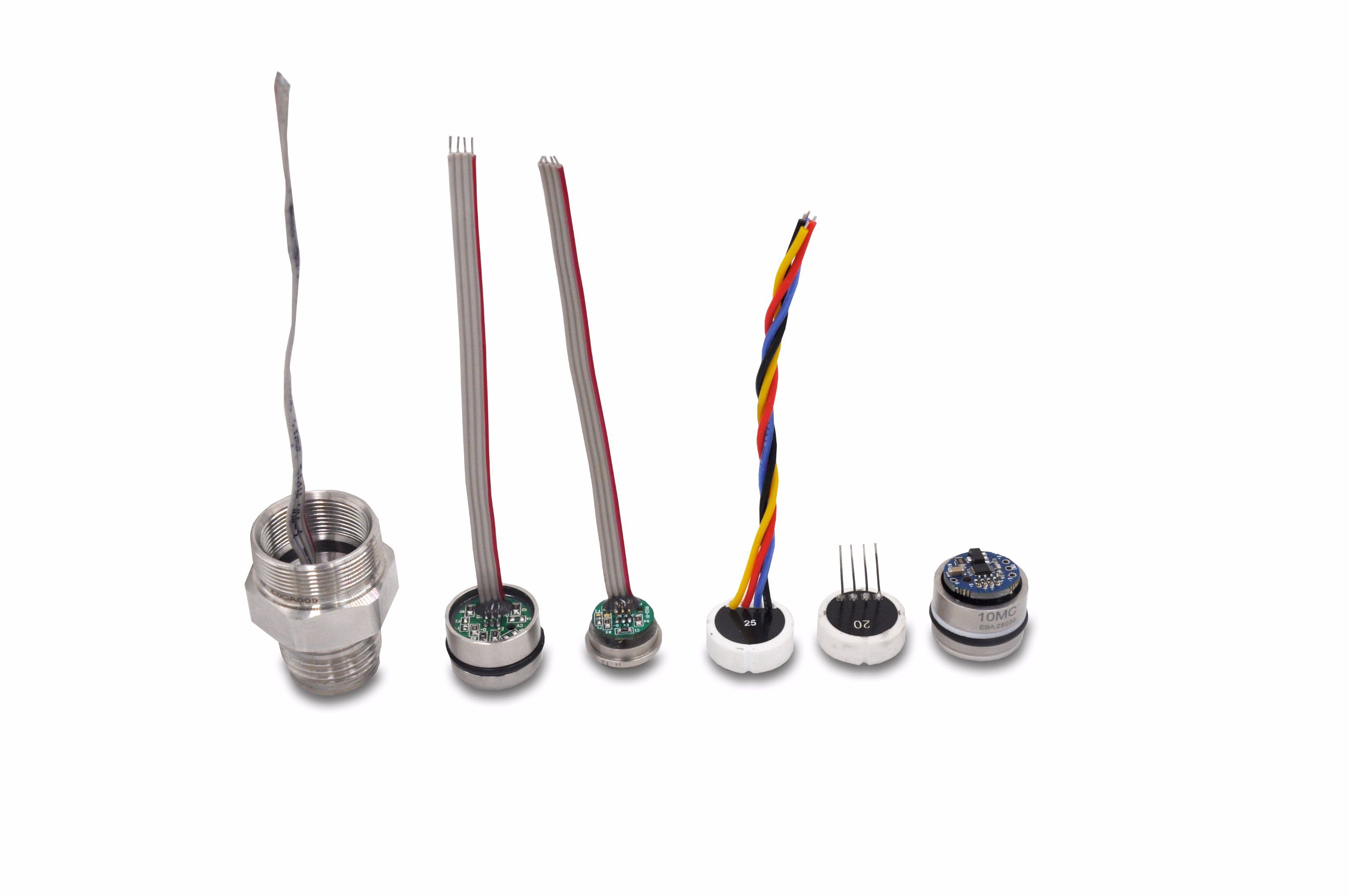

Diffusion Silicon Sensor Jc-CZ03, Level Measurement, Pressure Gauge, Hight Pressure Sensor, Silicon Piezoresistive Sensor
| Price: |
US $ 27-109/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
JC-CZ03 |
| Output Signal Type: |
Mv |
| Measuring Medium: |
Gas Liquid |
Product Description
Product Overview JC-CZ03 Series is a silicon piezoresistive sensor based on MEMS technology and it is a high-stability, high-precision OEM pressure measurement core packaged in the pressure chips. External pressure Passing 316L stainless steel diaphragm and internally filled silicone oil to sensitive components, it can be used to measure all pressure media compatible with 316L stainless steel. Each sensor is done with zero and full-scale temperature compensation, to ensure the accuracy of measurement in complex environments. The series provide 0-40Kpa ... 7MPa, 0-10Mpa ... 70Mpa and other low pressure range. The series can be done with film structure.
Product Features Product application*high stability, high accuracy * Automation control*Apply to (0-40Kpa…7MPa),(0-10Mpa…70Mpa) * Pressure gauge* Widely temperature compensation * Level measurement* Corrosive media can be measured(Compatible with 316L) * Pressure transmitter* Output:0~100Mv* Housing material 304 stainless steel (default)Technical Parameters Excitation current 1.5mA, preheat at 25 ºC for 10 minutes| Parameter | MIN | TYP | MAX |
Accuracy(%FS) Nonlinear
0-40Kpa…7MPa | 40KPa | | ±0.20 | ±0.30 |
| >40KPa | | ±0.10 | ±0.20 |
| Accuracy(%FS) Nonlinear 0-10MPa…70MPa | ≤40KPa | | ±0.10 | ±0.15 |
| 70MPa | | ±0.20 | ±0.35 |
| Hysteresis | | ±0.05 | ±0.10 |
| Repeatability | | ±0.05 | ±0.10 |
| Zero output | 0-40Kpa…7MPa | -2%FS | ±1%FS | 2%FS |
| 0-10Mpa…70Mpa | -1%FS | ±0.5%FS | 1%FS |
| Full-scale output | 0-40Kpa…7MPa | 70 | | |
| 0-10Mpa…70Mpa | 180 | | 450 |
| Operating temperature(ºC) | -40 | | 125 |
| Compensated temperature(ºC) | 40Kpa | 0 | | 50 |
| 100Kpa | 0 | | 70 |
| >100Kpa | -10 | | 70 |
| Zero temperature error (%FS) | 0-40Kpa…7MPa | | ±0.75 | ±1.0 |
| 0-10Mpa…70Mpa | | ±0.5 | ±0.75 |
| Full-scale temperature error (%FS) | | ±0.75 | ±1.0 |
| Temperature Hysteresis (%FS) | | 0.1 | |
| Zero long-term stability (±%FS/year) | | 0.1 | |
| Full-scale long-term stability (±%FS/year) | | 0.1 | |
| Supply current(mA) | 0.5 | 1.5 | 2 |
| Input resistance (kΩ) | 0-40Kpa…7MPa | 2.0 | 2.5 | 3 |
| 0-10Mpa…70Mpa | 3.0 | 4.5 | 6 |
| Output resistance (kΩ) | 0-40Kpa…7MPa | 2.5 | 3.0 | 3.7 |
| 0-10Mpa…70Mpa | 3.5 | 5.0 | 6.5 |
| Output load resistance(MΩ) | 5 | | |
| Insulation resistance (M/50V) | 0-40Kpa…7MPa | 50 | | |
| 0-10Mpa…70Mpa | 100 | | |
Excitation voltage 10VDC, preheat at 25 ºC for 10 minutes (only for the range of 0-40Kpa ... 7MPa)| Parameter | MIN | TYP | MAX |
Accuracy (%FS)
Nonlinear | 40Kpa | | ±0.20 | ±0.30 |
| >40Kpa | | ±0.10 | ±0.20 |
| Hysteresis | | ±0.05 | ±0.10 |
| Repeatability | | ±0.05 | ±0.10 |
| Zero output(mV) | -2 | ±1 | 2 |
| Full-scale output(FS)(mV) | 50 | 100±1 | 150 |
| Operating temperature(ºC) | -40 | | 125 |
| Compensated temperature(ºC) | 40Kpa | 0 | | 50 |
| 100Kpa | 0 | | 70 |
| >100Kpa | -10 | | 70 |
| Zero temperature error (%FS) | | ±0.75 | ±1.0 |
| Full-scale temperature error (%FS) | | ±0.75 | ±1.0 |
| Temperature Hysteresis(%FS) | | 0.1 | |
| Zero long-term stability(±%FS/year) | | 0.1 | |
| Full-scale long-term stability(±%FS/year) | | 0.1 | |
| Supply voltage(VDC) | | 10 | 14 |
| Input resistance (kΩ) | 6.0 | 8.0 | 10.0 |
| Output resistance (kΩ) | 2.5 | 3.0 | 3.7 |
| Output load resistance(MΩ) | 5 | | |
| Insulation resistance (MΩ/50V) | 50 | | |
| Pressure range | 0-40Kpa…7Mpa, 0-10MPa…70Mpa |
| Pressure overload | ≤4Mpa | 2times |
| 7Mpa | 1.5times |
| Measuring medium | Liquid, gas compatible with 316L stainless steel |

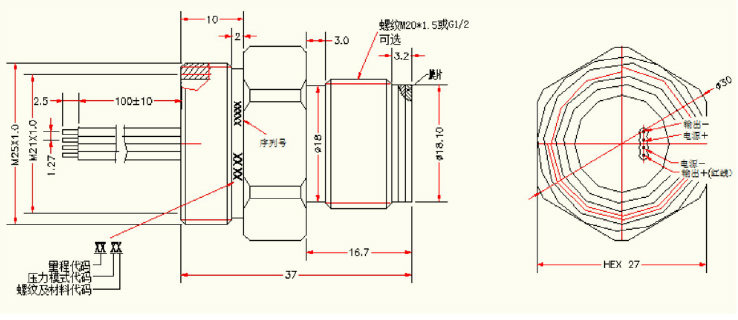

Dimensions(mm)
Ordering information| JC-CZ03 Pressure sensor |
| Model | Description |
| JC-CZ03 | Dia. 19mm |
| | Code | Power Supply |
| | C | Constant current |
| | V | Constant voltage |
| | | Code | Pressure Range |
| | | 40K | 0-40Kpa |
| | | 1M | 0-1Mpa |
| | | 5M | 0-5Mpa |
| | | 7M | 0-7Mpa |
| | | 10M | 0-10MPa |
| | | 20M | 0-20MPa |
| | | 40M | 0-40MPa |
| | | 70M | 0-70MPa |
| | | XXX | Customized |
| | | | Code | Pressure type |
| | | | G | Gauge |
| | | | A | Absolute |
| | | | SG | Seal Gauge |
| | | | | Code | Wire connection |
| | | | | 1 | Pin |
| | | | | 2 | Flat cable 90mm |
| | | | | XX | Customized |
| | | | | Code | Additional function |
| | | | | | F1 | G1/4 |
| | | | | F2 | G1/2 |
| | | | | F3 | M20X1.5 |
| | | | | X | Customized |
