Jc-CS01ceramic Piezoresistive Pressure Sensor, OEM Low Cost Pressure Sensor, Boiler Sensor, Sewage Pump Sensor

Name: Jc-CS01ceramic Piezoresistive Pressure Sensor, OEM Low Cost Pressure Sensor, Boiler Sensor, Sewage Pump Sensor
Brand: all-electronics-online.com
SKU: 837298145
Availability: InStock
Rating: 4.6 (80 reviews)

Price:	US $ 7-10/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JC-CS01
Output Signal Type:	Mv
Measuring Medium:	Gas Liquid

Product Description

Features and Application
Product Technology Product Application
* Excellent long-term stability can be directly integrated into the circuit * Automotive applications
* Direct amplification circuit in the system   * Central air-conditioning refrigeration system
* Compact structure,easy to package * Small appliances boiler
* Pressure,temperature sensor * Sewage pump
* Editable integrated circuit (zero, linear, temperature drift digital compensation)   * Industrial ink printer
* Can be applied to high-volume, low-cost applications * Medical food industry
* Flat film structure with excellent accuracy   * Geographic application of ship equipment
* Low power: rated current<3ma * Health flat film industry
* Anti-impulsive and anti-vibration
* Fast response: power-on initial time 5ms, signal response time 2ms

Dimension

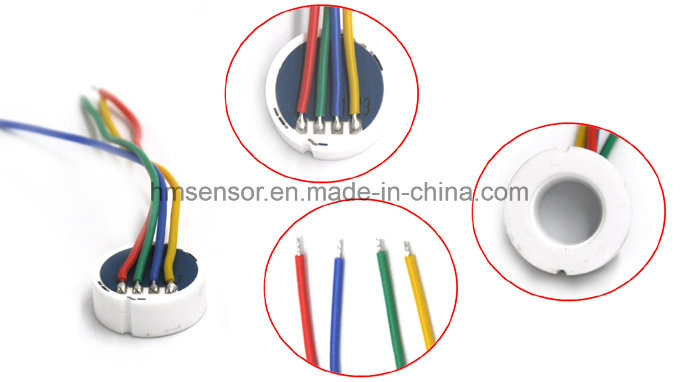

Electrical connection
1:+ Excitation voltage
2:- output
3:- Excitation voltage
4:+ output
Note:Other electrical connections are available on request

Technical Parameters

Pressure range	0~2bar…0~600bar(G)
Dimension	φ18x6.35mm
Power supply	30V DC,MAX.
Bridge impedance	11KΩ±30%
Insulation resistance	>2kv
FS output	4mV/V
Direct contact with liquid material	96%AL₂O₃
Operating temperature	-40~125ºC
Sored temperature	-50~150ºC
Temperature drift(zero+ sensitivity)	≤±0.03%FS/ºC(2bar~200bar); ≤±0.04%FS/ºC400bar & 600bar)
Accuracy(non-linear+ Hysteresis)	≤±0.3%FS
Repeatability	≤±0.1%FS
Zero drift	≤±0.2mV/V
Destroy pressure	2~3time rated range

Ordering information

JC-CS01 Ceramic pressure sensor
Model	Descrption
JC-CS01	Dia. 18mm
	Code	Power Supply
	C	Constant current
	V	Constant voltage
		Code	Pressure range
		2	0~0.2MPa
		5	0~0.5MPa
		10	0~1MPa
		20	0~2MPa
		50	0~5MPa
		100	0~10MPa
		200	0~20MPa
		400	0~40MPa
		600	0~60Mpa
		XXX	Customized
			Code	Pressure type
			G	Gauge
			A	Absolute
			S	Seal Gauge
				Code	Electric connection
				F1	Pin
				F2	Flat cable 90mm
				XX	Customized
					Code	Additional function
					W1	G1/4
					W2	G1/2
					W3	M20X1.5
					X	customized
