| Prod Model: |
HM27A(01) |
| Type: |
Absolute Pressure Sensor |
| Thread Type: |
Customized |
Product Description

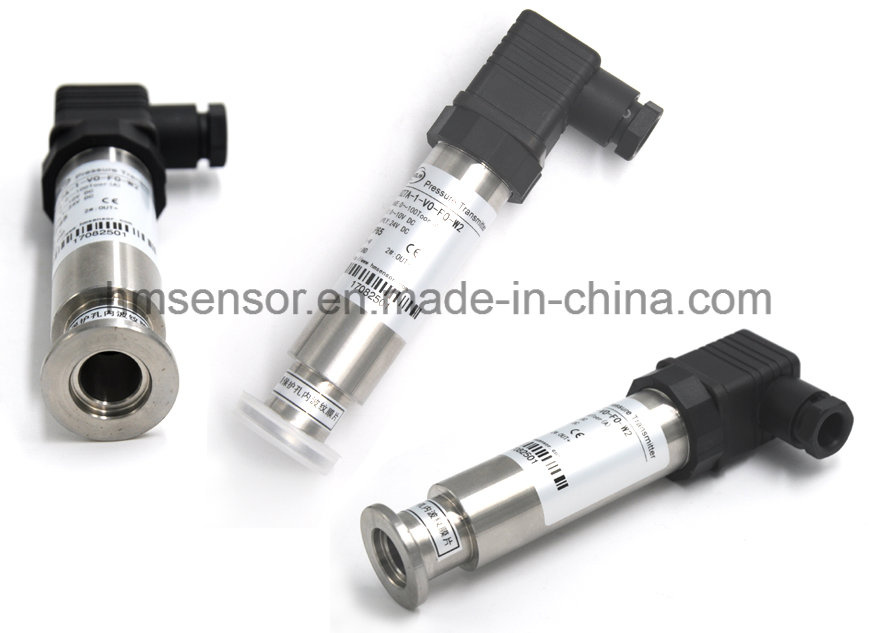

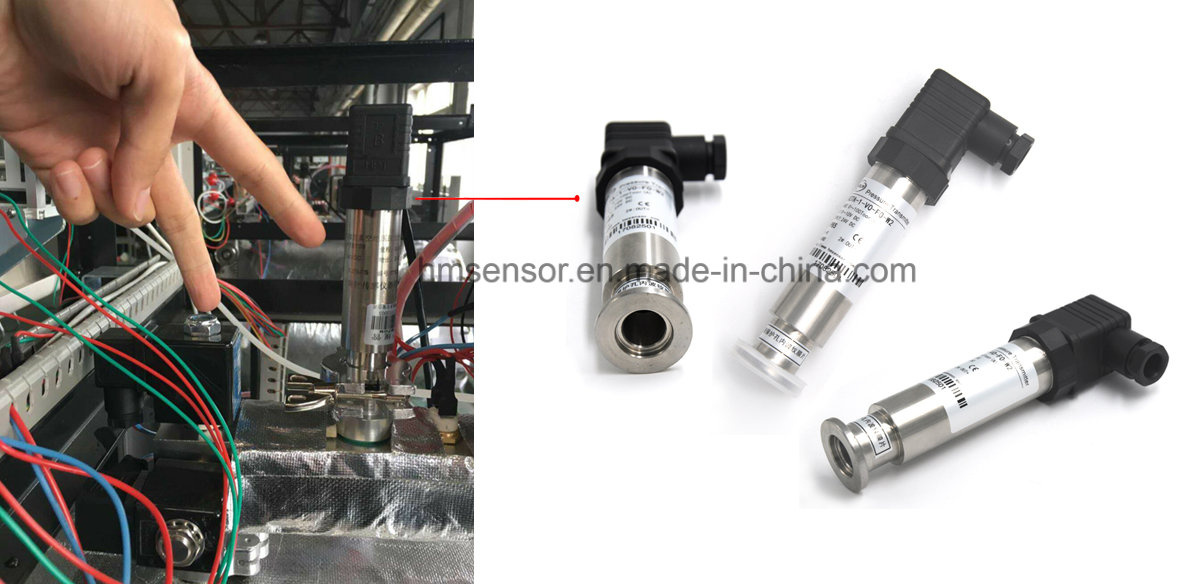

Product overview
HM27A absolute pressure transducer adopts such advanced foreign new high technologies as absolute pressure chips, temperature automatic compensation, and normalized circuit debugging etc., to expand the absolute pressure range to 5KPa at the minimum, and to greatly enhance the overall accuracy of the product. Characterized by advanced technology, superior performance, reliable quality and small volume, this product has quite obvious advantages in high cost performance by comparison with domestic similar absolute pressure products.
By use of a HELM mono-crystalline silicon thick-film sensor, HM27G negative pressure transducer is equipped with a high-accuracy signal processing circuit, with stable and reliable performance, which has solved such disadvantages of domestic diffused silicon-type negative pressure vacuum products as unstable signal and short service life. Normal ranges include 0 ~ 100KPa and 0 ~ 50KPa, etc..
HM27CA capacitor thin-membrane absolute pressure transducer is a vacuum pressure gauge made in China through the introduction of foreign capacitor thin-film gauge technology and internationally advanced calibration equipment. This product works by the capacitance changing principle. Its minimum range may be up to 0.02MPa ~ 200MPa absolute pressure, and its detection won't be influenced by the type and component of the medium to be detected. Its output of standard electric signals can be remotely transmitted, to facilitate intelligent control of microprocessors. Therefore, it is ideal for the measurement of low vacuum pressure.
Specifications
| Measuring media | The gas or liquid compatible with 316 stainless steel |
| Overload capacity | 2 times at negative gauge pressure;
10 times to 100 times at micro-range absolute pressure |
| Long-term stability | Typical:±0.1%FS/ year,Maximum:±0.15%FS/year |
| Zero temperature drift | Typical:±0.01%FS/ºC,Maximum:±0.15%FS/ºC |
| Sensitivity temperature drift | Typical:±0.01%FS/ºC |
| Range of operating temperature | -20~ 80ºC |
| Range of compensation temperature | -10 ~ 60ºC |
| Ambient temperature | -20 ~ 80ºC - |
| Range of power supply | 12~36VDC(generally 24VDC) |
| Load resistance | ≤(U-12)/0.02 Ω |
| Resolution | Infinitely small (theoretical),,1/100000(normal) |
| Vibration error | ≤±0.01%FS(Axes X, Y and Z, 200Hz/g) |
| Response time | ≤2 ms |
| HM27 | Vacuum/absolute pressure transducers |
| | Pressure type | Negative pressure transducer(G);
Absolute pressure transducer(A); Capacitor thin-membrane absolute pressure transducer(CA) |
| | Range | Measuring range |
Negative gauge pressure: 0~-5KPa ..-50KPa…-100KPa
Silicon-type absolute pressure: 0~5KPa…..10KPa …20KPa…100KPa…200KPa…1MPa
Capacitor thin-film absolute pressure: 0.02Pa~200Pa,1Pa~1KPa |
| | Code | Overall accuracy (linearity + repeatability+ hysteresis) |
| 1 | ±0.5%FS |
| 2 | ±0.25%FS |
| 3 | ±0.1%FS |
| | Code | Signal output |
| A1 | 4~20mA (12~36V DC) |
| V1 | 1~5V DC (12~36V DC) |
| V2 | 0~5V DC (12~36V DC) |
| V3 | 0~10V DC (24V DC) |
| | Code | Additional functions |
| F1 | M20x1.5 external thread |
| F2 | G1/4 external thread |
| F3 | Clamped type |
| F0 | Special |
| W1 | Cable type (IP67,2m) |
| W2 | Socket type (IP65,DIN43650) |
| W3 | Aviation plug |
| P | Flush-diaphragm type |
| E | Intrinsically safe explosion-proof type
Ex iaIICT6 |
| | |
| HM27A(0~10KPa)-1 -A1 -F1 -W2 Vacuum/Absolute Pressure Transducer |
Tips for Type Selection:
1. The medium to be measured shall be compatible with the material contacting with the product.
2. As an additional function code for type selection, the code "E" for intrinsically safe explosion-proof type Ex iaIICT6 denotes that power source must be supplied via safety barrier.
3. For other special requirements, please discuss with us and clearly indicate them in the order.

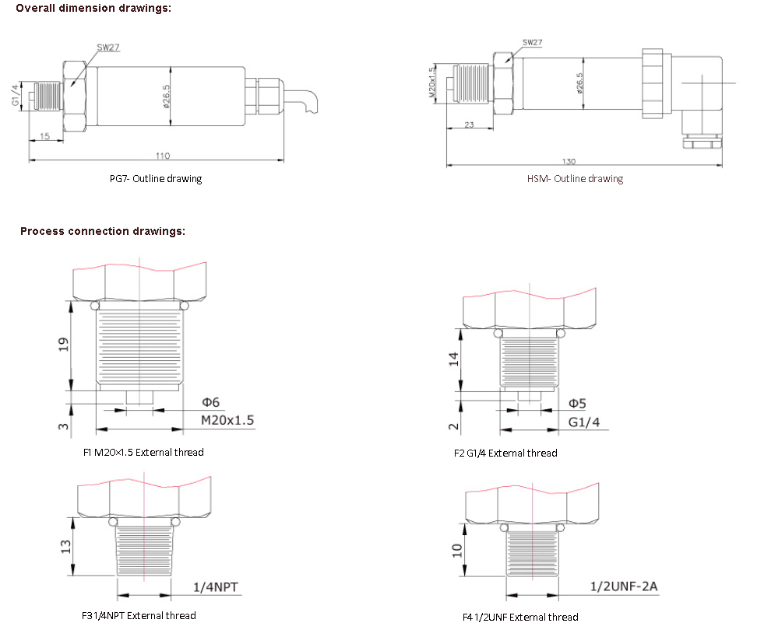

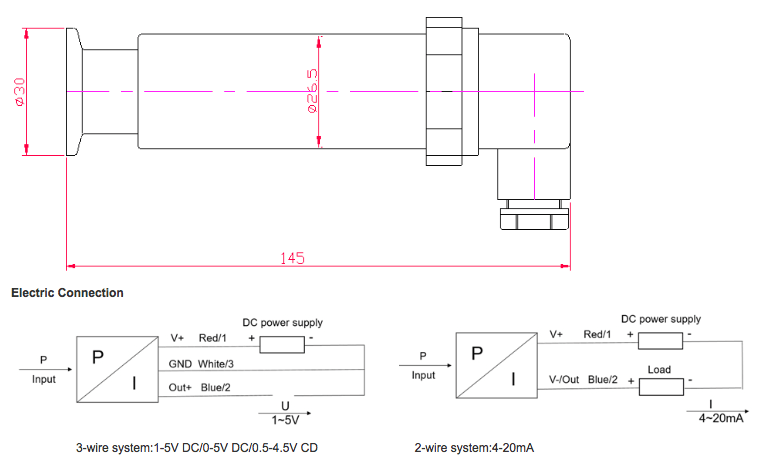

Dimensions
