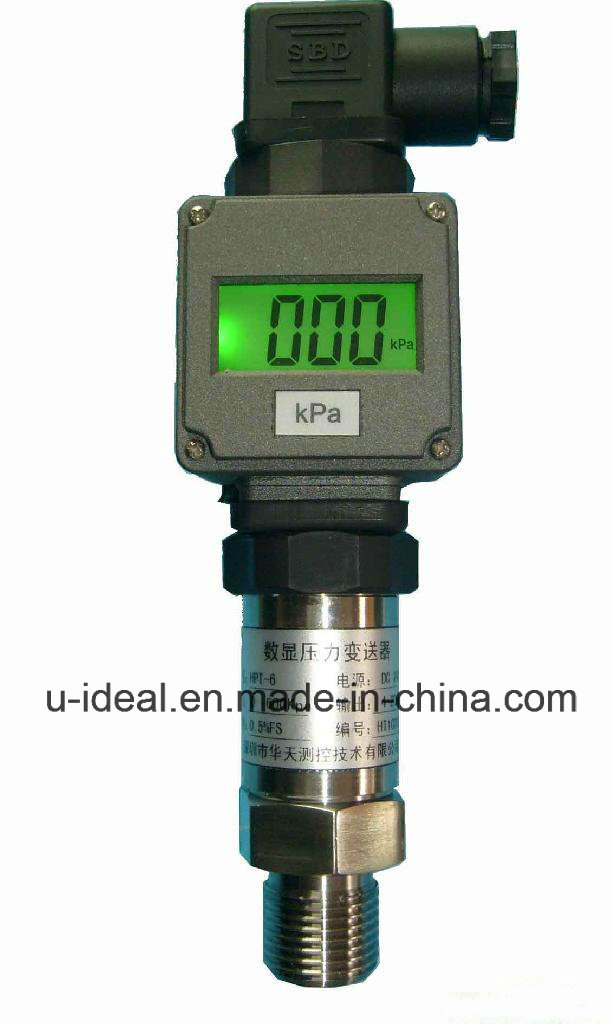

Digital Display Pressure Transmitter-Pressure Transmitter
| Price: |
US $ 10-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
XK-101 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
0.5~10kpa |
| Working Pressure: |
1MPa |
| Overload Range: |
1~2 Times of Working Pressure |
| Precision Grade: |
0.25%F.S., 0.5%F.S. |
| Application: |
Gas, Liquid Compatible with SUS316 |
Product Description
advantages:
1. CE and CAS is approved
2. the leading time is very short
3. high quality and competive price
4. offer OEM and ODM service for our customer
we have pressure switch, pressure transmitter, pressure gauge, pressure sensor, capacitance pressure sensor, DP pressure transmitter.....inductive pressure sensor, piezoresistive pressure sensor, semiconductor strain gauge pressure sensor, resistance strain gauge pressure sensor
specification:
| Model: | XK-131 |
| Product Name: |
Intelligent Capacitor Type Differential Pressure Transmitter |
Measuring Range: | 0.5~10kpa |
| Working Pressure: | 1Mpa |
| Overload Range: | 1~2 times of working pressure |
| Precision Grade: | 0.25%F.S., 0.5%F.S. |
| Application: | gas, liquid compatible with SUS316 |
| Load Resistance: | ≤750Ω |
| Ambient Temperature: | -20°C~75°C |
| Working Temp.: | -30°C~85°C |
| Temp. Influence: | <0.02%/°C |
| Working Voltage: | 12-36VDC |
| Extreme Point Coefficient: | ≤0.02%/°C |
| Zero Point Coefficient: | ≤0.02%/°C |
| Output Signal: | two-wire 4~20mA with digital indicator; Hart Agreement |
| Electric Interface: | 1/2″NPT inner thread |
| Installation: | support installation |
| Explosion Grade | (NEPSI)ExiaIICT4 |
| Protection Grade: | IP66 |
product description:
As a signal measurement unit, the pressure sensor with isolation diaphragm or piezoelectric sensors after tested automatically by computer and adjusted resistance by laser,
make a temperature compensation of zero point and sensitivity. The pressure of the measured medium directly work onto the ceramic diaphragm of the sensor,
It can be widely used in petroleum, chemical, electric power, metallurgy, pharmaceutical, food and many other industrial fields, also suitable for various of medium in different occasions. |
Hebei Xukang Meter Manufacturing Co., Ltd (Tianjin U-ideal Instrument Co., Ltd) is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
