Pencil Type Pressure Transmitter-Pressure Sensor-Pressure Gauge
| Price: |
US $ 56/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PT124B-216 |
| Output Signal: |
4-20mA, Alarm Optional |
| Display: |
LED Local Display |
| Operat Temperature: |
-40~80ºC |
| Electric Connector: |
Hirschman(Big DIN) |
| Process Connector: |
G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5; Customize |
| Measuring Medium: |
Steam, Gas, Liquid |
| Accuracy Grade: |
0.25% 0.5% |
| Pressure Range: |
-1~ 0~2000bar |
Product Description
Description Adopting global advanced electron ceramic technology, PT124B-216 (LED display) with low range has the character of overload resistance, high impact resistance, excellent linearity, lasting high stability, wide temperature range, corrosion proof, etc. This series can be applied in Defense industry, scientific research, Space industry, Petroleum, Chemical industry, Electric power, Ocean and other fields. Application - Defense industry, Scientific research, Space industry
- Petroleum, Chemical industry
- Electric power ,Ocean and other fields
Feature - Pressure Range:-1~0~2000bar
- LED local display
- High accuracy, stable capability, little temp-draft
- overload resistance ,high impact resistance,
excellent linearity- Lasting high stability
- Wide temperature range, corrosion proof

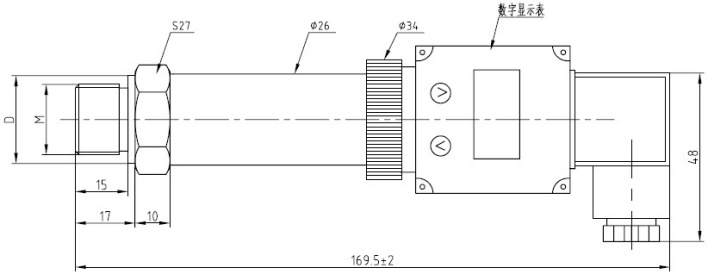

Dimension
Specification | Range: | -1~ 0~2000bar |
| Accuracy: | 0.5%FS |
| Nonlinearity: | 0.2%FS |
| Reliability: | 0.05%FS |
| Output: | 4-20mA(2 Wire), alarm optional |
| Input voltage: | 24(12~36)VDC (Amplify signal ) |
| Operat Temperature: | -40~80ºC |
| Compensated temperature: | 0~70ºC |
| Overload pressure: | 150%FS |
| Medium material: | stainless steel |
| Electric connector: | Hirschman(Big DIN) |
| Process connector: | G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5(Customer design) |
Wiring code | Electric connector | 2 wire(4-20mA) | 3 wire (0-10V, 0-5V, 0.5-4.5V) |
Hirschman | Pin | Function | Color | Pin | Function | Color |
| 1 | E+/S+ | Red | 1 | E+ | Red |
| 2 | E-/S- | Black | 2 | S+ | Blue |
| 3 | --- | --- | 3 | E-/S- | Black |
Ordering Guide | Model | Range(bar) | Output | Screw Thread | Electric connection | Other requirement |
| PT124B-216 | --- | --- | --- | --- | --- |
| Example: PT124B-216-50Bar-4/20mA-G1/2-Hirschmann |
Note: when order not emphasized with need alarm output , standard product is without alarm .
