Explosion Proof Pressure Transmitter-Pressure Gauge-Pressure Transducer
| Price: |
US $ 399/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PT124B-282 |
| Output Signal: |
4 - 20 Ma + Hart |
| Accuracy: |
0.5% 0.25% 0.075% |
| Material: |
Wetted Parts: Ss316L; Housing: Cast Alum |
| Packing Box: |
35cm*25cm*25cm |
| Measuring Medium: |
Steam, Gas, Liquid |
| Accuracy Grade: |
0.5% to 0.075% |
| Pressure Range: |
-20bar to 1000bar |
Product Description
Description PT124B-282 smart pressure transmitter adopted compensation technology of digital circuit, the output is 4-20mA, with HART optional, stainless steel sealed construction with LCD display, suitable for all kinds of industrial process measuring and controlling.Application - Petroleum and chemical
- Seam flow
- Hydraulic controlling
Feature - Digital circuit compensation technology
- Intrinsically safe
- High accuracy, high stability
- Explosion proof shell with LCD display
- Output is 4-20mA,and load HART protocol

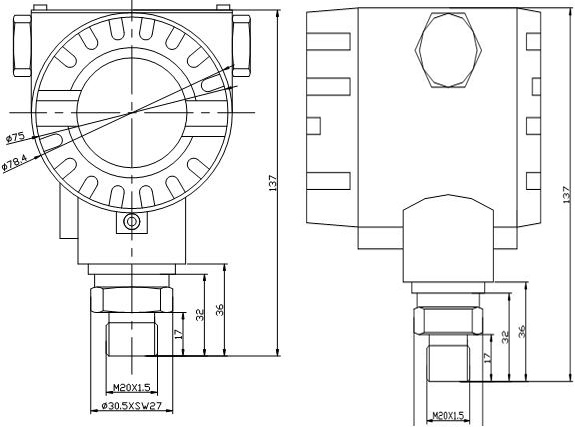

Dimension
Remarks: Above dimension only for reference, we can tailor the product as you required. Specification | Range | -100KPa ~0; 0….50mbar to 0….1000bar |
| Accuracy | 0.25%FS, 0.5%FS |
| Linear | 0.02%FS |
| Over pressure | 150%FS |
| Output | 4-20mA, HART option |
| Input voltage | 24(12-36V)DC |
| Operation temperature | -40ºC~125ºC |
| Temperature compensation | -10ºC~70ºC |
| Explosion class | ExiaII CT4 |
| Electric connector | Terminal block |
| Process connector | M20x1.5,clamp,flange (optional) |
Wiring Code Remove the back cover and then you will see there are terminals inside as below, please connect cables according to the wiring code.
Wiring CodeTerminal OUT+ Power+ RedTerminal OUT - Signal+ BlackTerminal TEST + Terminal TEST -Remarks: The TEST just for current testing purpose if necessary.Order Guide | Model | Range(bar) | Output | Process connection | Electric connection | Other requirement |
| PT124B-282 | --- | --- | --- | --- | --- |
| Example:PT124B-282-100bar-4/20mA-M20*1.5-Direct shield cable |
