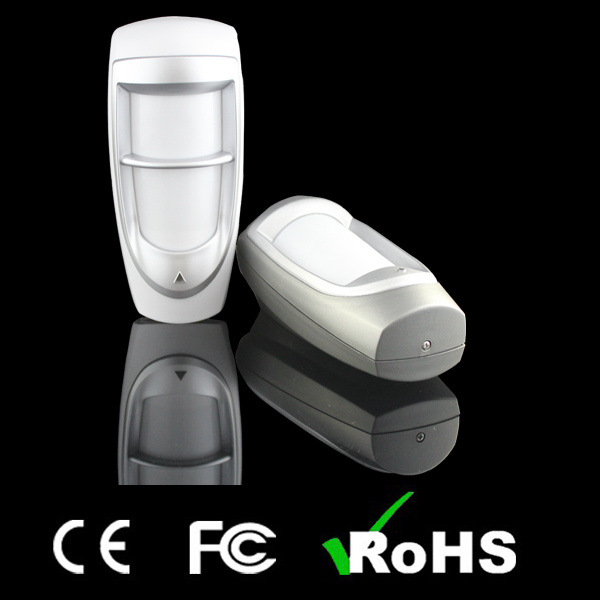

Digital Double PIR Detector with IP66 Certificated (Dg85)

Prod Model:	DG-85
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Humidity:	95%
Detection Distance:	11m
Installation Mode:	Wall Mounted
Mounting Height:	2.1m~2.7m
Alarm Indicator:	LED Indiactor
Starting Time:	Electrify 60s

Product Description

Digital Double PIR Detector with IP66 Certificated (Dg85)

Specifications
1 Extremely reliable and false-alarm free
2 Dual optics (2 dual opposed element sensors)
3 Immune to pets weighing up to 25kg

Digital PIR Detector

Specifications
1. Outdoor PIR Detector DG-85
2. IP66 totally waterproof and fireproof
3. Pet immunity up to 25kg
4. LED ON/OFF optional

IP66 CERTIFICATED OUTDOOR PIR DETECTOR DG-85 FEATURES

1.100% waterproof with IP66 certificate
2. With fireproof material case
3. LED on/off optional
4. Ant-tamper function
5. PIR intrusion detector integrating the most advanced security technology
6. It adopts 2 dual PIR sensors with high accuracy, intelligent digital chip, make an accurate judgment of true intruder or other interference that can cause wrong alarm
7. And it is with function of automatic memory of environmental change
8. Prevent effectively the interference caused by a 25 kg past or 10 cats, insect, mouse, birds etc.

Delivery

1. Sample delivey: 3-5 days

2. MOQ: 1 pcs for ready-made;

3.1000pcs customised colors and logos;

Payment terms

1. Sample charge: 100% in advance;

2. Order: 30%deposite, 70%balance in advance; By TT, WESTERN UNION, or CASH

3. If Need the quotation urgently,please call 86-18219207915


Working voltage	DC 9V~16V
Detection distance	11m
Detection angle	90 degree
Mounting	wall mounted
Mounting height	2.1m~2.7m
Type of sensor	Dual Infrared sensor
Operating temperature	-35°C~+50°C(14°F to 122°F)
Environment humidity	≤95%RH(no condensation)
Alarm output	NC
Anti-dismantle switch	100mA/28VDC,NC
Demension	176*85*69mm
