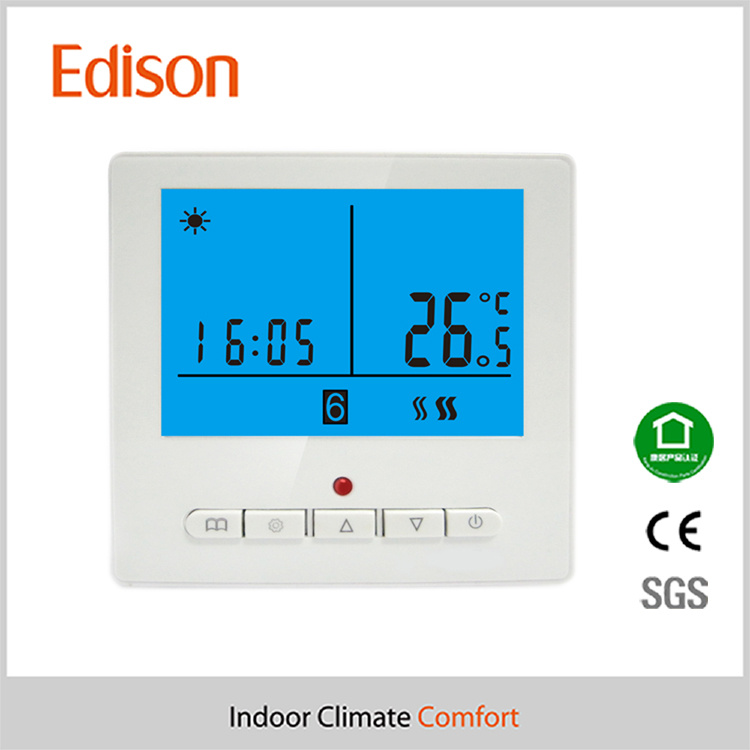

Digital Heating Room Thermostat with Ce Certificate (TX-832-103D2)
| Price: |
Negotiable/Piece |
| Min Order: |
300/Piece |
| Pay Type: |
T/T |
| Prod Model: |
TX-832-103D2 |
| Key: |
Lock Key |
| Appearance: |
White/Black Surface |
| Application: |
Manifold, Boiler, Water Heater, Electric Heater |
| Backlight Display: |
Blue Backlight |
| Model: |
Manual, Time Program/Temporary |
| Guarantee: |
18 Months |
Product Description
Digital Heating Room Thermostat with Ce Certificate (TX-832-103D2) is available for boiler, electric heaters, manifold and underfloor heating system without program control.
Models are with NTC sensor to detect ambient and floor temperature and do the control compared with the setting one.
Eco and Cof mode can be switch any time by press the relevant keys.
De-frost protection function will be active when ambient temperature below 5celsius,Prevent water pipe from freezing and burning.Features:
1.Large digital LCD display with blue backlight
2.On/off output for valve
3.Eco and Cof mode
4.De-frost protection
5.double sensor to control and limit the temp
6.key-lock function
7.Mounted onto standard 86*86mm junction box
8.outside sensor is optional as fittings when order
9.dry contact function:is optional
Technical data:
1.Type:TX-832
2.Application:Manifold, boiler, water heater, electric heater
3.Power supply:90VAC-250VAC,50/60Hz(switching automatically)
4.Setpoint range/Setting unit:5celsius-35celsius/0.5celsius per step
5.Ambient conditions:0celsius-90celsius,Humidity:<95percent
6.Temperature limitation:5celsius-60celsius
7.Temp. Sensor:NTC 10K(25celsius)
8.Switch current rating:3A
9.Control type:On/off control
10.accuracy:±1celsius
11.Enclosure:Fire retardant PC ABS
12.Protection grade:IP20
13.Installation/Dimension:Vertical/86.3*86.3*43.5mm(W*H*D)
14.Temperature correction:-9celsius-9celsius
15.Sensor selection:built-in or out or double is choiced by advanced setting
16.limitation temperature of outside sensor:5celsius-60celsius/1celsius per step
17.Switch deviation bandwidth seting:1celsius-5celsius/0.5celsius per step
18.De-frost protection:on/off by advanced setting
19.program:non-programmable
20.dry contact function direction compare with main loop:company with or opposite
21.dry contact function output delay:0-5mins
22.highest/lowest setpoint(temperature) limit setting:5celsius-90celsius/1celsius per step
23.recover factory setting:available by advanced settingTX-832 is available for electric heaters, manifold equipment of underfloor heating system:

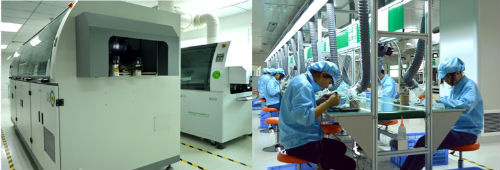

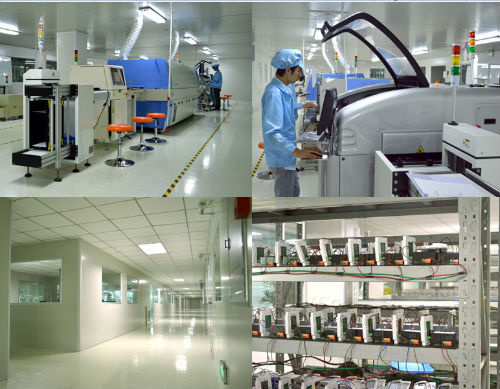

Fully automated production equipment, dust-free workshop and Strict quality inspection:

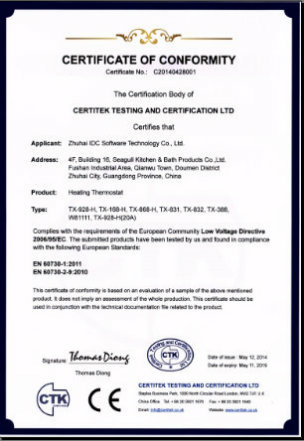

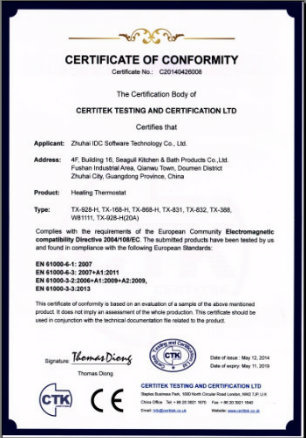

Certificate:
Zhuhai Edison Smart Home Co., Ltd. is a wholly owned subsidiary of Guangzhou Seagull Kitchen and Bath Products Co., Ltd. With the manufacturing base covering an area of 300, 000 square meters, which registered "Edison" trademark in European Union in 2003. In 2010, Edison won the "China Well-known Brand" title, and first passed "National Comfortable Housing Certificate" which was acknowledged by the National Housing and Urban & Rural Construction Ministry. Moreover, Edison won the Excellent Product Award at International high-tech Fair in 2012.
Seagull Group with the registered capital RMB280 Million went public in Shenzhen Stock Exchange A share in 2006. By now, the total asset of Seagull Group is high up to RMB1, 510 Million, its annual sales volume is over 60 million units and constant sales revenue enjoys more than RMB1.2 billion.
Seagull Group as a high-tech enterprise has passed ISO9001 International Quality System Certification and established ISO14001 Environmental Management System & OHSAS8001 Career Health System.
Relying on the solid technology and the production capability of Seagull Group in casting of copper alloys, forging, machining, plating, electronics & communication and other fields, Edison has developed many series of HVAC control products in the past decade and obtained the professional certificate in Europe, America and Australia etc. Thereby Edison keeps the leading position in the domestic HVAC industry. Edison focused on developing HVAC energysaving, water saving, environmental products and invested a huge sum of money to supply under floor heating, radiator, intelligent control system of air conditioning, integration system of heating measurement & temperature, and the corresponding accessory products in comfortable household product field characterized at thermostatic, constant moisture & constant oxygen to meet a variety of individual demand of the government and the market. Among them, Heat Metering and Temperature control system and the Time On/Off & Area Metering System have been cognized by both the government and industry in the northeast, north China and northwest regions.
Edison stresses independent research & development and has obtained numbers of technology patent. To meet customer's individual demand through rapid response, Edison is anticipated to achieve a win-win situation of common development for both the company and customer.
Edison adhering to steady development -- "be honest, hardworking, loving and do not take shortcuts".
We will continue to work hard to create a comfortable environment for sustainable development of society, focusing on the integration of comfortable home systems and HVAC energy saving, and serving the community.
Edison has obtained more than 40 invention patents and utility patents in the field of HVAC control and zigbee technology, and achieved related professional certifications in Europe, America, Australia and other countries.
