| Prod Model: |
MPM460W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
0~1...200m |
| Accuracy: |
+-0.25%Fs(Typ.) |
| Long Term Stability: |
<=+-0.5%Fs/Y |
| Overpressure: |
1.5 Times Fs |
| Media Temperature: |
-10~80c |
| Storage Temp: |
-40~125celsius |
| Protection: |
IP68 |
| Housing: |
Aluminium Alloy |
| Diaphragm: |
Stainless Steel |
| Diaplay: |
LED |
Product Description

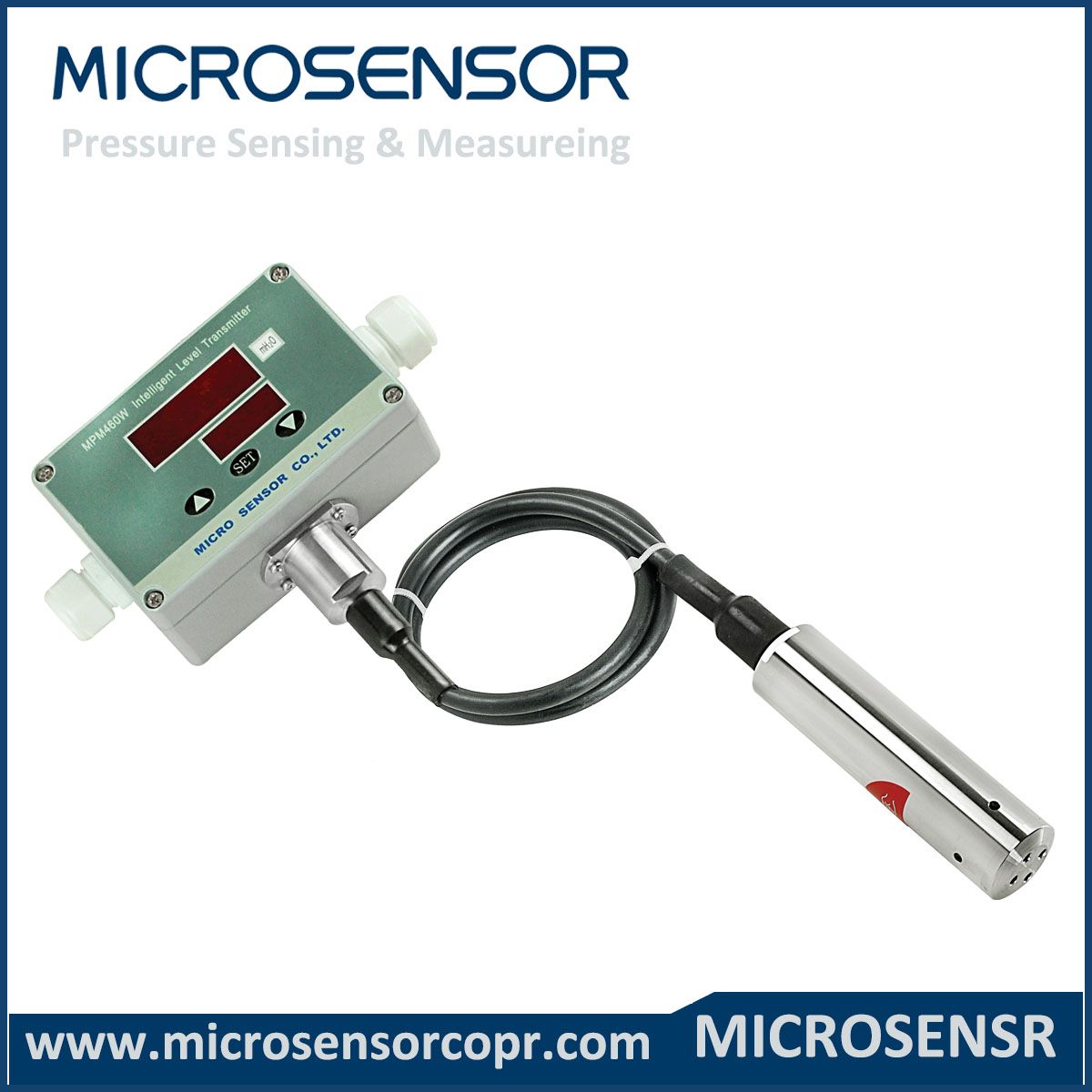

Digital Hydraulic Level transmitter controller Mpm460W
Features:
1.Wireless transmitting;
2.High accuracy;
3.IP68;
4.Easy operation;
5.Optional pressure port;
6.LED display
Applications:
1.Chemical industry;
2.Ocean;
3.Aviation;
4.Metallurgy;
5.Drainage;
6.Science
Specifications:
| MPM460 | Pressure range: gauge -0.10~0.01100MPa
Overpressure: 1.5 time FS or 110MPa(min.value is valid) |
| MPM460W | Pressure range: gauge 0~1200mH2O
Overpressure: 1.5 times FS Sensor part housing protection: IP68 |
| MDM460 | Pressure range: differential pressure 0~35kPa3.5MPa
Static pressure: ≤20MPa |
Output signal: analog 4~20mADC, 0~10/20mADC or 0/1~5VDC; digital RS485
Accuracy: +0.25%FS(typ.); +0.5%FS(max.) including analog output's lin.,rep. and hys.
Zero temp.drift: +0.03%FS/ºC(≤100kPa) +0.02%FS/ºC(>100kPa)
FS temp.drift: +0.03%FS/ºC(≤100kPa) +0.02%FS/ºC(>100kPa)
Long-term stability: ≤+0.5%FS/year
Relay quantity: 1~5
Load: 240V/5A(AC)or 30V/5A(DC)
Relay life: >100000 times
Indicator: 4 digit 0.56 inch LED digit indicator; display range: -1999~9999
4 digit 0.36 inch LED situation display indicator
Power supply: 220VAC±15% or 220VDC or 24VDC
Max.consumption: ≤3.5W
Environment temp.: -10ºC~60ºC Frequency: 0~300Hz
Media temp.: -10ºC~80ºC Acceleration: ≤3×9.81ms-2
Storage temp.: -40ºC~125ºC Impact: ≤10×9.81ms-2
Pressure port: stainless steel 1Cr18Ni9Ti Diaphragm: stainless steel 316L
Electronic housing: aluminum-alloy Sealing: Viton or full-welded
Pressure port: Optional
Order guide:
| MPM460 | Multi-functional Intelligent Pressure Transmitting Controller |
| MPM460W | Multi-functional Intelligent Level Transmitting Controller |
| MDM460 | Multi-functional Intelligent Differential Pressure Transmitting Controller |
| | | Range | Pressure range: mH2O, kPa or MPa |
| [0~XmH2O]Lm | Level | 0~1200mH2O, X=actual measuring level, L=cable length(unit: m) |
| [0~X]kPa or MPa | Pressure | -0.10~0.01100MPa, X=actual measuring pressure |
| Differential pressure | Pressure
(kPa) | Overpressure kPa | Pressure
(kPa) | Overpressure kPa |
| + | - | + | - |
| 0~35 | 70 | 35 | 0~700 | 1400 | 700 |
| 0~70 | 150 | 70 | 0~1000 | 2000 | 1000 |
| 0~100 | 200 | 100 | 0~2000 | 4000 | 1000 |
| 0~200 | 400 | 200 | 0~3500 | 7000 | 1000 |
| 0~350 | 700 | 350 | |
| | | Code | Output signal |
| E | 4~20mADC |
| F | 1~5VDC |
| J | 0~5VDC |
| Q | 0~10mADC |
| U | 0~20mADC |
| R4 | RS485 interface |
| | | Code | Construction material |
| Diaphragm | Pressure port | Housing |
| 22 | SS 316L | SS | Aluminum-alloy |
| 24 | SS 316L | SS 316L | Aluminum-alloy |
| 25 | Tantalum | SS | Aluminum-alloy |
| 35 | Tantalum | Hastelloy C | Aluminum-alloy |
| | | Code | Others |
| C1 | M20×1.5 male, face type seal | Only MPM460 |
| C3 | G1/2 male |
| C4 | G1/4 female | Only MDM460 |
| C5 | M20×1.5 male, waterline seal | Only MPM460 |
| G | Gauge |
| A | Absolute |
| S | Sealed gauge |
| PC1 | Flush diaphragm, M20×1.5 male |
| PC3 | Flush diaphragm, G1/2 male, |
| Jn | Relay quantity, n=1~5 |
| V1 | Power supply 24VDC |
| V2 | Power supply 220VAC |
| F1 | Fixed flange | Only MPM460W |
| | | |
| MPM460 [0~200]kPa F 22 C3AJ1V1 the whole spec |
| | | | | | | | | | | | | | | | | | | |
