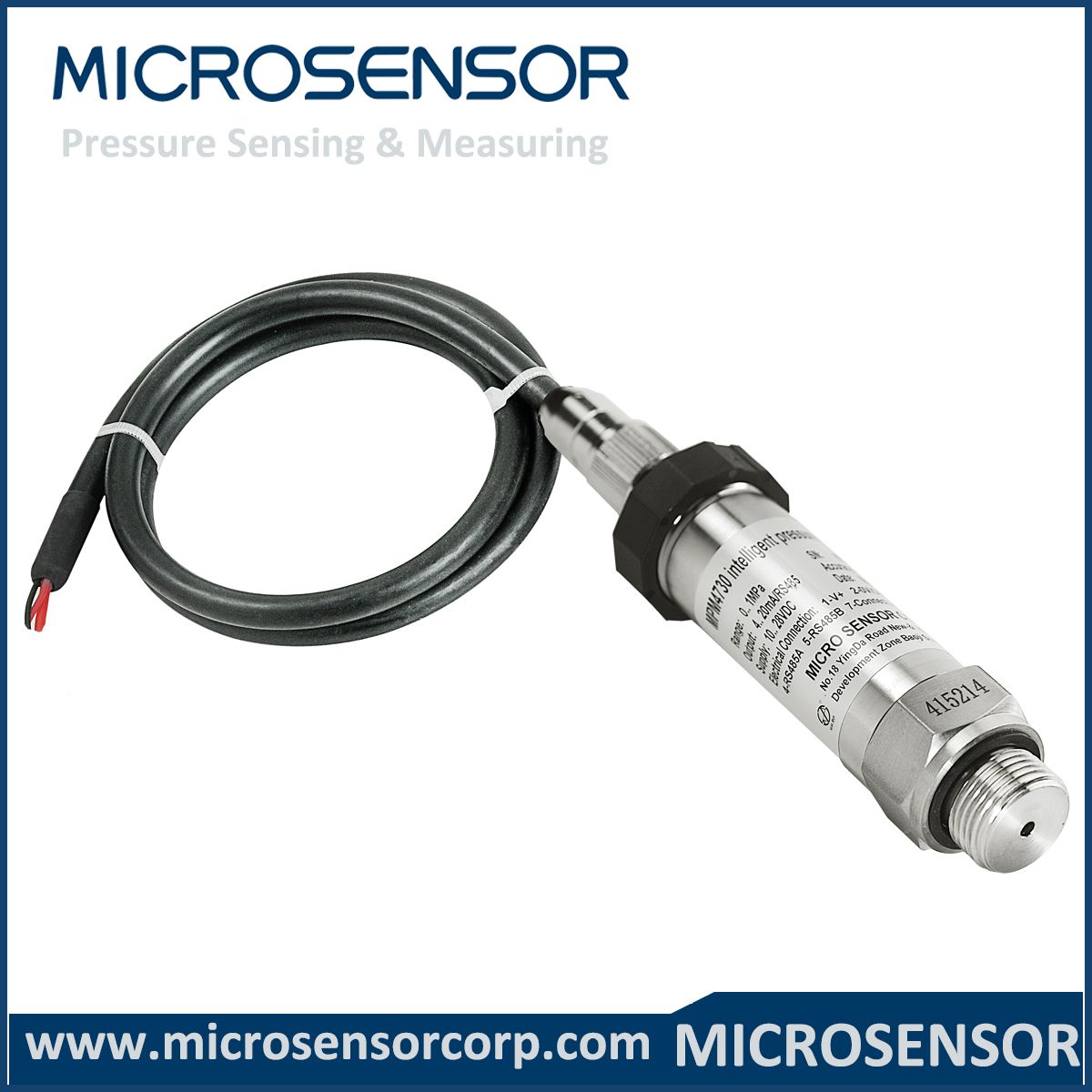

Digital Intelligent Pressure Transmitter (MPM4730)

Name: Digital Intelligent Pressure Transmitter (MPM4730)
Brand: all-electronics-online.com
SKU: 741185345
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM4730
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1...0~0.01...100MPa
Accuracy:	0.15%Fs(Typ.)
Keyword:	Digital Pressure Transmitter
Pressure Type:	Gauge,Absolute Gauge,Sealed Gauge
Digital Signal:	RS485, Hart
Analog Signal:	4~20madc
Protection:	IP65(B1,B2) IP63(B3)
Certificate:	RoHS, ISO
Compensated Temperature:	-10~80c
Weight:	~160g

Product Description

Digital Intelligent Pressure Transmitter MPM4730

Features:
1. Full stainless steel;
2. RS485/HART communicator;
3. Custom-desigh available;
4. Netting available;
5. Compact size;
6.Light weight;
7. Digital wider temperature;

Certificate:
1.RoHS;
2.Exia IIBT6 Ga;
3.CCS
4.ISO

Application:
1.Precise measurement;
2.Flow pressure;
3.Chemical industry;
4.Water

Specifications:

Basic range(MPa)	-0.1	0.1	0.2	0.35	0.7	1.0	2.0	3.5	7	10	20	35	60	100
Overpressure (MPa)	-0.1	0.15	0.3	0.5	1.0	1.5	3.0	5.0	10	15	30	50	90	110
Note: the min.shrinked available pressure range is 1/5 of basic range; For the pressure range between min.range and max.range, but not indicated in the above table, we enlarge the above basic pressure range to produce (overpressure unavailable);

Total accuracy	±0.075%FS(min.) ±0.15%FS(typ.) ±0.25%FS(max.)
Stability	±0.2%FS/year
Compensated temp.	(-10~80)ºC
Operation/storage temp.	(-40~80)ºC
Power supply	(10~28)VDC(RS485)/(12~30)VDC(HART)
Output	(4~20)mADC
Output	RS485/HART(optional)
Load	(4~20)mADC output,(U-10V/12V)/0.02A(Ω)
Load	RS485 bus line could connect with 99 transmitters
Electric connection	DIN43650 4-pin plug(RS485 socket inside)
	7-pin plug(for RS485 interface output at local place)
	Φ7.2mm shielding cable
Insulation	100MΩ/50V
Shock	20g,(20~5000)Hz
Impact	20g,11ms
Protection	IP65(B1,B2) IP63(B3)
Media compatibility	Diaphragm: SS 316L
	Housing: SS 1Cr18Ni9Ti
	O-ring: Viton
Weight	~160g

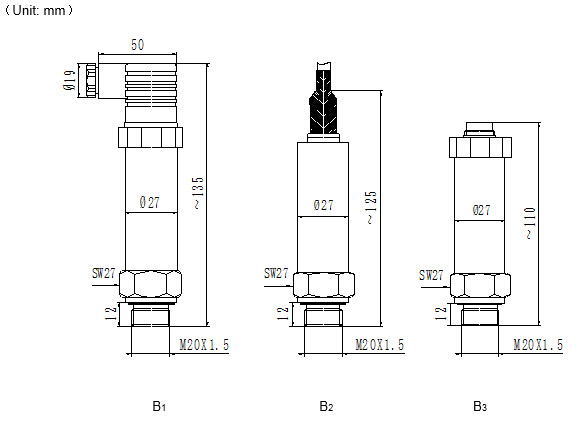

Outline Construction:

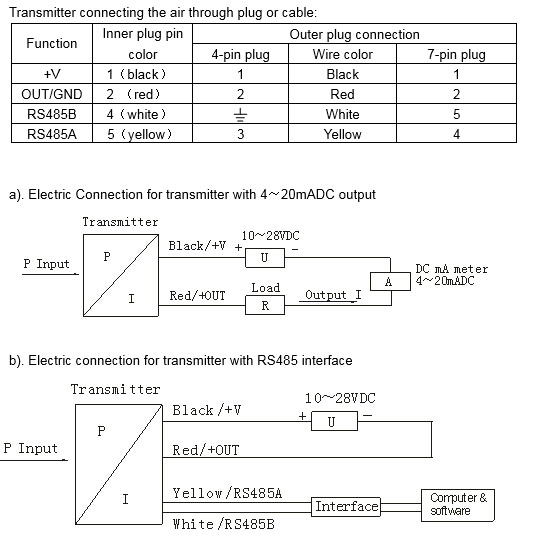

Electric Connection:

Micro Sensor Co., Ltd, the leading manufacturer of piezo-resistive pressure sensors and transmitters in China, was founded by Sino-US joint venture in 1993. We are providing pressure sensing & measuring solutions to customers all over the world.

With Digital Wide-Temperature Compensation, Non-linearity Correction and Data-Collection by Bus Operation, we supply users OEM pressure sensors, pressure transmitters, level transmitters, measuring and controlling instruments, which have high quality and reliable performance in the local on-site environment.

Based on more than 20 years production experiences, Micro Sensor now have manufacturing capacity of 1.2 million pieces pressure sensors and 400 thousand pieces transmitters in one year. And we are also capable to satisfy the customized specification and designs according to clients' Specified requirements.

Quality is the life of company. Micro Sensor executes I S O 9 0 0 1 International Management System strictly to make sure every procedure qualified in our production. Furthermore, the main products for pressure sensors and transmitters, are also certificated by C E, R o H S, C B, U L and A T E X respectively for different global markets.

Micro Sensor now does business with customers more than 70 countries. More and more global friends know Micro Sensor and make win-win cooperation with us. Wherever you are, whenever you are, find Micro Sensor for any pressure sensing & measuring question. We are looking forward to supporting you with our best services!
