| Prod Model: |
TX-168-222D-N3 |
| Voltage: |
220V |
| Setting Temp: |
10-30 Celsius |
| Mode: |
Heating and Colling |
| Fan Speed: |
H/M/L/Auto |
| Sensor Element: |
Ntc 25 Celsius C/10k |
| Ambient: |
Temp:0-50 Celsius C Humidity<95% |
| Installation: |
Vertical |
| Shell Material: |
ABS Flameproof Plastic |
| Suitable Valve: |
2-Line or 3-Line |
| Suitable System: |
2-Pipe |
Product Description
Digital LCD Room Thermostat (TX-168-222D-N3) have standard RS-485 Modbus RTU communicating protocol, is widely applied in heating,ventilating and air-conditioning system (HVAC) for commercial,industrial and residential buildings, working with different types of FCUs and motorized valves(2 way / 3 way or 2-wires / 3-wires).
TX-168 are standalone digital thermostat with LCD display. Designed for control fan speed, temperature, and on/off the valve in fan coil unit system.Occupancy function is optional:Save energy automatically by occupancy detection Occupancy sensor determines whether the person has left the room or if they are occupying the room. F guest is occupying the room can do setting according to demand when left then enter energy saving mode automatically The thermostat has 10 60 minutes output delay optional dry contact output can be compatible with most occupancy sensor.
Locked by remote controller is optional:Use advanced customized remote controller can realize both remote control and special management Manager can do remote lock and un lock to thermostats One can control multiple suggest come with at least 2 PCS per floor to make sure effective management
Descriptions:1. Nice appearance: Large LCD screen with blue backlight
2. Wiring box: 86mm*86mm
3. High precision & reliable work performance
4. Industrial standard, environmental friendly
5. Easy to operate TX-1008 remote controller is optional
6. CE approval
7. Applied for fan coil unit
8. Remote control and key lock is optional
Specification Date:| Application | 2-pipe |
| Suitable Valve | 2-Line or 3-Line |
| Voltage | 220V |
| Setting Temp | 10-30 ºC |
| Mode | Heating and Colling |
| Fan Speed | H/M/L/Auto |
| Sensor Element | Ntc 25ºC C/10k±10% |
| Ambient | Temp:0-50 ºC Humidity<95% |
| Installation | Vertical |
| Shell Material | ABS Flameproof Plastic |
| Suitable Valve | 2-Line or 3-Line |
| Appearance | White/silver surface |
| Energy saving | Occupancy function |
| Current | 3A |
| Sensor | NTC10K |
| Backlight | Blue |
| Junction box | 86*86mm |
| Power box | Divided/all-in-one |
| Certification | CE |

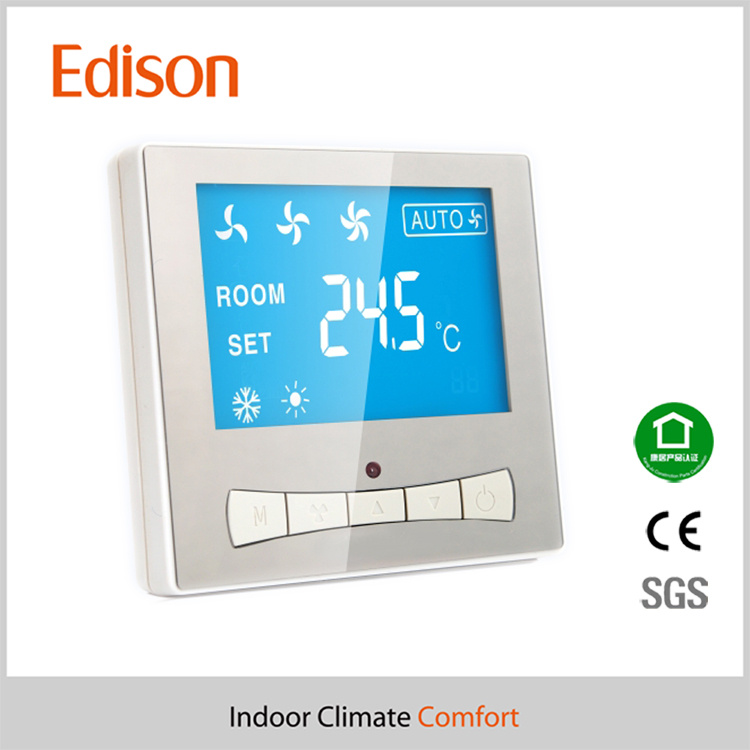

White or silver surface can be available:

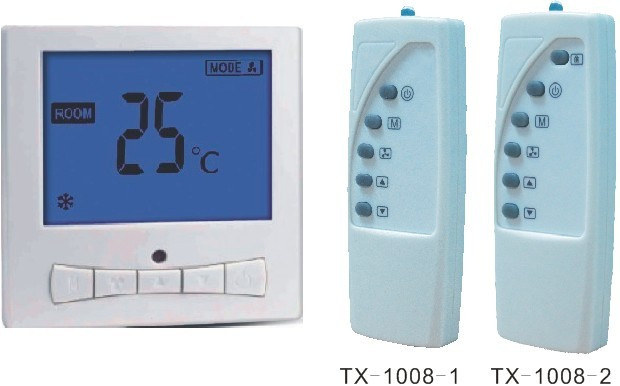

With remote controller or With remote lock can be available and is optional:

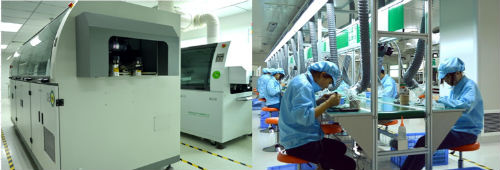

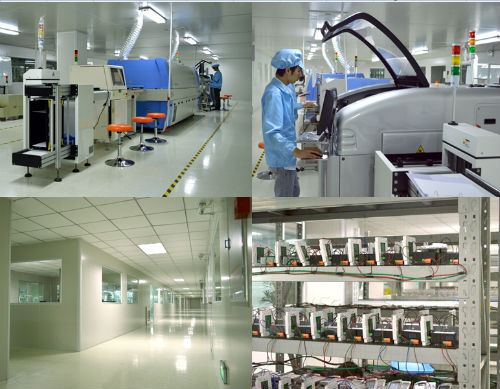

Fully automated production equipment, dust-free workshop and Strict quality inspection:

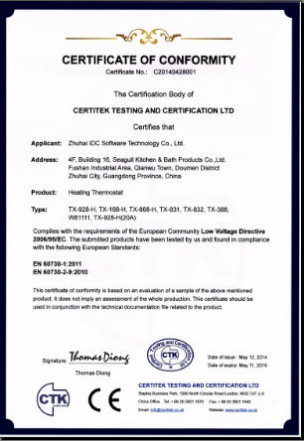

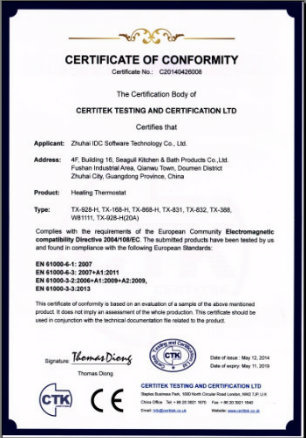

Certificate:
Zhuhai Edison Smart Home Co., Ltd. is a wholly owned subsidiary of Guangzhou Seagull Kitchen and Bath Products Co., Ltd. With the manufacturing base covering an area of 300, 000 square meters, which registered "Edison" trademark in European Union in 2003. In 2010, Edison won the "China Well-known Brand" title, and first passed "National Comfortable Housing Certificate" which was acknowledged by the National Housing and Urban & Rural Construction Ministry. Moreover, Edison won the Excellent Product Award at International high-tech Fair in 2012.
Seagull Group with the registered capital RMB280 Million went public in Shenzhen Stock Exchange A share in 2006. By now, the total asset of Seagull Group is high up to RMB1, 510 Million, its annual sales volume is over 60 million units and constant sales revenue enjoys more than RMB1.2 billion.
Seagull Group as a high-tech enterprise has passed ISO9001 International Quality System Certification and established ISO14001 Environmental Management System & OHSAS8001 Career Health System.
Relying on the solid technology and the production capability of Seagull Group in casting of copper alloys, forging, machining, plating, electronics & communication and other fields, Edison has developed many series of HVAC control products in the past decade and obtained the professional certificate in Europe, America and Australia etc. Thereby Edison keeps the leading position in the domestic HVAC industry. Edison focused on developing HVAC energysaving, water saving, environmental products and invested a huge sum of money to supply under floor heating, radiator, intelligent control system of air conditioning, integration system of heating measurement & temperature, and the corresponding accessory products in comfortable household product field characterized at thermostatic, constant moisture & constant oxygen to meet a variety of individual demand of the government and the market. Among them, Heat Metering and Temperature control system and the Time On/Off & Area Metering System have been cognized by both the government and industry in the northeast, north China and northwest regions.
Edison stresses independent research & development and has obtained numbers of technology patent. To meet customer's individual demand through rapid response, Edison is anticipated to achieve a win-win situation of common development for both the company and customer.
Edison adhering to steady development -- "be honest, hardworking, loving and do not take shortcuts".
We will continue to work hard to create a comfortable environment for sustainable development of society, focusing on the integration of comfortable home systems and HVAC energy saving, and serving the community.
Edison has obtained more than 40 invention patents and utility patents in the field of HVAC control and zigbee technology, and achieved related professional certifications in Europe, America, Australia and other countries.
