Digital Room Temperature Controller (W81111)
Price: |
Negotiable/Piece |
Min Order: |
300/Piece |
Pay Type: |
T/T |
Prod Model: |
W81111 |
Voltage: |
220V |
Color: |
White/Black Surface |
Application: |
Manifold, Boiler, Water Heater, Electric Heater |
LCD: |
Touch Screen with Blue Backlight Display |
Current: |
3A/16A |
Guarantee: |
18 Months |
Product Description

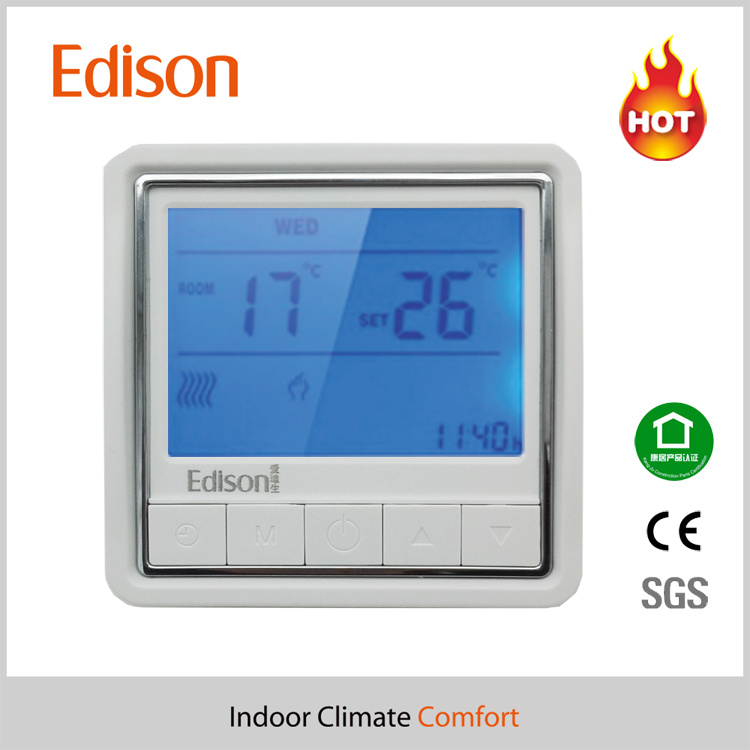

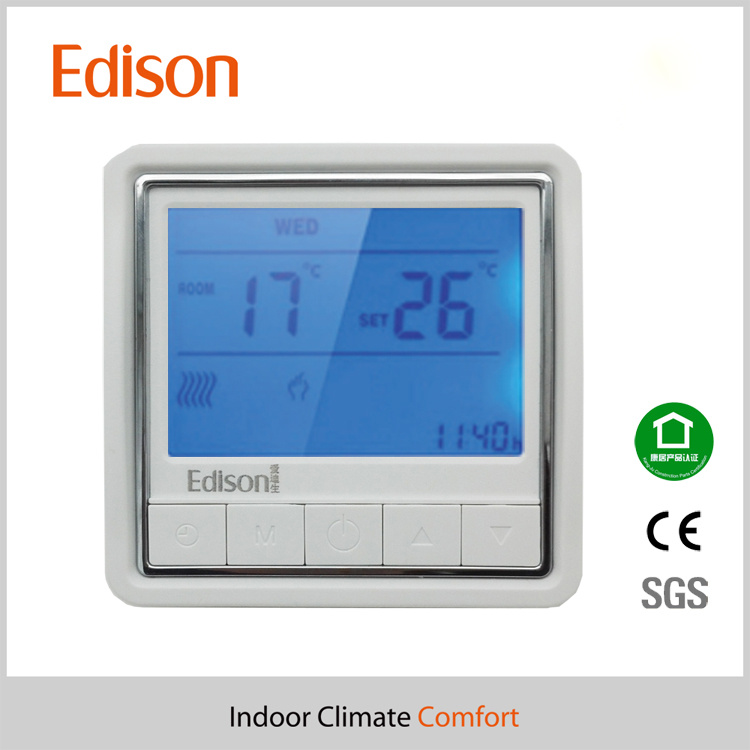

Digital room temperature controller heating room thermostat (W81111)
Professional temperature controller room thermostats manufacturer
W81111 digital programmable room thermostat series are available for Boiler, electric heaters, manifold and underfloor heating system with 7-day,6-period time program control
The models are with NTC sensor to detect ambient and floor temperature and do the control compare with the setting ones.
Manual, time program and temporary mode can be switch any time by press the relevant keys.
Double sensors function, can do both ambient and heating devices temperature sensing to power on/off the devices to make sure them working under reasonable status for more safety, reliability and energy saving.
Features:
·Large digital LCD display with blue backlight
·De-frost protection
·Manual, time program and temporary model
·7day, 6-period time program
·Double sensor to control and limit the temperature
·Key-lock function
·Mounted onto standard 86*86mm junction box
·On/Off output for valve
Technical data:Type | W81111 |
Application | Boiler, manifold, electric heater, water heater |
Power supply | 120VAC ~ 240VAC, 50 ~ 60HZ (switching automatically) |
Set point range/setting unit | 5 ~ 35°C / 1°C per step |
Ambient conditions | 0 ~ 50°C, Humidity: <95% |
Temperature limitation | 5 ~ 60°C |
Temperature Sensor | NTC 10K (25°C) |
Switch current rating | GA:3A for water heating; GB: 16A for electric heating |
Control type | On/off control |
Accuracy | ±1°C |
Enclosure | Fire retardant PC ABC |
Timer tolerance | < 1% |

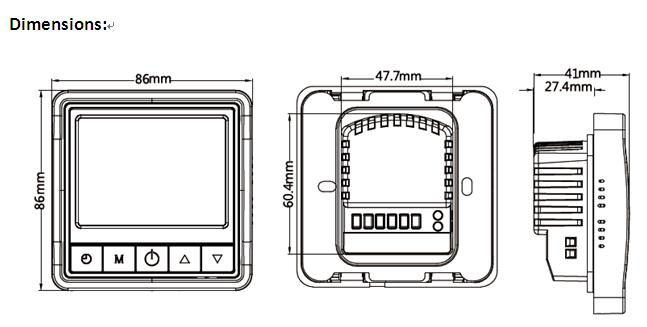

Installation/Dimension | Vertical/86*86*18mm(W*H*D) |

CE Certification:

About USCompany Introduction
Zhuhai Edison Smart Home Co., Ltd.(Stock Code: 837831) is a wholly owned subsidiary of Guangzhou Seagull Kitchen and Bath Products Co., Ltd (Stock Code: 002084).
Edison is devoting to R & D to manufacture and trade for room thermostats and valves series in the heating control, AC Control and smart home control products, which has obtained more than 40 invention patents and utility patents in the field of HVAC control and wifi, zigbee wireless technology, and achieved related professional certifications in Europe, America, Australia and other countries.
Edison adhering to steady development -- "be honest, hardworking, loving and do not take shortcuts". The freedom to chase our individual dream through our sweat, toil, imagination and creativity. And the imperative to strive together as well, to achieve a common good, a great good with our customers and suppliers.
Edison Focus on " Comfort and Energy Conservation"

TECHNOLOGY & QUALITY
High Quality Originates from High Standards.

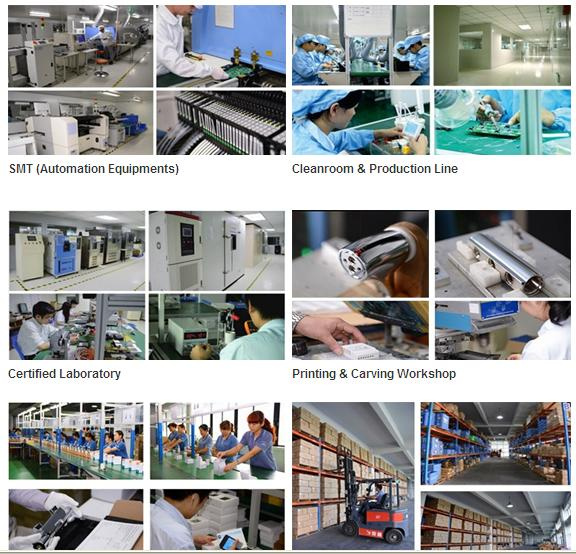

From raw material forming, brass casting, forging, zinc die casting, CNC machining, plating, calibration, SMT and electronic products assembling in a Class 100,000 cleanroom, Edison has full range of European industrial standard production processes in house, and we are aiming to provide competitive quality products with 100% on time in full delivery service
